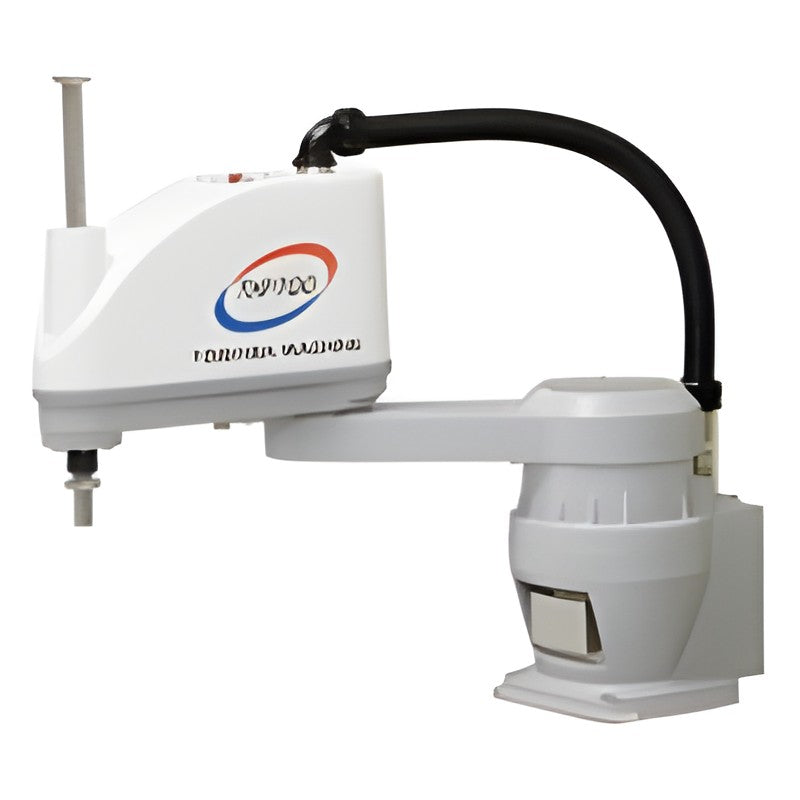

Toshiba THP Series High-Speed SCARA Robots (550/700mm)

Toshiba Machine THP550 and THP700 are high-speed, high-cycle SCARA robots for pick-and-place lines, with standard cycle times down to 0.29 s. They pair with the TS3000 and TS3100 controllers.

Key features

High-cycle SCARA for fast pick-and-place
Standard cycle time 0.29 s (THP550) and 0.345 s (THP700)
Composite speed up to 7.8 m/s
Absolute position detection
Options: 300 mm Z stroke, bellows, ceiling mount, cleanroom, safety category 3

Specifications

Type	Horizontal multi-joint (SCARA)
Controlled axes	4
Arm length	550 / 700 mm
Z-axis stroke	150 mm (300 mm option)
Max payload	2 kg / 10 kg
Positioning repeatability	+/-0.03 mm XY (THP700)
Controller cable	5 m (max. 25 m option)
Controller	TS3000 (THP550), TS3100 (THP700)
Source	Toshiba Machine TH Series SCARA Robot catalogue (TH0039-CEC-07)

THP550		Reach: 550 mm \| Z stroke: 150 mm \| Payload: 2 kg \| Cycle: 0.29 s
THP700		Reach: 700 mm \| Z stroke: 150 mm \| Payload: 10 kg \| Cycle: 0.345 s

SCARA RobotsToshiba

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Toshiba THP Series High-Speed SCARA Robots (550/700mm)

Brand Toshiba·SCARA Robots

Available part numbers (2)

THP550, THP700
