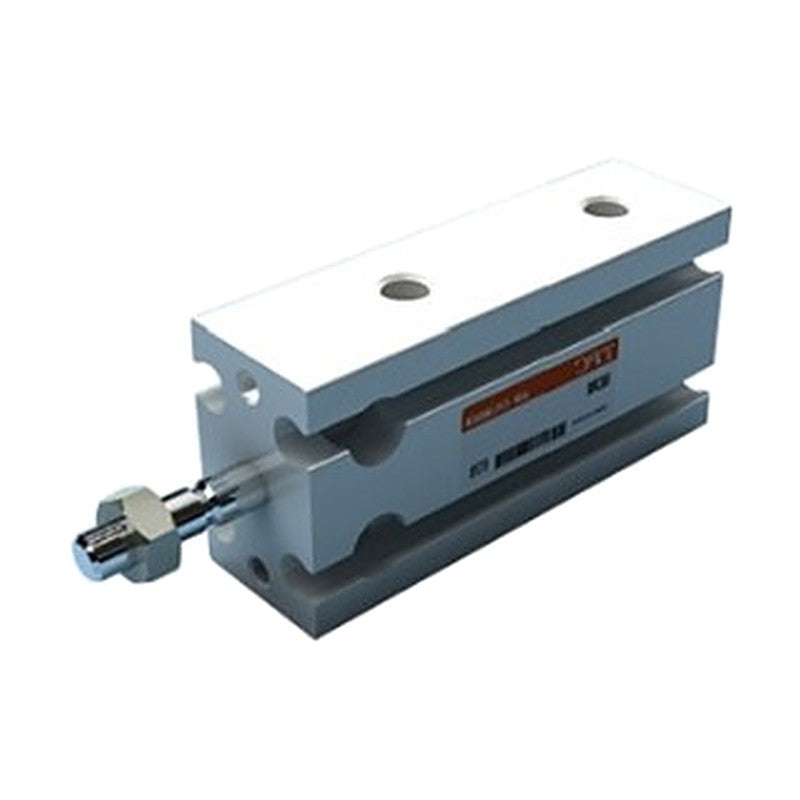

TPC Mechatronics 5L-NDM Series Long-Life Direct Mount Cylinder (Double Acting, Single Rod)

TPC Mechatronics 5L-NDM Series Long-Life Direct Mount Cylinder (Double Acting, Single Rod)

The 5L-NDM series is a premium long-life version of the NDM double-acting, single-rod direct mount cylinder in bore sizes 10, 16, 20 and 25 mm.

Key features

  • A special grease, wear-resistant special packings and a lubricant-retaining design are rated for more than five times the service life of the standard product under the maker's test conditions, cutting maintenance frequency
  • External dimensions are the same as the standard NDM series, and side-load resistance is reinforced
  • Magnet-equipped versions accept W8/W9/W20 auto switches
  • It operates on compressed air from 0.05 to 0.7 MPa with rubber cushions, no lubrication and 5 to 60 C ambient temperature

Specifications

Acting Double acting, single rod
Proof pressure 1.05 MPa
Operating pressure 0.05-0.7 MPa
Piston speed 50-500 mm/s
Cushion Rubber
Lubrication Not required
Ambient/fluid temperature 5-60 C
Stroke tolerance 0 to +1.0 mm
5L-NDM10 Bore: 10 mm | Acting: Double acting, single rod | Standard strokes: 5-30 mm | Proof pressure: 1.05 MPa | Operating pressure: 0.05-0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Stroke tolerance: 0 to +1.0 mm | Mounting bolt / torque: M3, 1.08 N.m +/-10% | Mass (5 mm stroke): 27 g without magnet, 37 g with magnet
5L-NDM16 Bore: 16 mm | Acting: Double acting, single rod | Standard strokes: 5-30 mm | Proof pressure: 1.05 MPa | Operating pressure: 0.05-0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Stroke tolerance: 0 to +1.0 mm | Mounting bolt / torque: M4, 2.45 N.m +/-10% | Mass (5 mm stroke): 61 g without magnet, 92 g with magnet
5L-NDM20 Bore: 20 mm | Acting: Double acting, single rod | Standard strokes: 5-50 mm | Proof pressure: 1.05 MPa | Operating pressure: 0.05-0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Stroke tolerance: 0 to +1.0 mm | Mounting bolt / torque: M5, 5.10 N.m +/-10% | Mass (5 mm stroke): 113 g without magnet, 146 g with magnet
5L-NDM25 Bore: 25 mm | Acting: Double acting, single rod | Standard strokes: 5-50 mm | Proof pressure: 1.05 MPa | Operating pressure: 0.05-0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Stroke tolerance: 0 to +1.0 mm | Mounting bolt / torque: M5, 5.10 N.m +/-10% | Mass (5 mm stroke): 190 g without magnet, 259 g with magnet
Pneumatic CylindersTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics 5L-NDM Series Long-Life Direct Mount Cylinder (Double Acting, Single Rod)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (4)

5L-NDM10, 5L-NDM16, 5L-NDM20, 5L-NDM25

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
5L-NDM10Bore: 10 mm | Acting: Double acting, single rod | Standard strokes: 5-30 mm | Proof pressure: 1.05 MPa | Operating pressure: 0.05-0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Stroke tolerance: 0 to +1.0 mm | Mounting bolt / torque: M3, 1.08 N.m +/-10% | Mass (5 mm stroke): 27 g without magnet, 37 g with magnet
5L-NDM16Bore: 16 mm | Acting: Double acting, single rod | Standard strokes: 5-30 mm | Proof pressure: 1.05 MPa | Operating pressure: 0.05-0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Stroke tolerance: 0 to +1.0 mm | Mounting bolt / torque: M4, 2.45 N.m +/-10% | Mass (5 mm stroke): 61 g without magnet, 92 g with magnet
5L-NDM20Bore: 20 mm | Acting: Double acting, single rod | Standard strokes: 5-50 mm | Proof pressure: 1.05 MPa | Operating pressure: 0.05-0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Stroke tolerance: 0 to +1.0 mm | Mounting bolt / torque: M5, 5.10 N.m +/-10% | Mass (5 mm stroke): 113 g without magnet, 146 g with magnet
5L-NDM25Bore: 25 mm | Acting: Double acting, single rod | Standard strokes: 5-50 mm | Proof pressure: 1.05 MPa | Operating pressure: 0.05-0.7 MPa | Piston speed: 50-500 mm/s | Cushion: Rubber | Lubrication: Not required | Ambient/fluid temperature: 5-60 C | Stroke tolerance: 0 to +1.0 mm | Mounting bolt / torque: M5, 5.10 N.m +/-10% | Mass (5 mm stroke): 190 g without magnet, 259 g with magnet
