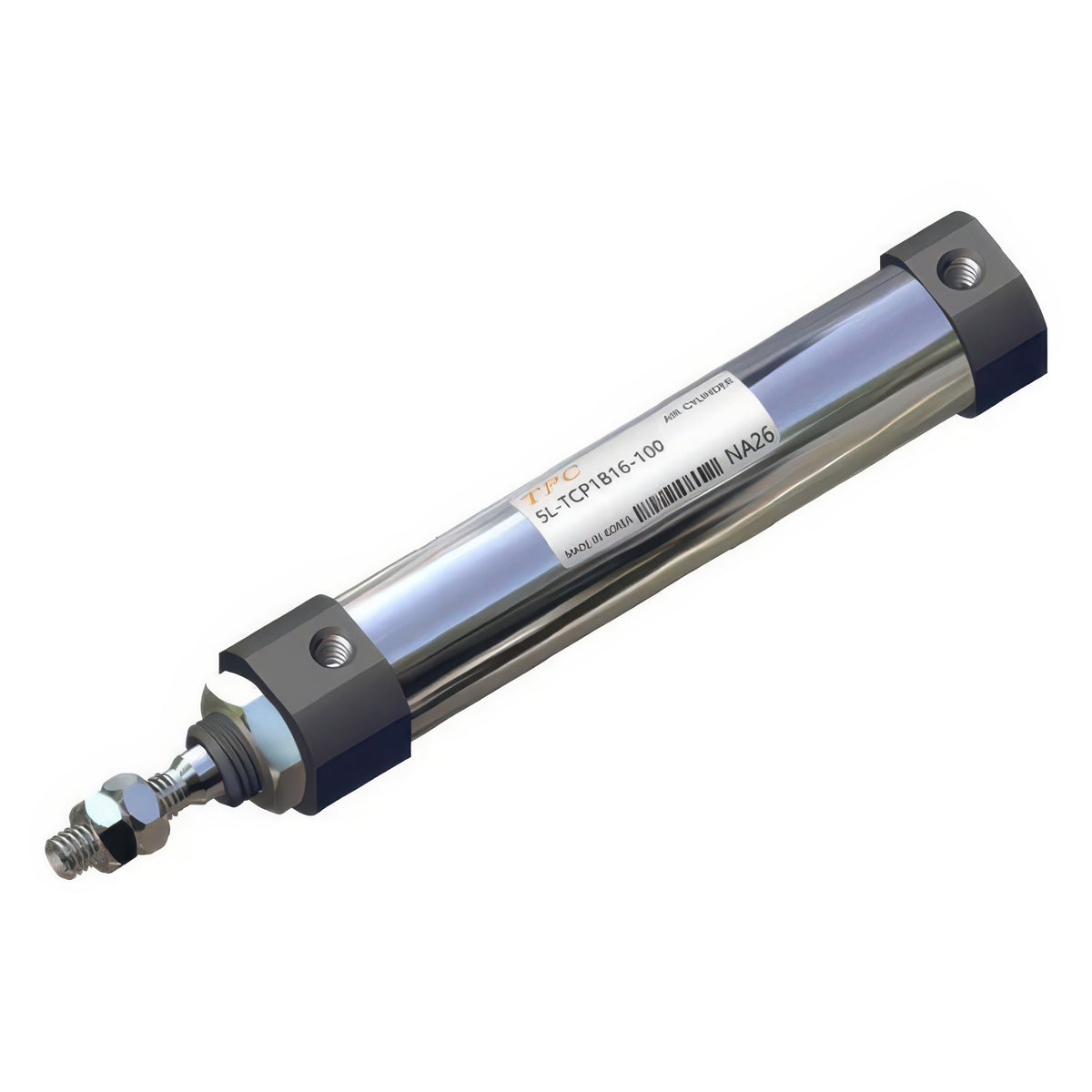

TPC Mechatronics 5L-TCP1 Long-Life Premium Mini Cylinder, Bores 10 and 16 mm

TPC Mechatronics 5L-TCP1 Long-Life Premium Mini Cylinder, Bores 10 and 16 mm

The 5L-TCP1 is the long-life premium version of the TCP1 double-acting mini pneumatic cylinder, here in bores 10 and 16 mm.

Key features

  • A special grease, wear-resistant special packings and a lubrication-retaining device extend service life to five times or more that of the standard product under the maker's test conditions
  • Guide function and side-load resistance are reinforced, and high-speed operation is supported
  • External dimensions match the renewed TCP1; mounting styles are basic (B), axial foot (L), rod flange (F) and double clevis (D)
  • A magnet and rubber cushion are built in
  • Bore 6 mm models are listed separately

Specifications

Port M5x0.8
Acting Double, single rod
Operating pressure 0.06-0.7 MPa (proof 1.05 MPa)
Piston speed 50-750 mm/s
Cushion Rubber cushion (standard)
Magnet built in
Lubrication Not required
Ambient/fluid temperature 5-60 C
5L-TCP1B10 Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: B basic | Acting: Double, single rod | Operating pressure: 0.06-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
5L-TCP1B16 Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: B basic | Acting: Double, single rod | Operating pressure: 0.06-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
5L-TCP1L10 Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: L axial foot | Acting: Double, single rod | Operating pressure: 0.06-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
5L-TCP1L16 Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: L axial foot | Acting: Double, single rod | Operating pressure: 0.06-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
5L-TCP1F10 Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: F rod flange | Acting: Double, single rod | Operating pressure: 0.06-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
5L-TCP1F16 Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: F rod flange | Acting: Double, single rod | Operating pressure: 0.06-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
5L-TCP1D10 Bore: 10 mm | Rod diameter: 4 mm | Rod end thread: M4x0.7 | Mounting thread: M8x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150 mm | Mounting: D double clevis (cover integrated) | Acting: Double, single rod | Operating pressure: 0.06-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
5L-TCP1D16 Bore: 16 mm | Rod diameter: 5 mm | Rod end thread: M5x0.8 | Mounting thread: M10x1.0 | Port: M5x0.8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 75, 100, 125, 150, 175, 200 mm | Mounting: D double clevis (cover integrated) | Acting: Double, single rod | Operating pressure: 0.06-0.7 MPa (proof 1.05 MPa) | Piston speed: 50-750 mm/s | Cushion: Rubber cushion (standard) | Magnet: built in | Lubrication: Not required | Ambient/fluid temperature: 5-60 C
