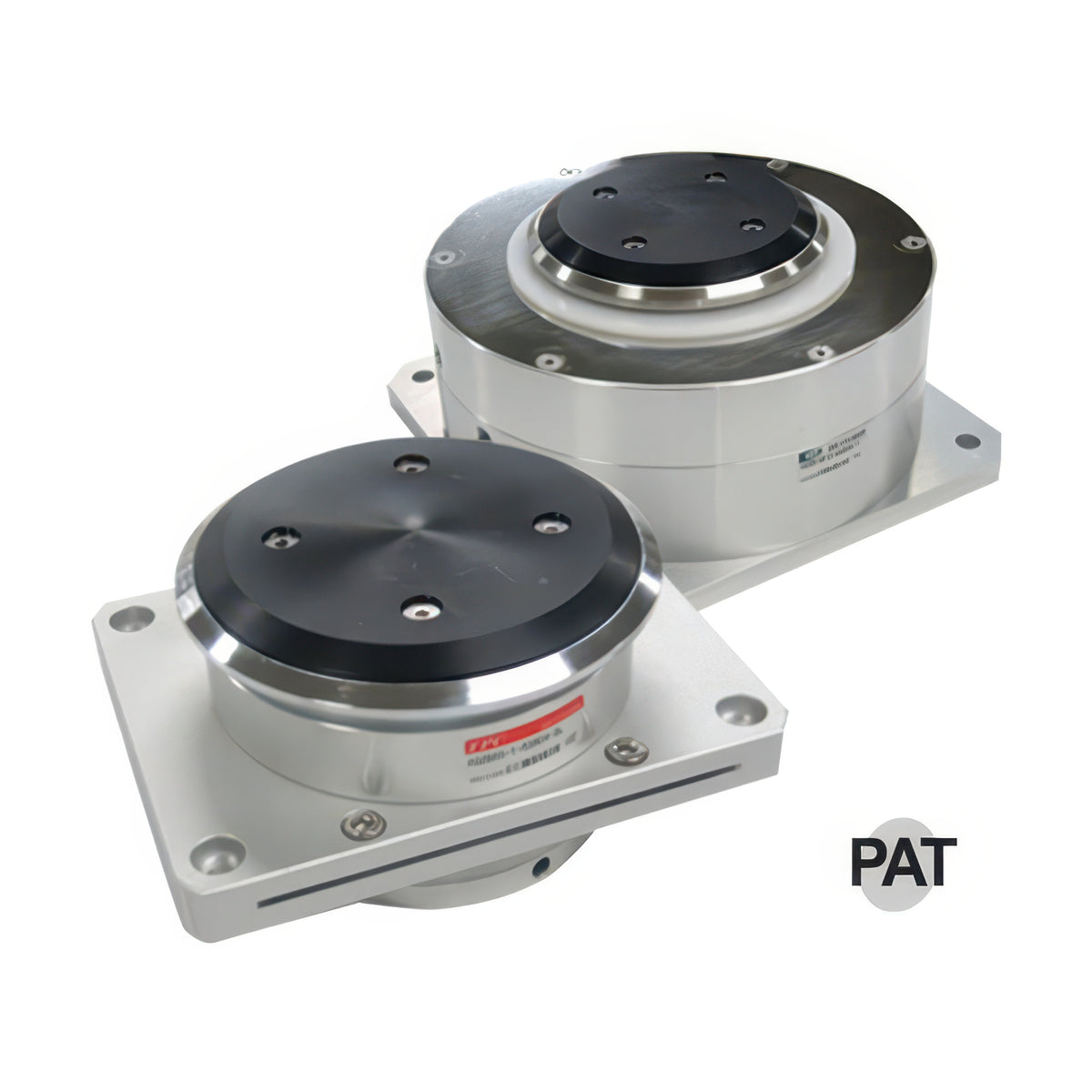

TPC Mechatronics ACU Series Pneumatic Centering Unit (Floating Table Lock)

TPC Mechatronics ACU Series Pneumatic Centering Unit (Floating Table Lock)

The ACU series is a pneumatic centering (floating) unit used to align and lock cassettes or workpieces, in sizes 65, 100 and 130 mm.

Key features

  • The upper table floats horizontally by 15 to 30 mm and returns to center, then is locked when the piston moves down, so the table does not shake
  • A large shaft diameter increases lateral load capacity while locked, and vacuum suppression at the clutch improves return response when unlocked
  • The cylinder tube is integrated into the body for a compact design, the table material can be selected, and a suction port exhausts internal particles
  • A Lock & Lift version (100 and 130 mm) and height spacers are available; operating pressure is 0.2 to 0.87 MPa without lubrication

Specifications

Cylinder stroke 1 mm max
Port size Rc1/8 (lock, unlock, suction)
Operating pressure 0.2-0.87 MPa
Proof pressure 1.3 MPa
Centering repeatability within 0.5 mm dia.
ACU65 Bore: 65 mm | Rod diameter: 50 mm | Acting: Double acting | Cylinder stroke: 1 mm max | Table horizontal stroke (max eccentricity): 15 mm | Max table load: 300 kgf | Locking force: approx. 68 kgf | Port size: Rc1/8 (lock, unlock, suction) | Operating pressure: 0.2-0.87 MPa | Proof pressure: 1.3 MPa | Centering repeatability: within 0.5 mm dia. | Body outer diameter: 99 mm
ACU100 Bore: 100 mm | Rod diameter: 90 mm | Acting: Double acting; Lock & Lift type available | Cylinder stroke: 1 mm max | Table horizontal stroke (max eccentricity): 20 mm | Max table load: 400 kgf | Locking force: approx. 75 kgf | Port size: Rc1/8 (lock, unlock, suction) | Operating pressure: 0.2-0.87 MPa | Proof pressure: 1.3 MPa | Centering repeatability: within 0.5 mm dia. | Body outer diameter: 130 mm
ACU130 Bore: 130 mm | Rod diameter: 120 mm | Acting: Double acting; Lock & Lift type available | Cylinder stroke: 1 mm max | Table horizontal stroke (max eccentricity): 30 mm | Max table load: 500 kgf | Locking force: approx. 98 kgf | Port size: Rc1/8 (lock, unlock, suction) | Operating pressure: 0.2-0.87 MPa | Proof pressure: 1.3 MPa | Centering repeatability: within 0.5 mm dia. | Body outer diameter: 184 mm
Centering UnitsTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics ACU Series Pneumatic Centering Unit (Floating Table Lock)

Brand TPC Mechatronics·Centering Units

Available part numbers (3)

ACU65, ACU100, ACU130

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ACU65Bore: 65 mm | Rod diameter: 50 mm | Acting: Double acting | Cylinder stroke: 1 mm max | Table horizontal stroke (max eccentricity): 15 mm | Max table load: 300 kgf | Locking force: approx. 68 kgf | Port size: Rc1/8 (lock, unlock, suction) | Operating pressure: 0.2-0.87 MPa | Proof pressure: 1.3 MPa | Centering repeatability: within 0.5 mm dia. | Body outer diameter: 99 mm
ACU100Bore: 100 mm | Rod diameter: 90 mm | Acting: Double acting; Lock & Lift type available | Cylinder stroke: 1 mm max | Table horizontal stroke (max eccentricity): 20 mm | Max table load: 400 kgf | Locking force: approx. 75 kgf | Port size: Rc1/8 (lock, unlock, suction) | Operating pressure: 0.2-0.87 MPa | Proof pressure: 1.3 MPa | Centering repeatability: within 0.5 mm dia. | Body outer diameter: 130 mm
ACU130Bore: 130 mm | Rod diameter: 120 mm | Acting: Double acting; Lock & Lift type available | Cylinder stroke: 1 mm max | Table horizontal stroke (max eccentricity): 30 mm | Max table load: 500 kgf | Locking force: approx. 98 kgf | Port size: Rc1/8 (lock, unlock, suction) | Operating pressure: 0.2-0.87 MPa | Proof pressure: 1.3 MPa | Centering repeatability: within 0.5 mm dia. | Body outer diameter: 184 mm
