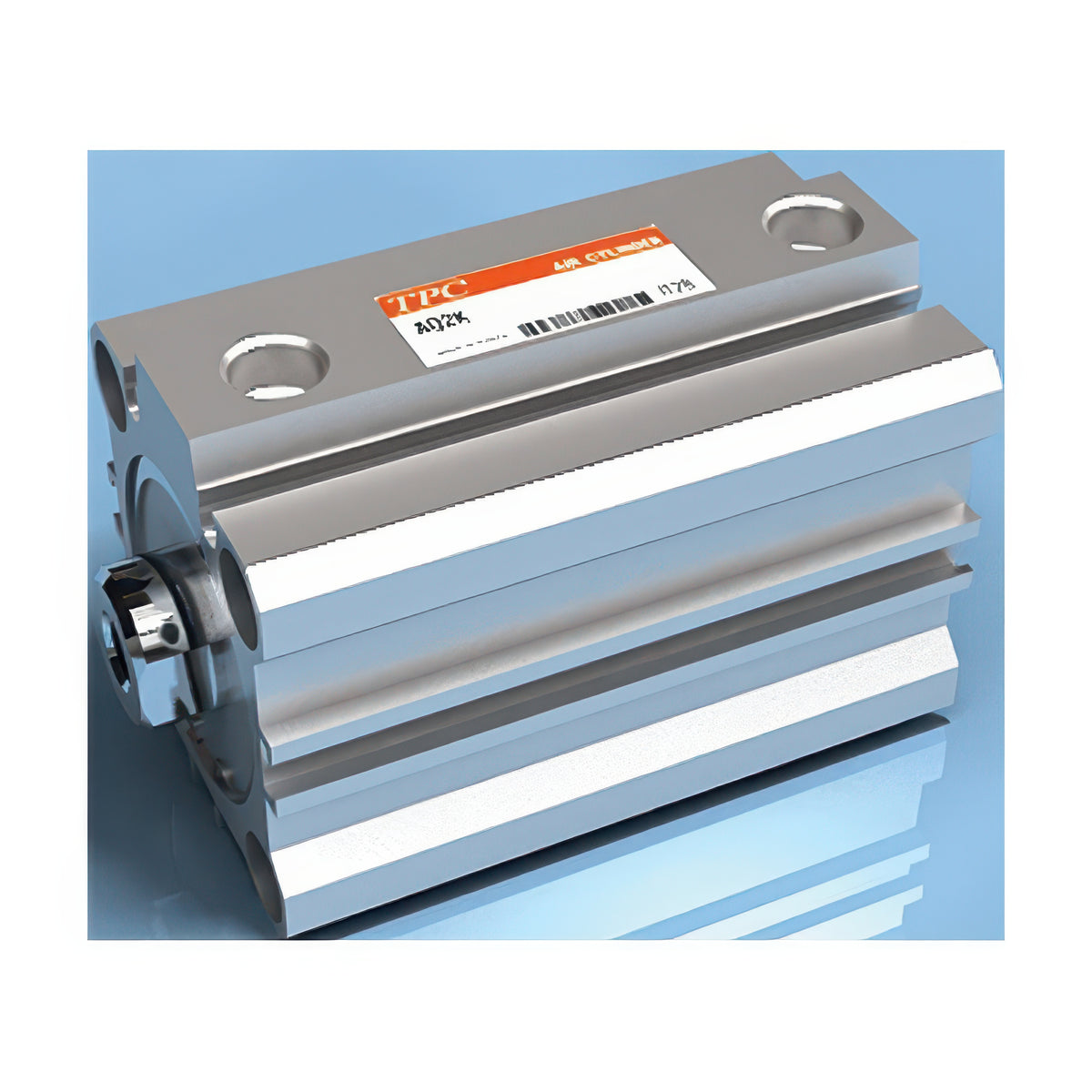

TPC Mechatronics AQ2K / ADQ2K Non-Rotating Rod Compact Cylinder (Bore 32-63 mm)

TPC Mechatronics AQ2K / ADQ2K Non-Rotating Rod Compact Cylinder (Bore 32-63 mm)

The AQ2K series is a double-acting compact cylinder with a non-rotating piston rod, built on the AQ2 square-tube body.

Key features

  • A shaped rod and guide hold rod rotation to within +/-0.8 degrees, so tooling can be fixed to the rod end without extra guides
  • It is available in 32, 40, 50 and 63 mm bores with standard strokes up to 100 mm
  • ADQ2K models have a built-in magnet for miniature auto switches
  • Each listing code is series, mounting and bore; stroke and options are specified when ordering

Specifications

Max stroke 100 mm
Acting Double
Rod non-rotating accuracy +/-0.8 deg
Allowable rotational torque 4.5 kgf-cm
Operating pressure 0.05-1.0 MPa (proof 1.5 MPa)
Cushion none
Piston speed 50-500 mm/s
Temperature -10 to 70 C (no freezing)
AQ2KB32 Bore: 32 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KB40 Bore: 40 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KB50 Bore: 50 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KB63 Bore: 63 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KA40 Bore: 40 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KA50 Bore: 50 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KA63 Bore: 63 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KB32 Bore: 32 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KB40 Bore: 40 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KB50 Bore: 50 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KB63 Bore: 63 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KA40 Bore: 40 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KA50 Bore: 50 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KA63 Bore: 63 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
Pneumatic CylindersTPC Mechatronics
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics AQ2K / ADQ2K Non-Rotating Rod Compact Cylinder (Bore 32-63 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (14)

AQ2KB32, AQ2KB40, AQ2KB50, AQ2KB63, AQ2KA40, AQ2KA50, AQ2KA63, ADQ2KB32, ADQ2KB40, ADQ2KB50 + 4 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AQ2KB32Bore: 32 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KB40Bore: 40 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KB50Bore: 50 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KB63Bore: 63 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KA40Bore: 40 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KA50Bore: 50 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
AQ2KA63Bore: 63 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Without magnet (AQ2K basic type; ADQ2K = built-in magnet) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KB32Bore: 32 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 (M5x0.8 for 5 mm stroke without auto switch) | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KB40Bore: 40 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KB50Bore: 50 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KB63Bore: 63 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = B through-hole | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KA40Bore: 40 mm | Rod diameter: 16 mm (non-rotating) | Port: Rc(PT)1/8 | Standard strokes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KA50Bore: 50 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
ADQ2KA63Bore: 63 mm | Rod diameter: 20 mm (non-rotating) | Port: Rc(PT)1/4 | Standard strokes: 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100 mm | Max stroke: 100 mm | Acting: Double | Mounting: B through-hole (standard), A both-end tapped (Ø40-63), Z through-hole + tapped, D double clevis, F rod flange, G head flange, L foot; this code = A both-end tapped | Built-in magnet for auto switch (ADQ2K) | Rod non-rotating accuracy: +/-0.8 deg | Allowable rotational torque: 4.5 kgf-cm | Operating pressure: 0.05-1.0 MPa (proof 1.5 MPa) | Cushion: none | Piston speed: 50-500 mm/s | Temperature: -10 to 70 C (no freezing)
