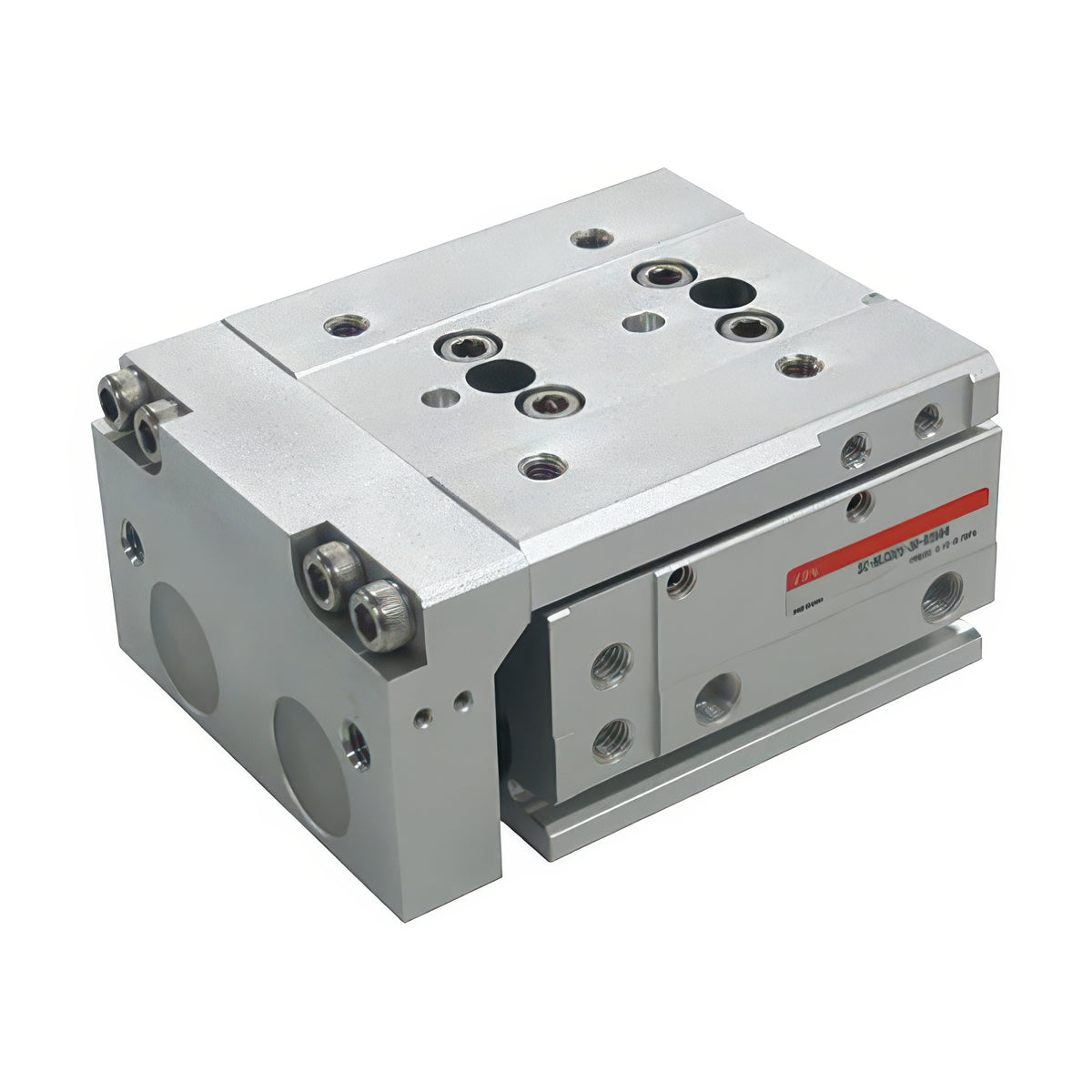

TPC Mechatronics CR/CV-NLCD Clean Table Cylinder

TPC Mechatronics CR/CV-NLCD Clean Table Cylinder

The CR/CV-NLCD is a clean-room version of the NLCD double-rod table cylinder for bores 8, 16, 20 and 25 mm.

Key features

  • CR models have a relief port and CV models a vacuum suction port so particles generated inside the cylinder can be exhausted
  • Clean-room grease minimizes dust generation during operation
  • A built-in magnet allows auto switch mounting, and rubber-damper stroke adjusters can be fitted at the front, rear or both ends

Specifications

Acting Double
Ports M5x0.8 air ports, M5x0.8 relief port
Operating pressure 0.15-0.7 MPa
Proof pressure 1.05 MPa
Speed 50-500 mm/s
Temperature -10 to 60 C
Lubrication not required
CR-NLCD08-10 Bore: 8 mm | Stroke: 10 mm | Overall length LT: 71 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD08-20 Bore: 8 mm | Stroke: 20 mm | Overall length LT: 76 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD08-30 Bore: 8 mm | Stroke: 30 mm | Overall length LT: 87 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD08-40 Bore: 8 mm | Stroke: 40 mm | Overall length LT: 105 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD08-50 Bore: 8 mm | Stroke: 50 mm | Overall length LT: 123 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD08-75 Bore: 8 mm | Stroke: 75 mm | Overall length LT: 173 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD16-10 Bore: 16 mm | Stroke: 10 mm | Overall length LT: 107 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD16-20 Bore: 16 mm | Stroke: 20 mm | Overall length LT: 107 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD16-30 Bore: 16 mm | Stroke: 30 mm | Overall length LT: 107 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD16-40 Bore: 16 mm | Stroke: 40 mm | Overall length LT: 117 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD16-50 Bore: 16 mm | Stroke: 50 mm | Overall length LT: 132 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD16-75 Bore: 16 mm | Stroke: 75 mm | Overall length LT: 182 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD16-100 Bore: 16 mm | Stroke: 100 mm | Overall length LT: 230 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD16-125 Bore: 16 mm | Stroke: 125 mm | Overall length LT: 280 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD20-10 Bore: 20 mm | Stroke: 10 mm | Overall length LT: 121 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD20-20 Bore: 20 mm | Stroke: 20 mm | Overall length LT: 121 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD20-30 Bore: 20 mm | Stroke: 30 mm | Overall length LT: 121 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD20-40 Bore: 20 mm | Stroke: 40 mm | Overall length LT: 131 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD20-50 Bore: 20 mm | Stroke: 50 mm | Overall length LT: 146 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD20-75 Bore: 20 mm | Stroke: 75 mm | Overall length LT: 185 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD20-100 Bore: 20 mm | Stroke: 100 mm | Overall length LT: 238 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD20-125 Bore: 20 mm | Stroke: 125 mm | Overall length LT: 292 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD20-150 Bore: 20 mm | Stroke: 150 mm | Overall length LT: 344 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD25-10 Bore: 25 mm | Stroke: 10 mm | Overall length LT: 133.5 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD25-20 Bore: 25 mm | Stroke: 20 mm | Overall length LT: 133.5 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD25-30 Bore: 25 mm | Stroke: 30 mm | Overall length LT: 133.5 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD25-40 Bore: 25 mm | Stroke: 40 mm | Overall length LT: 143.5 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD25-50 Bore: 25 mm | Stroke: 50 mm | Overall length LT: 156.5 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD25-75 Bore: 25 mm | Stroke: 75 mm | Overall length LT: 197.5 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD25-100 Bore: 25 mm | Stroke: 100 mm | Overall length LT: 238.5 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD25-125 Bore: 25 mm | Stroke: 125 mm | Overall length LT: 296.5 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CR-NLCD25-150 Bore: 25 mm | Stroke: 150 mm | Overall length LT: 336.5 mm | Clean version: CR = relief port type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD08-10 Bore: 8 mm | Stroke: 10 mm | Overall length LT: 71 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD08-20 Bore: 8 mm | Stroke: 20 mm | Overall length LT: 76 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD08-30 Bore: 8 mm | Stroke: 30 mm | Overall length LT: 87 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD08-40 Bore: 8 mm | Stroke: 40 mm | Overall length LT: 105 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD08-50 Bore: 8 mm | Stroke: 50 mm | Overall length LT: 123 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD08-75 Bore: 8 mm | Stroke: 75 mm | Overall length LT: 173 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD16-10 Bore: 16 mm | Stroke: 10 mm | Overall length LT: 107 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD16-20 Bore: 16 mm | Stroke: 20 mm | Overall length LT: 107 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD16-30 Bore: 16 mm | Stroke: 30 mm | Overall length LT: 107 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD16-40 Bore: 16 mm | Stroke: 40 mm | Overall length LT: 117 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD16-50 Bore: 16 mm | Stroke: 50 mm | Overall length LT: 132 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD16-75 Bore: 16 mm | Stroke: 75 mm | Overall length LT: 182 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD16-100 Bore: 16 mm | Stroke: 100 mm | Overall length LT: 230 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD16-125 Bore: 16 mm | Stroke: 125 mm | Overall length LT: 280 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD20-10 Bore: 20 mm | Stroke: 10 mm | Overall length LT: 121 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD20-20 Bore: 20 mm | Stroke: 20 mm | Overall length LT: 121 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD20-30 Bore: 20 mm | Stroke: 30 mm | Overall length LT: 121 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD20-40 Bore: 20 mm | Stroke: 40 mm | Overall length LT: 131 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD20-50 Bore: 20 mm | Stroke: 50 mm | Overall length LT: 146 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD20-75 Bore: 20 mm | Stroke: 75 mm | Overall length LT: 185 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD20-100 Bore: 20 mm | Stroke: 100 mm | Overall length LT: 238 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD20-125 Bore: 20 mm | Stroke: 125 mm | Overall length LT: 292 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD20-150 Bore: 20 mm | Stroke: 150 mm | Overall length LT: 344 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD25-10 Bore: 25 mm | Stroke: 10 mm | Overall length LT: 133.5 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD25-20 Bore: 25 mm | Stroke: 20 mm | Overall length LT: 133.5 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD25-30 Bore: 25 mm | Stroke: 30 mm | Overall length LT: 133.5 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD25-40 Bore: 25 mm | Stroke: 40 mm | Overall length LT: 143.5 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD25-50 Bore: 25 mm | Stroke: 50 mm | Overall length LT: 156.5 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD25-75 Bore: 25 mm | Stroke: 75 mm | Overall length LT: 197.5 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD25-100 Bore: 25 mm | Stroke: 100 mm | Overall length LT: 238.5 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD25-125 Bore: 25 mm | Stroke: 125 mm | Overall length LT: 296.5 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
CV-NLCD25-150 Bore: 25 mm | Stroke: 150 mm | Overall length LT: 336.5 mm | Clean version: CV = vacuum suction type | Acting: Double | Ports: M5x0.8 air ports, M5x0.8 relief port | Operating pressure: 0.15-0.7 MPa | Proof pressure: 1.05 MPa | Speed: 50-500 mm/s | Temperature: -10 to 60 C | Lubrication: not required | Magnet built in; auto switch optional
Pneumatic CylindersTPC Mechatronics
64 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics CR/CV-NLCD Clean Table Cylinder

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (64)

CR-NLCD08-10, CR-NLCD08-20, CR-NLCD08-30, CR-NLCD08-40, CR-NLCD08-50, CR-NLCD08-75, CR-NLCD16-10, CR-NLCD16-20, CR-NLCD16-30, CR-NLCD16-40 + 54 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
