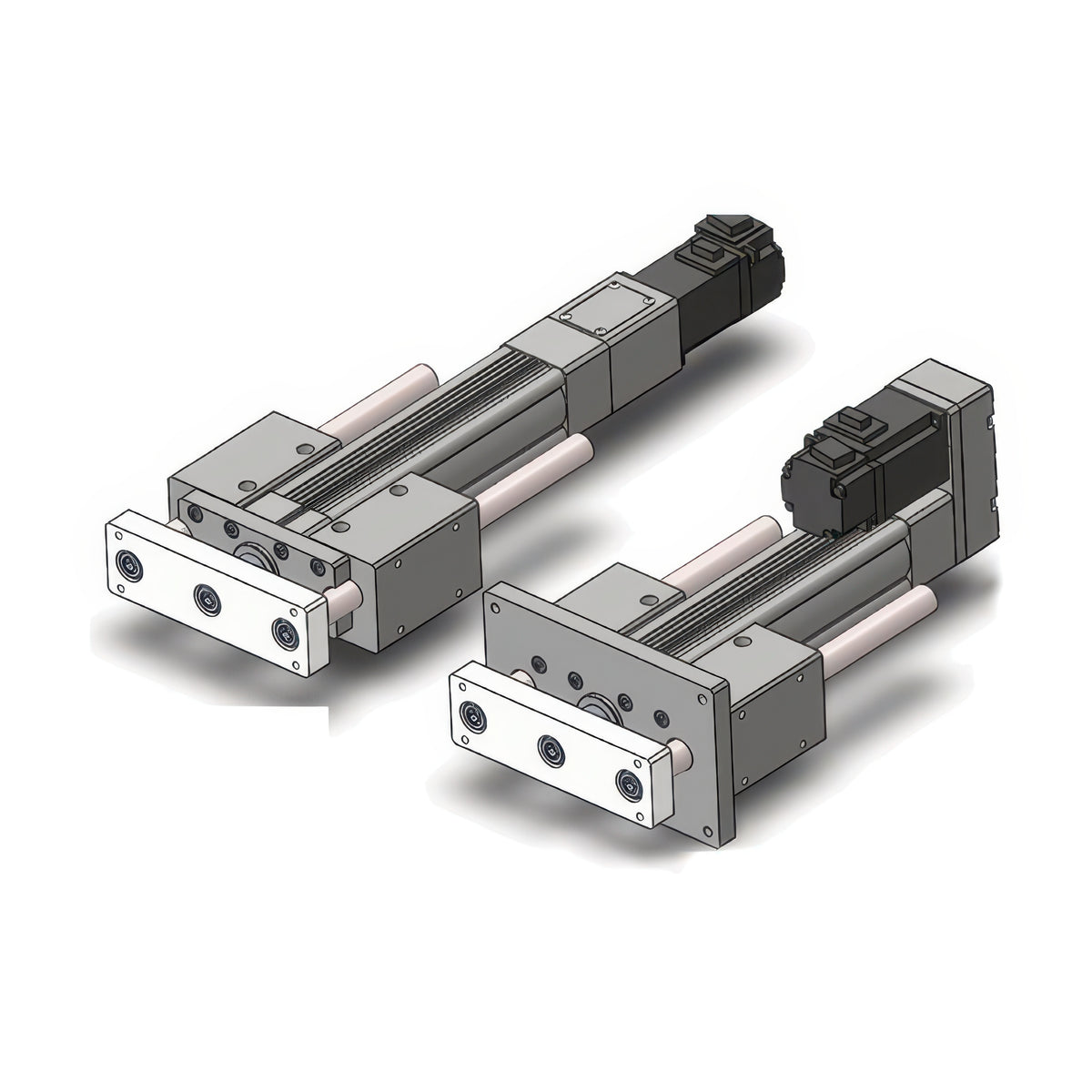

TPC Mechatronics EGU Guide Unit for Electric Cylinders

TPC Mechatronics EGU Guide Unit for Electric Cylinders

The EGU is a separate guide unit used to add a high-rigidity guide to an EMC series electric cylinder, in sizes 45, 65 and 80 mm square.

Key features

  • Long ball bushes and robust guide rods increase load and side-load capacity while keeping motion smooth
  • It is available in basic body-mount and flange-mount versions
  • Standard strokes range from 50 mm up to 400, 800 or 1000 mm depending on size, in 50 mm steps

Specifications

Mounting B basic body mount, F flange mount
Guide long ball bush guide rods
EGU45 Size: 45 mm sq. | Mounting: B basic body mount, F flange mount | Stroke: 50-400 mm in 50 mm steps | Guide: long ball bush guide rods | For use with EMC series electric cylinder of the same size
EGU65 Size: 65 mm sq. | Mounting: B basic body mount, F flange mount | Stroke: 50-800 mm in 50 mm steps | Guide: long ball bush guide rods | For use with EMC series electric cylinder of the same size
EGU80 Size: 80 mm sq. | Mounting: B basic body mount, F flange mount | Stroke: 50-1000 mm in 50 mm steps | Guide: long ball bush guide rods | For use with EMC series electric cylinder of the same size
Electric ActuatorsTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics EGU Guide Unit for Electric Cylinders

Brand TPC Mechatronics·Electric Actuators

Available part numbers (3)

EGU45, EGU65, EGU80

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EGU45Size: 45 mm sq. | Mounting: B basic body mount, F flange mount | Stroke: 50-400 mm in 50 mm steps | Guide: long ball bush guide rods | For use with EMC series electric cylinder of the same size
EGU65Size: 65 mm sq. | Mounting: B basic body mount, F flange mount | Stroke: 50-800 mm in 50 mm steps | Guide: long ball bush guide rods | For use with EMC series electric cylinder of the same size
EGU80Size: 80 mm sq. | Mounting: B basic body mount, F flange mount | Stroke: 50-1000 mm in 50 mm steps | Guide: long ball bush guide rods | For use with EMC series electric cylinder of the same size
