TPC Mechatronics ENGQ Guided Electric Cylinder

TPC Mechatronics ENGQ Guided Electric Cylinder

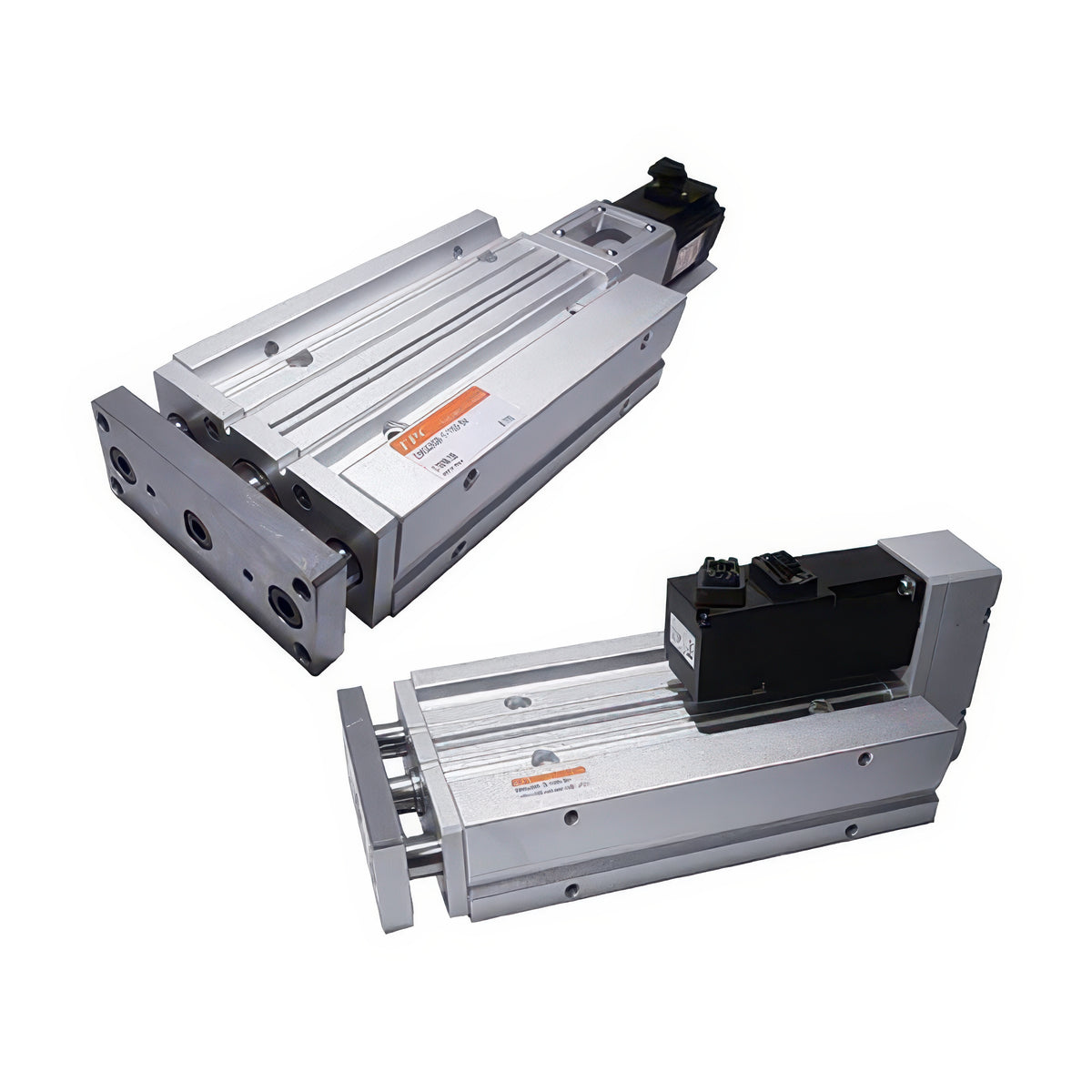

The ENGQ is a compact guided electric cylinder driven by an AC servo motor through a ball screw, in sizes 45, 65 and 80.

Key features

  • Its overall length is 18-25 percent shorter than the EMC series
  • High-rigidity long ball bushes give quiet, smooth motion with high side-load capacity and accurate anti-rotation
  • Inline (B) and parallel (P) motor layouts are offered, with mounting on top, bottom and both sides plus a bottom T-slot
  • Various auto switches can be fitted

Specifications

Standard strokes 50, 100, 150, 200 mm
Mounting B inline motor, P parallel motor
Rated speed 250 mm/s (lead 5) / 500 mm/s (lead 10)
Repeatability 0.02 mm inline, 0.08 mm parallel
Max acceleration 5 m/s2
Guide ball bush
Auto switch optional (inline type only)
ENGQ45 Size: 45 | Motor flange: 42 mm sq. | Ball screw: 12 mm dia, lead 5/10 mm | Standard strokes: 50, 100, 150, 200 mm | Mounting: B inline motor, P parallel motor | Motor: AC servo 40 mm sq., 50 W / 100 W, 3000 rpm | Rated speed: 250 mm/s (lead 5) / 500 mm/s (lead 10) | Repeatability: 0.02 mm inline, 0.08 mm parallel | Max acceleration: 5 m/s2 | Guide: ball bush | Body weight: 1.4 + 0.016 x stroke kg (stroke in mm) | Auto switch: optional (inline type only)
ENGQ65 Size: 65 | Motor flange: 60 mm sq. | Ball screw: 16 mm dia, lead 5/10 mm | Standard strokes: 50, 100, 150, 200 mm | Mounting: B inline motor, P parallel motor | Motor: AC servo 60 mm sq., 200 W / 400 W, 3000 rpm | Rated speed: 250 mm/s (lead 5) / 500 mm/s (lead 10) | Repeatability: 0.02 mm inline, 0.08 mm parallel | Max acceleration: 5 m/s2 | Guide: ball bush | Body weight: 2.9 + 0.033 x stroke kg (stroke in mm) | Auto switch: optional (inline type only)
ENGQ80 Size: 80 | Motor flange: 80 mm sq. | Ball screw: 25 mm dia, lead 5/10 mm | Standard strokes: 50, 100, 150, 200 mm | Mounting: B inline motor, P parallel motor | Motor: AC servo 80 mm sq., 750 W, 3000 rpm | Rated speed: 250 mm/s (lead 5) / 500 mm/s (lead 10) | Repeatability: 0.02 mm inline, 0.08 mm parallel | Max acceleration: 5 m/s2 | Guide: ball bush | Body weight: 9 + 0.035 x stroke kg (stroke in mm) | Auto switch: optional (inline type only)
Electric ActuatorsTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics ENGQ Guided Electric Cylinder

Brand TPC Mechatronics·Electric Actuators

Available part numbers (3)

ENGQ45, ENGQ65, ENGQ80

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ENGQ45Size: 45 | Motor flange: 42 mm sq. | Ball screw: 12 mm dia, lead 5/10 mm | Standard strokes: 50, 100, 150, 200 mm | Mounting: B inline motor, P parallel motor | Motor: AC servo 40 mm sq., 50 W / 100 W, 3000 rpm | Rated speed: 250 mm/s (lead 5) / 500 mm/s (lead 10) | Repeatability: 0.02 mm inline, 0.08 mm parallel | Max acceleration: 5 m/s2 | Guide: ball bush | Body weight: 1.4 + 0.016 x stroke kg (stroke in mm) | Auto switch: optional (inline type only)
ENGQ65Size: 65 | Motor flange: 60 mm sq. | Ball screw: 16 mm dia, lead 5/10 mm | Standard strokes: 50, 100, 150, 200 mm | Mounting: B inline motor, P parallel motor | Motor: AC servo 60 mm sq., 200 W / 400 W, 3000 rpm | Rated speed: 250 mm/s (lead 5) / 500 mm/s (lead 10) | Repeatability: 0.02 mm inline, 0.08 mm parallel | Max acceleration: 5 m/s2 | Guide: ball bush | Body weight: 2.9 + 0.033 x stroke kg (stroke in mm) | Auto switch: optional (inline type only)
ENGQ80Size: 80 | Motor flange: 80 mm sq. | Ball screw: 25 mm dia, lead 5/10 mm | Standard strokes: 50, 100, 150, 200 mm | Mounting: B inline motor, P parallel motor | Motor: AC servo 80 mm sq., 750 W, 3000 rpm | Rated speed: 250 mm/s (lead 5) / 500 mm/s (lead 10) | Repeatability: 0.02 mm inline, 0.08 mm parallel | Max acceleration: 5 m/s2 | Guide: ball bush | Body weight: 9 + 0.035 x stroke kg (stroke in mm) | Auto switch: optional (inline type only)
