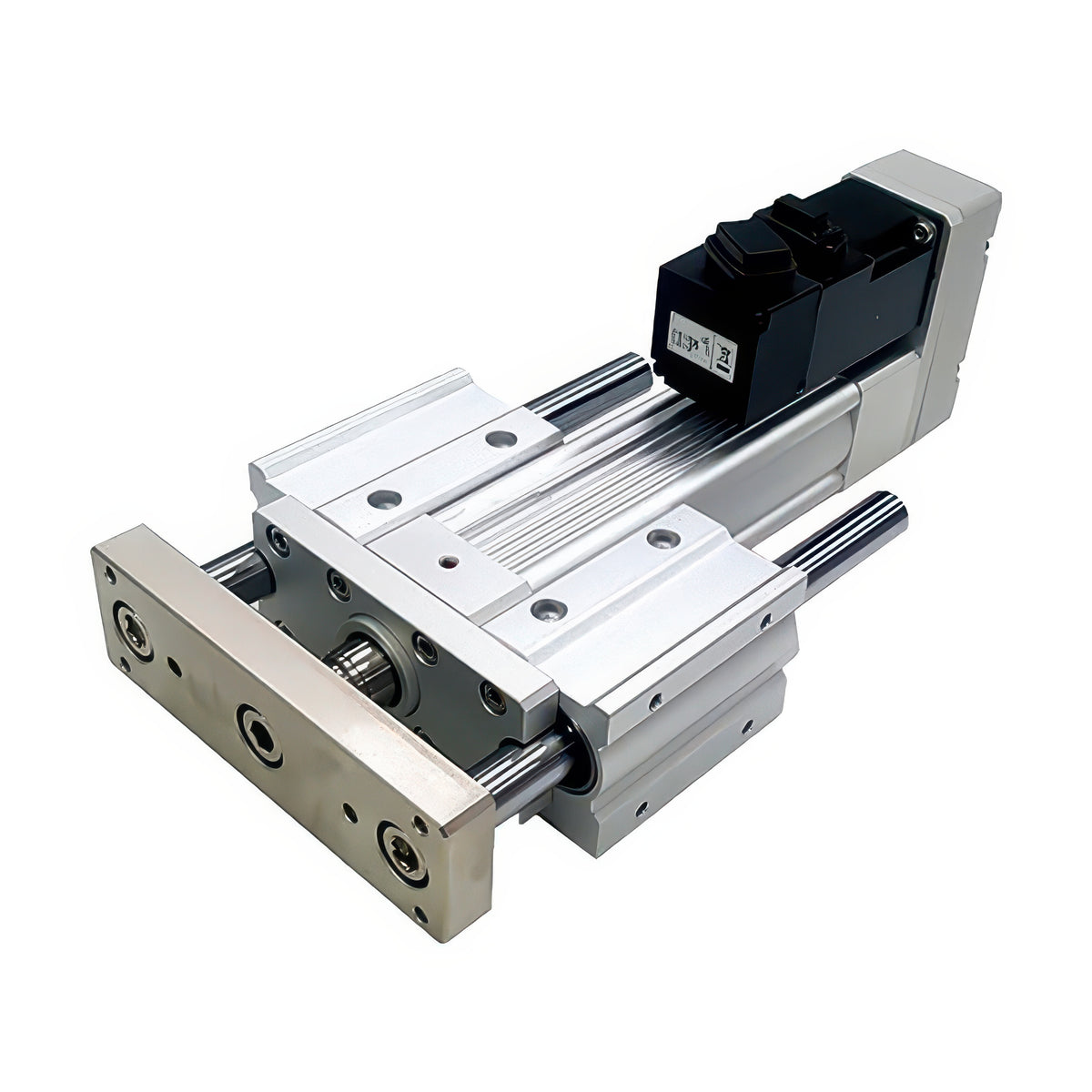

TPC Mechatronics EMGC Guide Unit Electric Cylinder

TPC Mechatronics EMGC Guide Unit Electric Cylinder

The EMGC is an electric motor cylinder combined with a guide unit, offered in sizes 45, 65 and 80.

Key features

  • High-rigidity long ball bushes are standard and the guide rod section modulus is more than twice that of comparable units, increasing load and side-load capacity
  • Motion is smooth and precise
  • Inline and parallel motor layouts with direct or front-flange mounting are available, the flange suiting vertical installation
  • Stepping or servo motors and auto switches can be specified

Specifications

Mounting B inline direct, F inline flange, P parallel direct, PF parallel flange
Motor standard stepping motor, (P)SV servo motor or S special
Guide long ball bush guide rods
Auto switch W9H/W9V/W9HN/W9HP/F9HN optional
EMGC45 Size: 45 | Motor flange: 42 mm sq. | Ball screw lead options: B1205, B1210 | Stroke: 50-400 mm in 50 mm steps | Mounting: B inline direct, F inline flange, P parallel direct, PF parallel flange | Motor: standard stepping motor, (P)SV servo motor or S special | Guide: long ball bush guide rods | Auto switch: W9H/W9V/W9HN/W9HP/F9HN optional
EMGC65 Size: 65 | Motor flange: 60 mm sq. | Ball screw lead options: B1605, B1610 | Stroke: 50-800 mm in 50 mm steps | Mounting: B inline direct, F inline flange, P parallel direct, PF parallel flange | Motor: standard stepping motor, (P)SV servo motor or S special | Guide: long ball bush guide rods | Auto switch: W9H/W9V/W9HN/W9HP/F9HN optional
EMGC80 Size: 80 | Motor flange: 80 mm sq. | Ball screw lead options: B2505, B2510 | Stroke: 50-1000 mm in 50 mm steps | Mounting: B inline direct, F inline flange, P parallel direct, PF parallel flange | Motor: standard stepping motor, (P)SV servo motor or S special | Guide: long ball bush guide rods | Auto switch: W9H/W9V/W9HN/W9HP/F9HN optional
Electric ActuatorsTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics EMGC Guide Unit Electric Cylinder

Brand TPC Mechatronics·Electric Actuators

Available part numbers (3)

EMGC45, EMGC65, EMGC80

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EMGC45Size: 45 | Motor flange: 42 mm sq. | Ball screw lead options: B1205, B1210 | Stroke: 50-400 mm in 50 mm steps | Mounting: B inline direct, F inline flange, P parallel direct, PF parallel flange | Motor: standard stepping motor, (P)SV servo motor or S special | Guide: long ball bush guide rods | Auto switch: W9H/W9V/W9HN/W9HP/F9HN optional
EMGC65Size: 65 | Motor flange: 60 mm sq. | Ball screw lead options: B1605, B1610 | Stroke: 50-800 mm in 50 mm steps | Mounting: B inline direct, F inline flange, P parallel direct, PF parallel flange | Motor: standard stepping motor, (P)SV servo motor or S special | Guide: long ball bush guide rods | Auto switch: W9H/W9V/W9HN/W9HP/F9HN optional
EMGC80Size: 80 | Motor flange: 80 mm sq. | Ball screw lead options: B2505, B2510 | Stroke: 50-1000 mm in 50 mm steps | Mounting: B inline direct, F inline flange, P parallel direct, PF parallel flange | Motor: standard stepping motor, (P)SV servo motor or S special | Guide: long ball bush guide rods | Auto switch: W9H/W9V/W9HN/W9HP/F9HN optional
