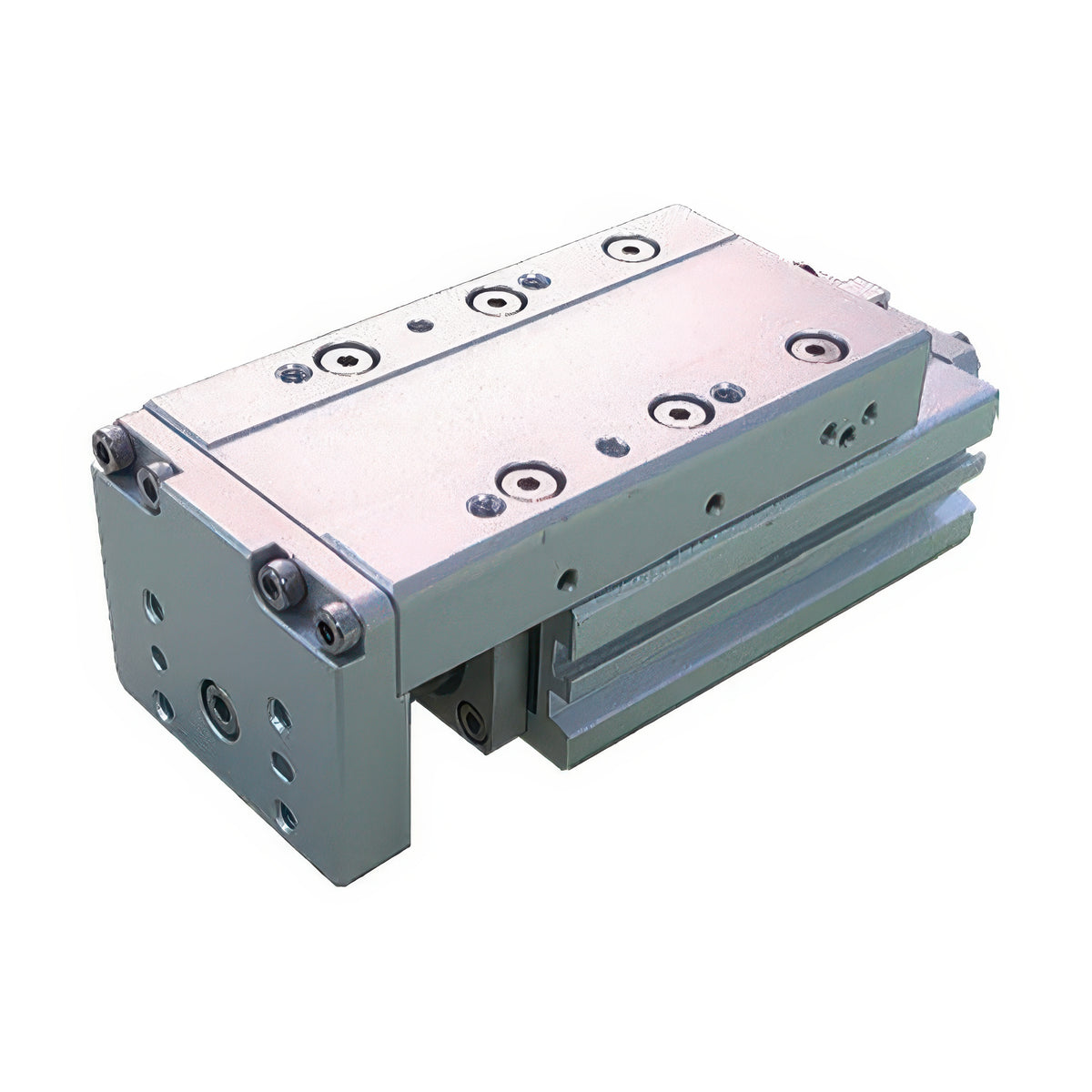

TPC Mechatronics ETC48 Compact Table Servo Actuator

TPC Mechatronics ETC48 Compact Table Servo Actuator

The ETC48 is the 48 x 58 mm size of the ETC compact table servo actuator.

Key features

  • A 12 mm ball screw drives a low-profile table supported by a cross roller guide for high rigidity
  • The motor can be mounted inline (D) or parallel via timing belt (P), and the body can be mounted directly or with side feet
  • Repeatability is +/-0.02 mm with speeds up to 500 mm/s
  • Photo micro sensors can be fitted for position detection

Specifications

Size 48 x 58 mm
Repeatability +/-0.02 mm
Guide cross roller
Motor size 42 mm sq. (standard stepping motor)
Sensor PN4X photo sensor NPN optional
ETC48D-1-50-N Size: 48 x 58 mm | Motor layout: D = inline motor (coupling) | Ball screw: B1205 (12 mm dia, lead 5 mm) | Stroke: 50 mm | Mounting: N = body mount | Max payload: 9.9 kg horizontal / 3.3 kg vertical | Max thrust: 204 N | Max speed: 250 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48D-1-50-B Size: 48 x 58 mm | Motor layout: D = inline motor (coupling) | Ball screw: B1205 (12 mm dia, lead 5 mm) | Stroke: 50 mm | Mounting: B = side foot mount (4 pcs) | Max payload: 9.9 kg horizontal / 3.3 kg vertical | Max thrust: 204 N | Max speed: 250 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48D-1-75-N Size: 48 x 58 mm | Motor layout: D = inline motor (coupling) | Ball screw: B1205 (12 mm dia, lead 5 mm) | Stroke: 75 mm | Mounting: N = body mount | Max payload: 9.9 kg horizontal / 3.3 kg vertical | Max thrust: 204 N | Max speed: 250 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48D-1-75-B Size: 48 x 58 mm | Motor layout: D = inline motor (coupling) | Ball screw: B1205 (12 mm dia, lead 5 mm) | Stroke: 75 mm | Mounting: B = side foot mount (4 pcs) | Max payload: 9.9 kg horizontal / 3.3 kg vertical | Max thrust: 204 N | Max speed: 250 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48D-2-50-N Size: 48 x 58 mm | Motor layout: D = inline motor (coupling) | Ball screw: B1210 (12 mm dia, lead 10 mm) | Stroke: 50 mm | Mounting: N = body mount | Max payload: 5.1 kg horizontal / 1.7 kg vertical | Max thrust: 102 N | Max speed: 500 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48D-2-50-B Size: 48 x 58 mm | Motor layout: D = inline motor (coupling) | Ball screw: B1210 (12 mm dia, lead 10 mm) | Stroke: 50 mm | Mounting: B = side foot mount (4 pcs) | Max payload: 5.1 kg horizontal / 1.7 kg vertical | Max thrust: 102 N | Max speed: 500 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48D-2-75-N Size: 48 x 58 mm | Motor layout: D = inline motor (coupling) | Ball screw: B1210 (12 mm dia, lead 10 mm) | Stroke: 75 mm | Mounting: N = body mount | Max payload: 5.1 kg horizontal / 1.7 kg vertical | Max thrust: 102 N | Max speed: 500 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48D-2-75-B Size: 48 x 58 mm | Motor layout: D = inline motor (coupling) | Ball screw: B1210 (12 mm dia, lead 10 mm) | Stroke: 75 mm | Mounting: B = side foot mount (4 pcs) | Max payload: 5.1 kg horizontal / 1.7 kg vertical | Max thrust: 102 N | Max speed: 500 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48P-1-50-N Size: 48 x 58 mm | Motor layout: P = parallel motor (timing belt) | Ball screw: B1205 (12 mm dia, lead 5 mm) | Stroke: 50 mm | Mounting: N = body mount | Max payload: 9.9 kg horizontal / 3.3 kg vertical | Max thrust: 204 N | Max speed: 250 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48P-1-50-B Size: 48 x 58 mm | Motor layout: P = parallel motor (timing belt) | Ball screw: B1205 (12 mm dia, lead 5 mm) | Stroke: 50 mm | Mounting: B = side foot mount (4 pcs) | Max payload: 9.9 kg horizontal / 3.3 kg vertical | Max thrust: 204 N | Max speed: 250 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48P-1-75-N Size: 48 x 58 mm | Motor layout: P = parallel motor (timing belt) | Ball screw: B1205 (12 mm dia, lead 5 mm) | Stroke: 75 mm | Mounting: N = body mount | Max payload: 9.9 kg horizontal / 3.3 kg vertical | Max thrust: 204 N | Max speed: 250 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48P-1-75-B Size: 48 x 58 mm | Motor layout: P = parallel motor (timing belt) | Ball screw: B1205 (12 mm dia, lead 5 mm) | Stroke: 75 mm | Mounting: B = side foot mount (4 pcs) | Max payload: 9.9 kg horizontal / 3.3 kg vertical | Max thrust: 204 N | Max speed: 250 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48P-2-50-N Size: 48 x 58 mm | Motor layout: P = parallel motor (timing belt) | Ball screw: B1210 (12 mm dia, lead 10 mm) | Stroke: 50 mm | Mounting: N = body mount | Max payload: 5.1 kg horizontal / 1.7 kg vertical | Max thrust: 102 N | Max speed: 500 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48P-2-50-B Size: 48 x 58 mm | Motor layout: P = parallel motor (timing belt) | Ball screw: B1210 (12 mm dia, lead 10 mm) | Stroke: 50 mm | Mounting: B = side foot mount (4 pcs) | Max payload: 5.1 kg horizontal / 1.7 kg vertical | Max thrust: 102 N | Max speed: 500 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48P-2-75-N Size: 48 x 58 mm | Motor layout: P = parallel motor (timing belt) | Ball screw: B1210 (12 mm dia, lead 10 mm) | Stroke: 75 mm | Mounting: N = body mount | Max payload: 5.1 kg horizontal / 1.7 kg vertical | Max thrust: 102 N | Max speed: 500 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
ETC48P-2-75-B Size: 48 x 58 mm | Motor layout: P = parallel motor (timing belt) | Ball screw: B1210 (12 mm dia, lead 10 mm) | Stroke: 75 mm | Mounting: B = side foot mount (4 pcs) | Max payload: 5.1 kg horizontal / 1.7 kg vertical | Max thrust: 102 N | Max speed: 500 mm/s | Repeatability: +/-0.02 mm | Guide: cross roller | Motor size: 42 mm sq. (standard stepping motor) | Sensor: PN4X photo sensor NPN optional
