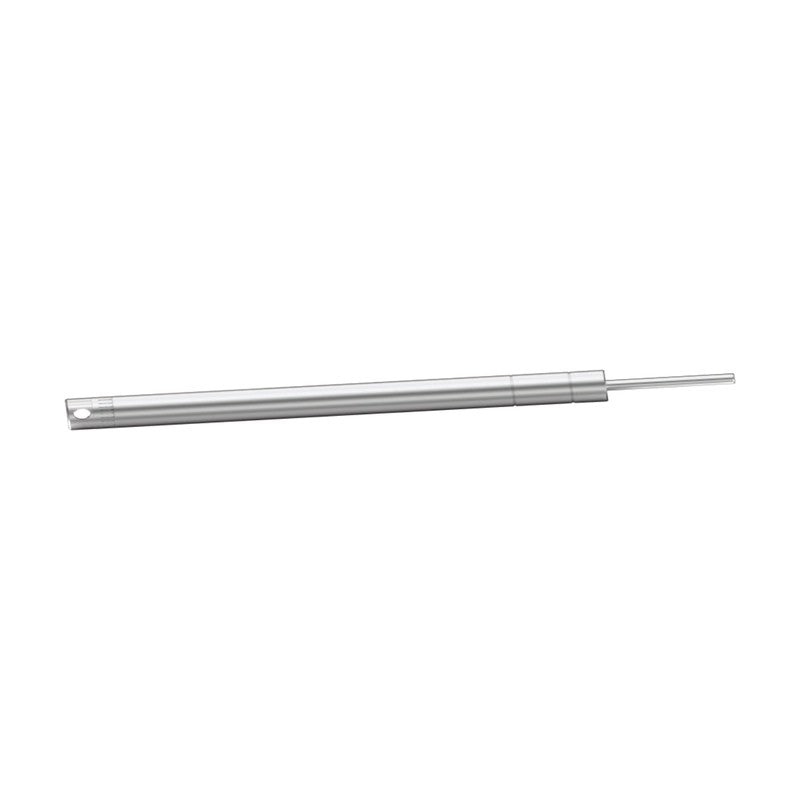

TPC Mechatronics KHC Hydro Check Hydraulic Speed Controller (Body Ø24/31/38)

TPC Mechatronics KHC Hydro Check Hydraulic Speed Controller (Body Ø24/31/38)

The KHC series hydro check is an oil-filled hydraulic speed controller that provides precise feed speed and position control for moving equipment.

Key features

  • Speed is finely adjusted with an adjustment knob over a 300° range, giving accurate feed for auto feed drilling, grinding and cutting and extending tool life
  • The piston rod is made of corrosion-resistant material and the body is plated against damage from the working environment
  • Internal oil is self-filtering for consistent speed control, and mounting is simplified with a snap ring and optional mounting block
  • Standard operating temperature is -10 to 80°C (special version -30 to 100°C); custom-made versions are available at order
TPC Mechatronics KHC Hydro Check Hydraulic Speed Controller (Body Ø24/31/38) reference 2
KHC24-15 Stroke: 15 mm | Overall length A: 157.5 mm | Body diameter: Ø23.8 mm | Rod diameter: Ø8 mm | Max load angle from axis: 1.2° | Load limits: 100~2,500 N | Feed rate limits: 0.2~30 mm/s | Weight: 385 g
KHC31-40 Stroke: 40 mm | Overall length A: 270 mm | Body diameter: Ø31 mm | Rod diameter: Ø12 mm | Max load angle from axis: 1° | Load limits: 450~3,500 N | Feed rate limits: 0.2~30 mm/s | Weight: 1,040 g
KHC38-60 Stroke: 60 mm | Overall length A: 321 mm | Body diameter: Ø38 mm | Rod diameter: Ø14 mm | Max load angle from axis: 0.5° | Load limits: 1,500~5,000 N | Feed rate limits: 0.3~30 mm/s | Weight: 2,490 g
Hydraulic Speed ControllersTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics KHC Hydro Check Hydraulic Speed Controller (Body Ø24/31/38)

Brand TPC Mechatronics·Hydraulic Speed Controllers

Available part numbers (3)

KHC24-15, KHC31-40, KHC38-60

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics KHC Hydro Check Hydraulic Speed Controller (Body Ø24/31/38) reference 2
0 selected
RFQ List (0)
Product codeSpec
KHC24-15Stroke: 15 mm | Overall length A: 157.5 mm | Body diameter: Ø23.8 mm | Rod diameter: Ø8 mm | Max load angle from axis: 1.2° | Load limits: 100~2,500 N | Feed rate limits: 0.2~30 mm/s | Weight: 385 g
KHC31-40Stroke: 40 mm | Overall length A: 270 mm | Body diameter: Ø31 mm | Rod diameter: Ø12 mm | Max load angle from axis: 1° | Load limits: 450~3,500 N | Feed rate limits: 0.2~30 mm/s | Weight: 1,040 g
KHC38-60Stroke: 60 mm | Overall length A: 321 mm | Body diameter: Ø38 mm | Rod diameter: Ø14 mm | Max load angle from axis: 0.5° | Load limits: 1,500~5,000 N | Feed rate limits: 0.3~30 mm/s | Weight: 2,490 g
