TPC Mechatronics KHC Step Check Unit Hydraulic Speed Controller (Body Ø24, Air Return)

TPC Mechatronics KHC Step Check Unit Hydraulic Speed Controller (Body Ø24, Air Return)

The KHC step check unit is a hydro check hydraulic speed controller with an added step check unit that allows intermediate stops at any desired position.

Key features

  • It provides the same speed control function as the standard hydro check, with an air-return step check unit actuated through an M5x0.8 air port
  • It is used for long drilling, precision work and operations that require chip discharge mid-stroke
  • Speed is adjusted with an adjustment knob, and special versions can be made to order

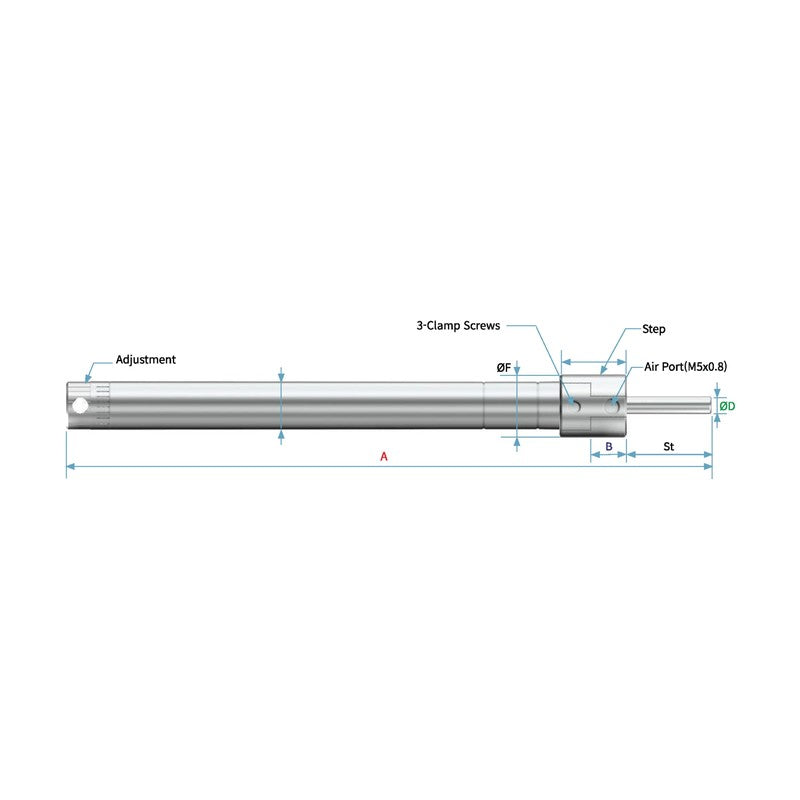

Specifications

Stroke 30 mm
Overall length A 224.5 mm
B 22 mm
C 35 mm
Rod diameter D Ø8 mm
Body diameter E Ø23.8 mm
F Ø32 mm
Return type Air return
Weight 500 g
KHC24-30S Stroke: 30 mm | Overall length A: 224.5 mm | B: 22 mm | C: 35 mm | Rod diameter D: Ø8 mm | Body diameter E: Ø23.8 mm | F: Ø32 mm | Return type: Air return | Weight: 500 g
Hydraulic Speed ControllersTPC Mechatronics
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics KHC Step Check Unit Hydraulic Speed Controller (Body Ø24, Air Return)

Brand TPC Mechatronics·Hydraulic Speed Controllers

Available part numbers (1)

KHC24-30S

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KHC24-30SStroke: 30 mm | Overall length A: 224.5 mm | B: 22 mm | C: 35 mm | Rod diameter D: Ø8 mm | Body diameter E: Ø23.8 mm | F: Ø32 mm | Return type: Air return | Weight: 500 g
