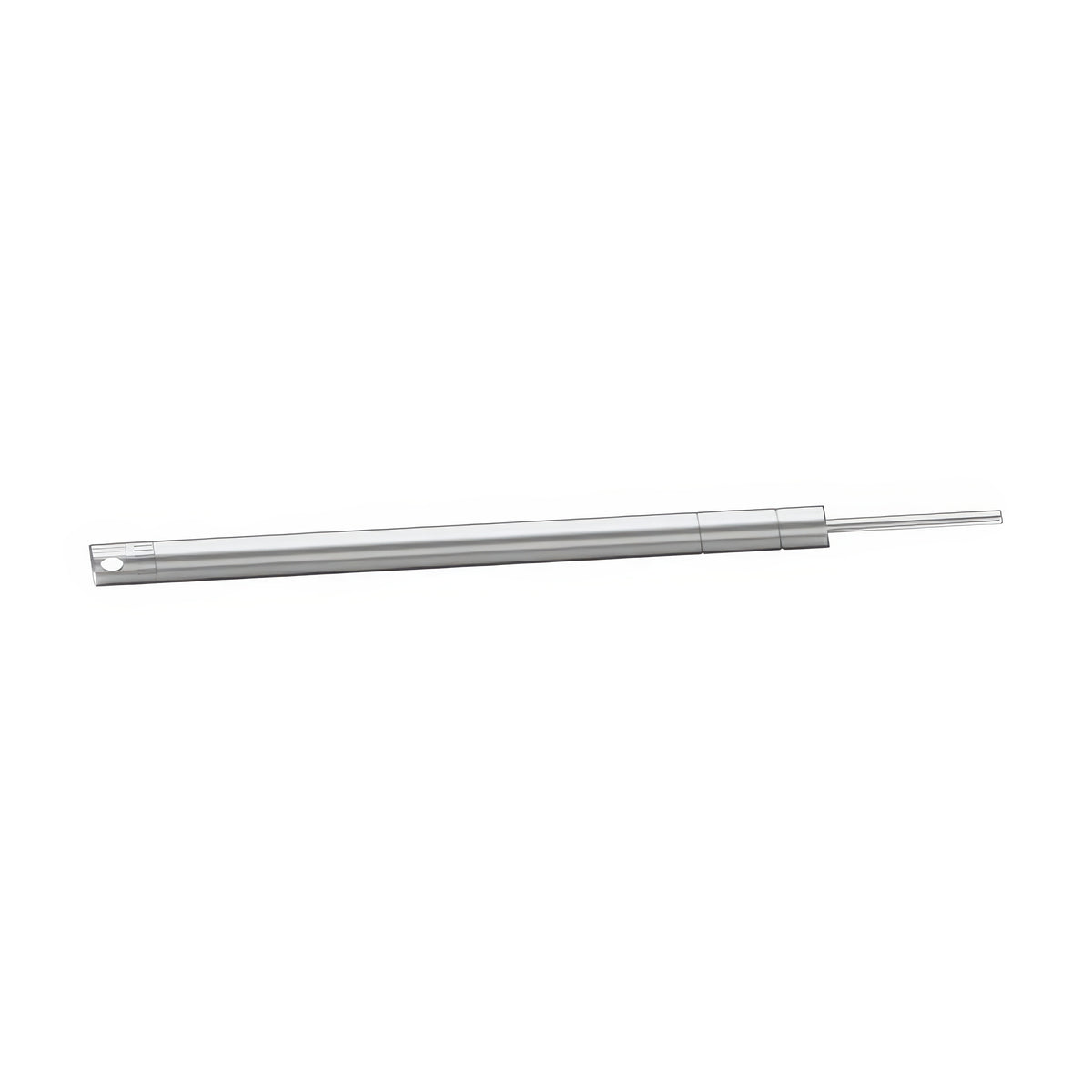

TPC Mechatronics KHC Step Check Unit (Additional Strokes)

TPC Mechatronics KHC Step Check Unit (Additional Strokes)

The KHC step check unit provides the same hydraulic speed control as the hydro check but adds an intermediate stop at a desired position.

Key features

  • It is used for long drilling, precision operations and work that requires chip discharge partway through the stroke
  • The unit uses air return
  • Custom versions can be built for special applications

Specifications

Body diameter 24 mm
Dimensions B/C 22/35 mm
Return type air return
Function speed control with intermediate stop (step check)
KHC24-60S Body diameter: 24 mm | Stroke: 60 mm | Length A: 332.5 mm | Dimensions B/C: 22/35 mm | Return type: air return | Weight: 685 g | Function: speed control with intermediate stop (step check)
KHC24-90S Body diameter: 24 mm | Stroke: 90 mm | Length A: 404.5 mm | Dimensions B/C: 22/35 mm | Return type: air return | Weight: 795 g | Function: speed control with intermediate stop (step check)
KHC24-120S Body diameter: 24 mm | Stroke: 120 mm | Length A: 494.5 mm | Dimensions B/C: 22/35 mm | Return type: air return | Weight: 935 g | Function: speed control with intermediate stop (step check)
Hydraulic Speed ControllersTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics KHC Step Check Unit (Additional Strokes)

Brand TPC Mechatronics·Hydraulic Speed Controllers

Available part numbers (3)

KHC24-60S, KHC24-90S, KHC24-120S

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KHC24-60SBody diameter: 24 mm | Stroke: 60 mm | Length A: 332.5 mm | Dimensions B/C: 22/35 mm | Return type: air return | Weight: 685 g | Function: speed control with intermediate stop (step check)
KHC24-90SBody diameter: 24 mm | Stroke: 90 mm | Length A: 404.5 mm | Dimensions B/C: 22/35 mm | Return type: air return | Weight: 795 g | Function: speed control with intermediate stop (step check)
KHC24-120SBody diameter: 24 mm | Stroke: 120 mm | Length A: 494.5 mm | Dimensions B/C: 22/35 mm | Return type: air return | Weight: 935 g | Function: speed control with intermediate stop (step check)
