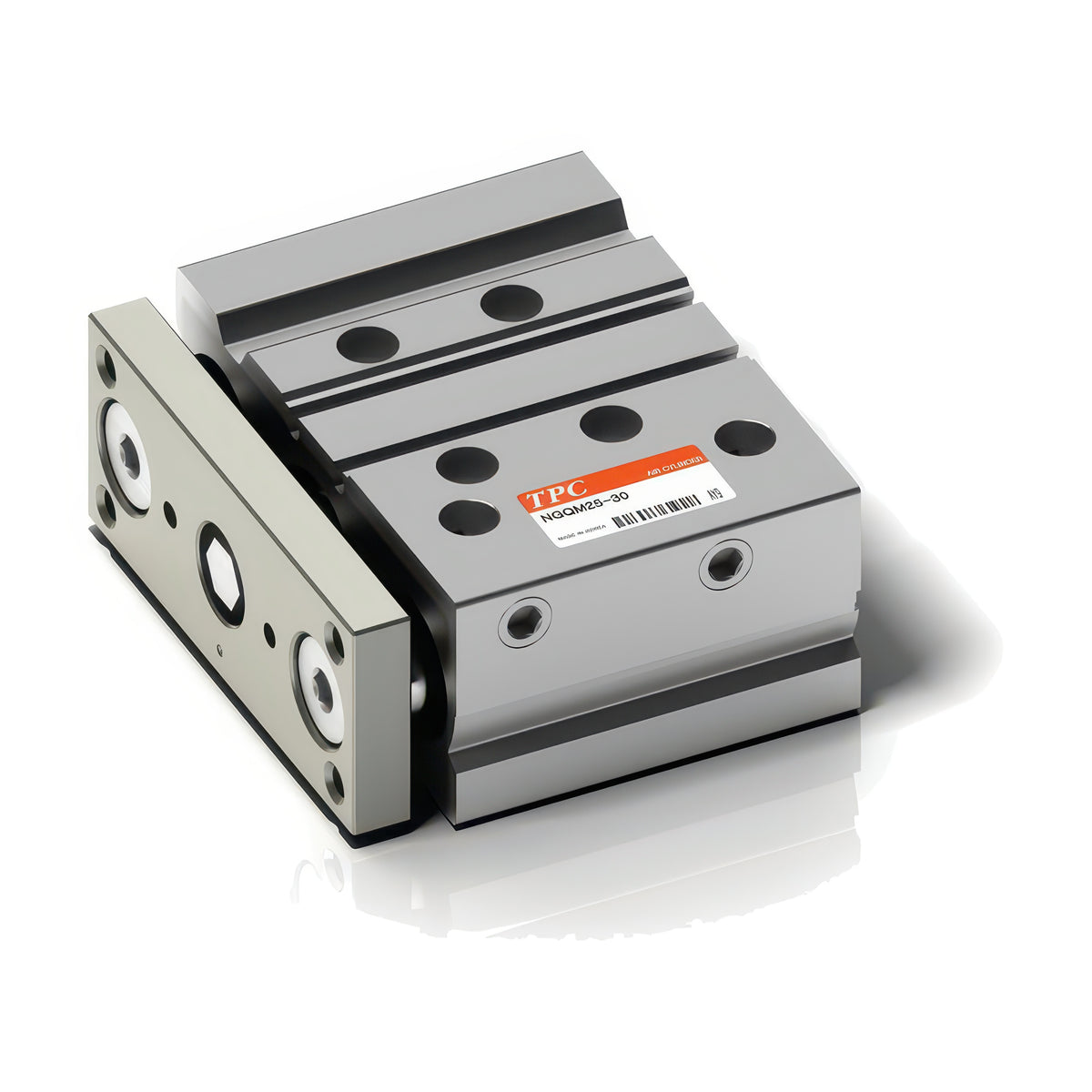

TPC Mechatronics NGQ Series Guided Compact Cylinder (Slide or Ball Bearing Guide)

TPC Mechatronics NGQ Series Guided Compact Cylinder (Slide or Ball Bearing Guide)

The NGQ series is a double-acting compact pneumatic cylinder with an integrated guide plate and two guide rods, available in bores from 12 to 100 mm.

Key features

  • It resists lateral loads and prevents rod rotation with high accuracy, with a choice of slide bearing (NGQM) or ball bearing (NGQL) guide rods
  • Side ports are fitted as standard alongside top ports, and the body can be mounted through-hole, by side, by T-slot or from the rear
  • A magnet is built in for compact auto switches (W8, W9, W20H, D-A73K) and strong-magnetic-field W2P switches
  • Rubber cushions are fitted at both ends; operating pressure is up to 1.0 MPa, ambient temperature -10 to +60 C, and no lubrication is required
  • Seal kits are available for every bore
NGQM12 Bore: 12 mm | Rod diameter: 6 mm | Guide bearing: Slide bearing | Port size: M5x0.8 | Standard stroke: 10-200 mm | Acting: Double | Operating pressure: 0.12-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQM16 Bore: 16 mm | Rod diameter: 8 mm | Guide bearing: Slide bearing | Port size: M5x0.8 | Standard stroke: 10-200 mm | Acting: Double | Operating pressure: 0.12-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQM20 Bore: 20 mm | Rod diameter: 10 mm | Guide bearing: Slide bearing | Port size: Rc 1/8 | Standard stroke: 20-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQM25 Bore: 25 mm | Rod diameter: 12 mm | Guide bearing: Slide bearing | Port size: Rc 1/8 | Standard stroke: 20-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQM32 Bore: 32 mm | Rod diameter: 16 mm | Guide bearing: Slide bearing | Port size: Rc 1/8 | Standard stroke: 25-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQM40 Bore: 40 mm | Rod diameter: 16 mm | Guide bearing: Slide bearing | Port size: Rc 1/8 | Standard stroke: 25-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQM50 Bore: 50 mm | Rod diameter: 20 mm | Guide bearing: Slide bearing | Port size: Rc 1/4 | Standard stroke: 25-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQM63 Bore: 63 mm | Rod diameter: 20 mm | Guide bearing: Slide bearing | Port size: Rc 1/4 | Standard stroke: 25-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQM80 Bore: 80 mm | Rod diameter: 25 mm | Guide bearing: Slide bearing | Port size: Rc 3/8 | Standard stroke: 25-200 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQM100 Bore: 100 mm | Rod diameter: 30 mm | Guide bearing: Slide bearing | Port size: Rc 3/8 | Standard stroke: 25-200 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL12 Bore: 12 mm | Rod diameter: 6 mm | Guide bearing: Ball bearing | Port size: M5x0.8 | Standard stroke: 10-200 mm | Acting: Double | Operating pressure: 0.12-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL16 Bore: 16 mm | Rod diameter: 8 mm | Guide bearing: Ball bearing | Port size: M5x0.8 | Standard stroke: 10-200 mm | Acting: Double | Operating pressure: 0.12-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL20 Bore: 20 mm | Rod diameter: 10 mm | Guide bearing: Ball bearing | Port size: Rc 1/8 | Standard stroke: 20-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL25 Bore: 25 mm | Rod diameter: 12 mm | Guide bearing: Ball bearing | Port size: Rc 1/8 | Standard stroke: 20-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL32 Bore: 32 mm | Rod diameter: 16 mm | Guide bearing: Ball bearing | Port size: Rc 1/8 | Standard stroke: 25-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL40 Bore: 40 mm | Rod diameter: 16 mm | Guide bearing: Ball bearing | Port size: Rc 1/8 | Standard stroke: 25-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL50 Bore: 50 mm | Rod diameter: 20 mm | Guide bearing: Ball bearing | Port size: Rc 1/4 | Standard stroke: 25-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL63 Bore: 63 mm | Rod diameter: 20 mm | Guide bearing: Ball bearing | Port size: Rc 1/4 | Standard stroke: 25-300 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL80 Bore: 80 mm | Rod diameter: 25 mm | Guide bearing: Ball bearing | Port size: Rc 3/8 | Standard stroke: 25-200 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQL100 Bore: 100 mm | Rod diameter: 30 mm | Guide bearing: Ball bearing | Port size: Rc 3/8 | Standard stroke: 25-200 mm | Acting: Double | Operating pressure: 0.1-1.0 MPa | Proof pressure: 1.5 MPa | Cushion: Rubber, both ends
NGQ12-SK Seal kit for NGQ bore 12 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
NGQ16-SK Seal kit for NGQ bore 16 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
NGQ20-SK Seal kit for NGQ bore 20 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
NGQ25-SK Seal kit for NGQ bore 25 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
NGQ32-SK Seal kit for NGQ bore 32 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
NGQ40-SK Seal kit for NGQ bore 40 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
NGQ50-SK Seal kit for NGQ bore 50 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
NGQ63-SK Seal kit for NGQ bore 63 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
NGQ80-SK Seal kit for NGQ bore 80 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
NGQ100-SK Seal kit for NGQ bore 100 mm | Contents: gaskets, piston packing and rod packing (replacement parts set) | For NGQM and NGQL
Pneumatic CylindersTPC Mechatronics
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NGQ Series Guided Compact Cylinder (Slide or Ball Bearing Guide)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (30)

NGQM12, NGQM16, NGQM20, NGQM25, NGQM32, NGQM40, NGQM50, NGQM63, NGQM80, NGQM100 + 20 more — see full table ↓
