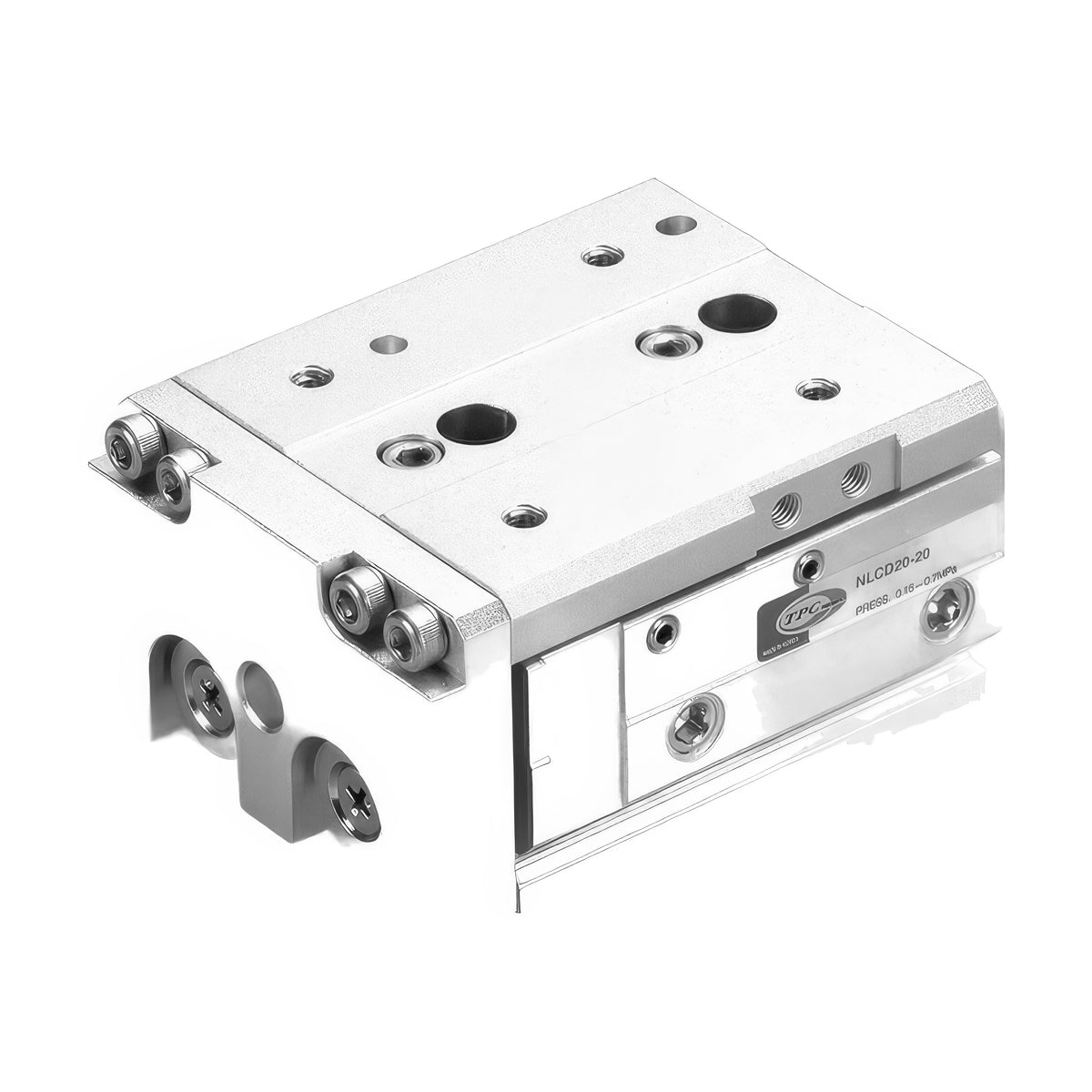

TPC Mechatronics NLCD Series Table Cylinder (Dual Rod, Slide Table)

TPC Mechatronics NLCD Series Table Cylinder (Dual Rod, Slide Table)

The NLCD series is a double-acting dual-rod table (slide) cylinder with an integrated roller-guided table, offered in bore sizes 6, 8, 12, 16, 20, 25 and 32 mm.

Key features

  • A magnet is built in as standard so the cylinder is ready for auto switches on either side
  • The wide work-mounting surface and maximized roller contact area improve durability, and the air port, auto switch and option mounting positions can be selected left or right
  • Optional stroke adjusters with rubber dampers (5, 15 or 25 mm adjustment) or shock absorbers can be fitted at the extend end, retract end or both ends
  • A secondary-battery compatible version (2B) with the same dimensions is available
