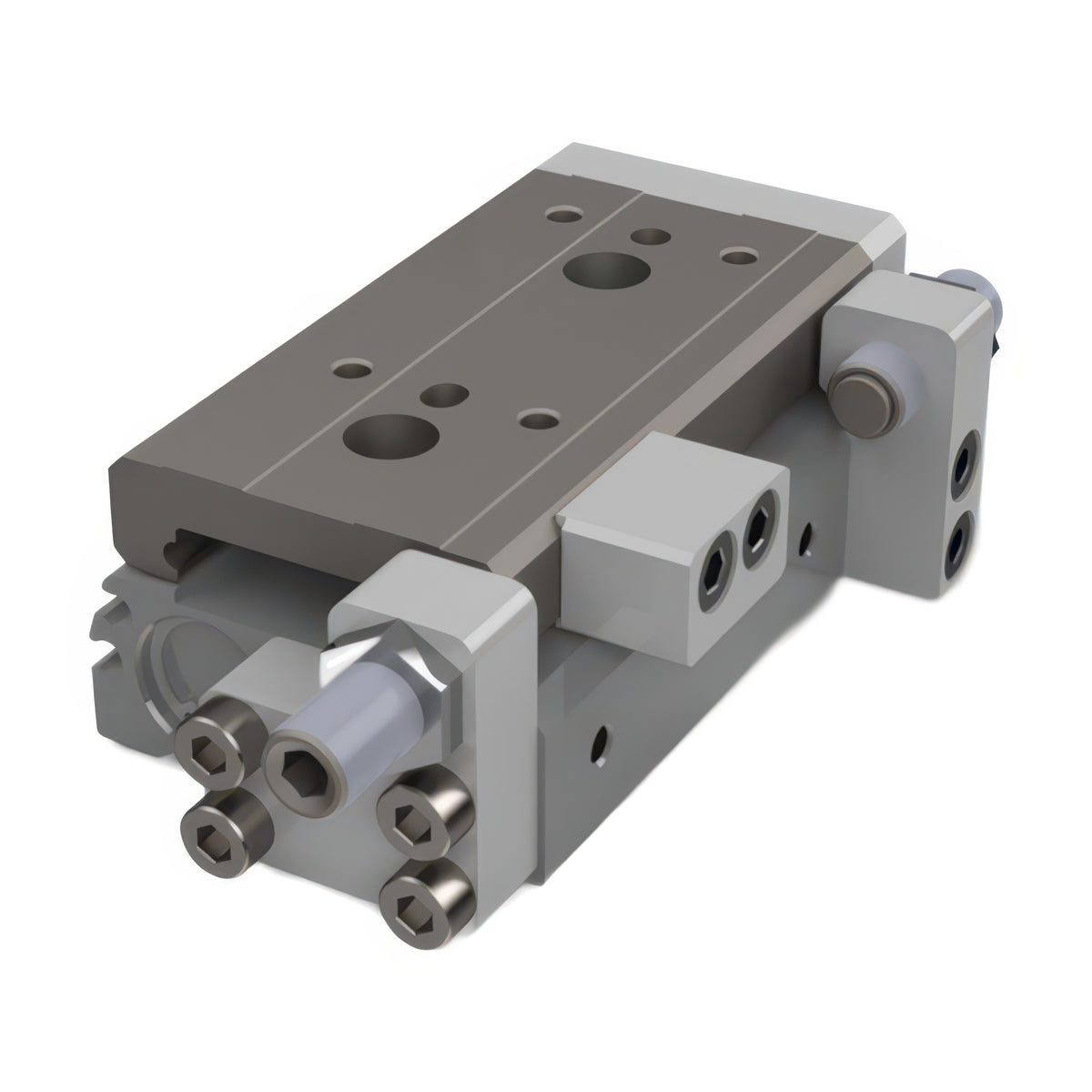

TPC Mechatronics NLGD Series High-Precision Table Cylinder (Dual Rod, Integrated LM Guide)

TPC Mechatronics NLGD Series High-Precision Table Cylinder (Dual Rod, Integrated LM Guide)

The NLGD series is a high-precision double-acting table cylinder with a table-integrated LM guide, offered in bore sizes 6, 8, 12, 16, 20 and 25 mm in standard and symmetric (L) port versions.

Key features

  • A recirculating ball guide with two rows of medium-preload balls minimizes clearance and gives higher load capacity, parallelism and running accuracy than the NLPD series
  • Positioning pin holes on the plate, table and body improve mounting repeatability, and the cylinder can be mounted from three directions
  • Operating pressure is 0.15 to 0.7 MPa, temperature -10 to 60 C and speed 50 to 500 mm/s (50 to 200 mm/s with metal stopper), without lubrication
  • Options include damper stoppers, metal stoppers and shock absorbers at either end, auto switches, and a secondary-battery compatible version

Specifications

Acting Double
Pressure range 0.15-0.7 MPa
Speed 50-500 mm/s
NLGD06 Bore: 6 mm | Rod diameter: 3 mm | Type: Standard (port on right) | Stroke range: 10-50 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 29 N | Mass: 100-200 g
NLGD06L Bore: 6 mm | Rod diameter: 3 mm | Type: Symmetric (port on left) | Stroke range: 10-50 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 29 N | Mass: 100-200 g
NLGD08 Bore: 8 mm | Rod diameter: 4 mm | Type: Standard (port on right) | Stroke range: 10-75 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 51 N | Mass: 140-385 g
NLGD08L Bore: 8 mm | Rod diameter: 4 mm | Type: Symmetric (port on left) | Stroke range: 10-75 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 51 N | Mass: 140-385 g
NLGD12 Bore: 12 mm | Rod diameter: 6 mm | Type: Standard (port on right) | Stroke range: 10-100 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 113 N | Mass: 335-735 g
NLGD12L Bore: 12 mm | Rod diameter: 6 mm | Type: Symmetric (port on left) | Stroke range: 10-100 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 113 N | Mass: 335-735 g
NLGD16 Bore: 16 mm | Rod diameter: 8 mm | Type: Standard (port on right) | Stroke range: 10-125 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 201 N | Mass: 595-1390 g
NLGD16L Bore: 16 mm | Rod diameter: 8 mm | Type: Symmetric (port on left) | Stroke range: 10-125 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 201 N | Mass: 595-1390 g
NLGD20 Bore: 20 mm | Rod diameter: 10 mm | Type: Standard (port on right) | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 314 N | Mass: 1085-2890 g
NLGD20L Bore: 20 mm | Rod diameter: 10 mm | Type: Symmetric (port on left) | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 314 N | Mass: 1085-2890 g
NLGD25 Bore: 25 mm | Rod diameter: 12 mm | Type: Standard (port on right) | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 491 N | Mass: 1725-4680 g
NLGD25L Bore: 25 mm | Rod diameter: 12 mm | Type: Symmetric (port on left) | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 491 N | Mass: 1725-4680 g
Pneumatic CylindersTPC Mechatronics
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NLGD Series High-Precision Table Cylinder (Dual Rod, Integrated LM Guide)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (12)

NLGD06, NLGD06L, NLGD08, NLGD08L, NLGD12, NLGD12L, NLGD16, NLGD16L, NLGD20, NLGD20L + 2 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NLGD06Bore: 6 mm | Rod diameter: 3 mm | Type: Standard (port on right) | Stroke range: 10-50 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 29 N | Mass: 100-200 g
NLGD06LBore: 6 mm | Rod diameter: 3 mm | Type: Symmetric (port on left) | Stroke range: 10-50 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 29 N | Mass: 100-200 g
NLGD08Bore: 8 mm | Rod diameter: 4 mm | Type: Standard (port on right) | Stroke range: 10-75 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 51 N | Mass: 140-385 g
NLGD08LBore: 8 mm | Rod diameter: 4 mm | Type: Symmetric (port on left) | Stroke range: 10-75 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 51 N | Mass: 140-385 g
NLGD12Bore: 12 mm | Rod diameter: 6 mm | Type: Standard (port on right) | Stroke range: 10-100 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 113 N | Mass: 335-735 g
NLGD12LBore: 12 mm | Rod diameter: 6 mm | Type: Symmetric (port on left) | Stroke range: 10-100 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 113 N | Mass: 335-735 g
NLGD16Bore: 16 mm | Rod diameter: 8 mm | Type: Standard (port on right) | Stroke range: 10-125 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 201 N | Mass: 595-1390 g
NLGD16LBore: 16 mm | Rod diameter: 8 mm | Type: Symmetric (port on left) | Stroke range: 10-125 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 201 N | Mass: 595-1390 g
NLGD20Bore: 20 mm | Rod diameter: 10 mm | Type: Standard (port on right) | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 314 N | Mass: 1085-2890 g
NLGD20LBore: 20 mm | Rod diameter: 10 mm | Type: Symmetric (port on left) | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 314 N | Mass: 1085-2890 g
NLGD25Bore: 25 mm | Rod diameter: 12 mm | Type: Standard (port on right) | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 491 N | Mass: 1725-4680 g
NLGD25LBore: 25 mm | Rod diameter: 12 mm | Type: Symmetric (port on left) | Stroke range: 10-150 mm | Acting: Double | Pressure range: 0.15-0.7 MPa | Speed: 50-500 mm/s | Theoretical force (extend, 0.5 MPa): 491 N | Mass: 1725-4680 g
