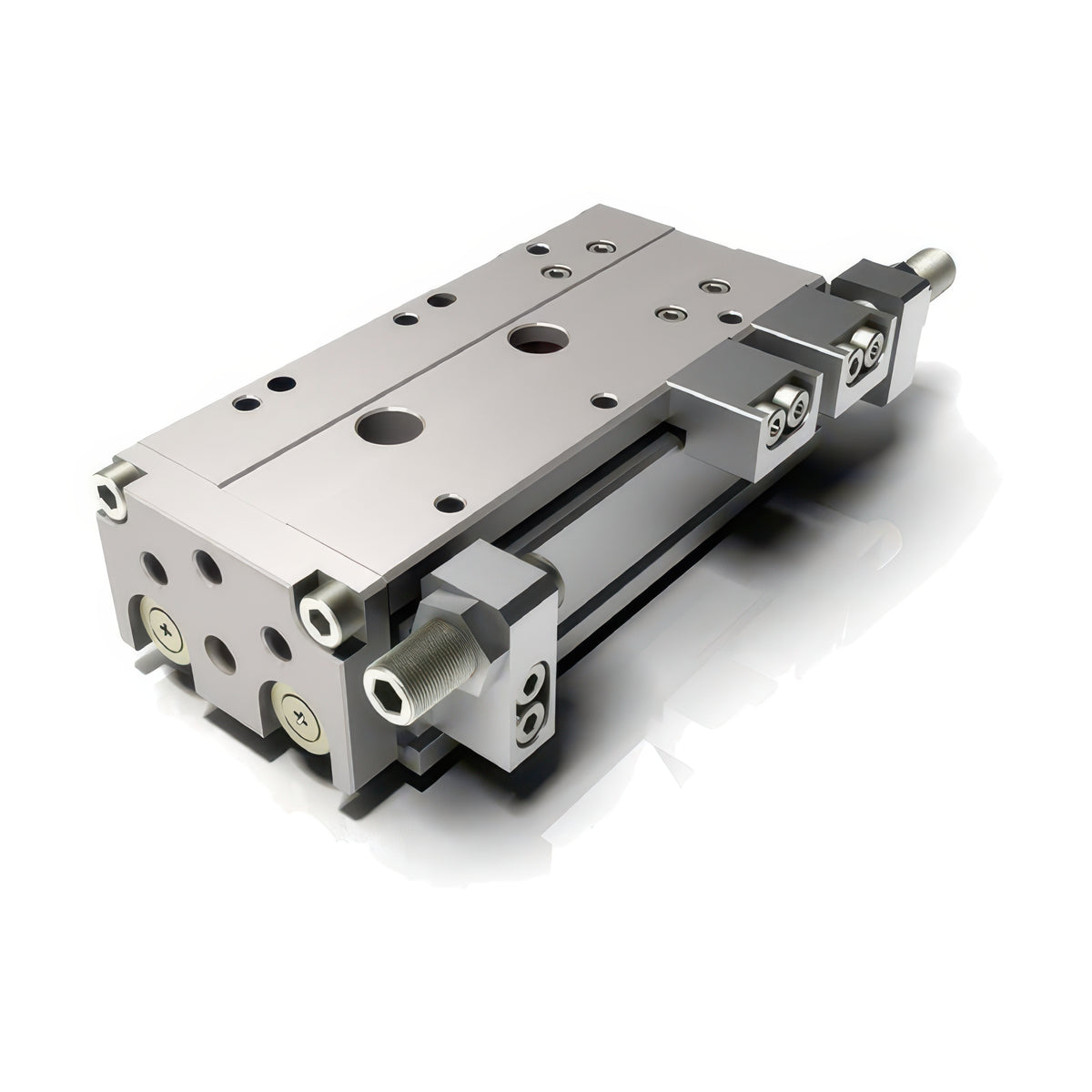

TPC Mechatronics NLPD Series Table Cylinder Stroke Adjuster Units

Stroke adjuster units for NLPD series precision table cylinders and the CR/CV clean-room NLPD versions.

Key features

RF units mount at the extend end and RB units at the retract end, using a rubber damper with an adjustment range of 5 mm standard, 15 mm or 25 mm (6 mm bore: 5 or 15 mm)
Shock absorber units SF (extend end) and SB (retract end) are available for bore sizes 8 to 32 mm
Units are ordered separately by bore size, adjuster type and adjustment range

NLPD06-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD06 \| Adjustment range: 5 mm
NLPD06-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD06 \| Adjustment range: 15 mm
NLPD08-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD08 \| Adjustment range: 5 mm
NLPD08-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD08 \| Adjustment range: 15 mm
NLPD08-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD08 \| Adjustment range: 25 mm
NLPD12-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD12 \| Adjustment range: 5 mm
NLPD12-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD12 \| Adjustment range: 15 mm
NLPD12-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD12 \| Adjustment range: 25 mm
NLPD16-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD16 \| Adjustment range: 5 mm
NLPD16-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD16 \| Adjustment range: 15 mm
NLPD16-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD16 \| Adjustment range: 25 mm
NLPD20-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD20 \| Adjustment range: 5 mm
NLPD20-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD20 \| Adjustment range: 15 mm
NLPD20-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD20 \| Adjustment range: 25 mm
NLPD25-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD25 \| Adjustment range: 5 mm
NLPD25-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD25 \| Adjustment range: 15 mm
NLPD25-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD25 \| Adjustment range: 25 mm
NLPD32-RF		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD32 \| Adjustment range: 5 mm
NLPD32-RF15		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD32 \| Adjustment range: 15 mm
NLPD32-RF25		Type: Extend-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD32 \| Adjustment range: 25 mm
NLPD06-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD06 \| Adjustment range: 5 mm
NLPD06-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD06 \| Adjustment range: 15 mm
NLPD08-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD08 \| Adjustment range: 5 mm
NLPD08-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD08 \| Adjustment range: 15 mm
NLPD08-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD08 \| Adjustment range: 25 mm
NLPD12-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD12 \| Adjustment range: 5 mm
NLPD12-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD12 \| Adjustment range: 15 mm
NLPD12-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD12 \| Adjustment range: 25 mm
NLPD16-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD16 \| Adjustment range: 5 mm
NLPD16-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD16 \| Adjustment range: 15 mm
NLPD16-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD16 \| Adjustment range: 25 mm
NLPD20-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD20 \| Adjustment range: 5 mm
NLPD20-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD20 \| Adjustment range: 15 mm
NLPD20-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD20 \| Adjustment range: 25 mm
NLPD25-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD25 \| Adjustment range: 5 mm
NLPD25-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD25 \| Adjustment range: 15 mm
NLPD25-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD25 \| Adjustment range: 25 mm
NLPD32-RB		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD32 \| Adjustment range: 5 mm
NLPD32-RB15		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD32 \| Adjustment range: 15 mm
NLPD32-RB25		Type: Retract-end stroke adjuster, rubber damper \| Applicable cylinder: NLPD32 \| Adjustment range: 25 mm
NLPD08-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLPD08
NLPD12-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLPD12
NLPD16-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLPD16
NLPD20-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLPD20
NLPD25-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLPD25
NLPD32-SF		Type: Extend-end shock absorber unit \| Applicable cylinder: NLPD32
NLPD08-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLPD08
NLPD12-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLPD12
NLPD16-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLPD16
NLPD20-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLPD20
NLPD25-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLPD25
NLPD32-SB		Type: Retract-end shock absorber unit \| Applicable cylinder: NLPD32

Cylinder AccessoriesTPC Mechatronics

52 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NLPD Series Table Cylinder Stroke Adjuster Units

Brand TPC Mechatronics·Cylinder Accessories

Available part numbers (52)

NLPD06-RF, NLPD06-RF15, NLPD08-RF, NLPD08-RF15, NLPD08-RF25, NLPD12-RF, NLPD12-RF15, NLPD12-RF25, NLPD16-RF, NLPD16-RF15 + 42 more — see full table ↓
