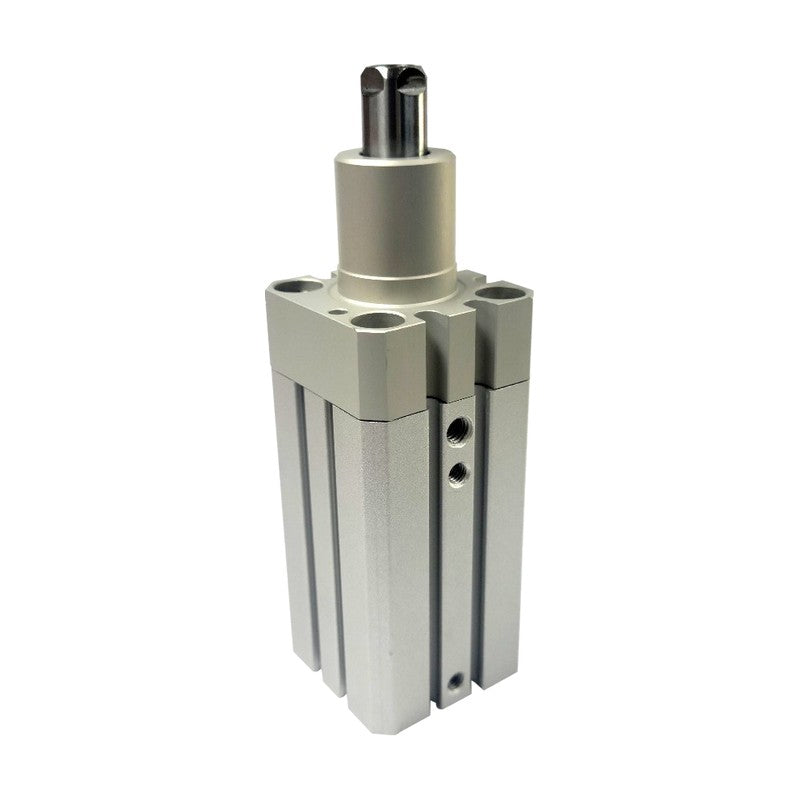

TPC Mechatronics NSK Series Pneumatic Swing Clamp Cylinder

TPC Mechatronics NSK Series Pneumatic Swing Clamp Cylinder

The NSK series is a double-acting pneumatic swing clamp cylinder whose piston rod rotates 90 degrees before making a straight clamping stroke.

Key features

  • Left-hand (L) and right-hand (R) rotation versions are offered, and auto switches can be mounted inside the square tube grooves
  • The body is compact with a clean profile, and a coil scraper is fitted on the larger bores
  • Mounting is by through holes and taps in the tube or by an optional head-side flange, and the cylinder must be installed vertically
  • It runs without lubrication at piston speeds of 50 to 200 mm/s and ambient temperatures of -5 to 60 C

Specifications

Clamp stroke 10, 20 mm
Fluid Air
Acting Double acting
Rotation angle 90 deg +/-10 deg
Stroke tolerance 0 to +1.4 mm
Proof pressure 15 kgf/cm2 (approx. 1.5 MPa)
Max. operating pressure 9.9 kgf/cm2 (approx. 0.97 MPa)
Min. operating pressure 1.0 kgf/cm2 (approx. 0.1 MPa)
Piston speed 50 to 200 mm/s
Ambient and fluid temperature -5 to 60 C
Lubrication Not required
NSK12 Bore: 12 mm | Rod dia: 6 mm | Swing stroke: 7.5 mm | Clamp stroke: 10, 20 mm | Port: M5x0.8 | Theoretical clamp force at 5 kgf/cm2: 4 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.07 kg (10 mm), 0.09 kg (20 mm)
NSK16 Bore: 16 mm | Rod dia: 8 mm | Swing stroke: 7.5 mm | Clamp stroke: 10, 20 mm | Port: M5x0.8 | Theoretical clamp force at 5 kgf/cm2: 7.5 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.1 kg (10 mm), 0.12 kg (20 mm)
NSK20 Bore: 20 mm | Rod dia: 12 mm | Swing stroke: 9.5 mm | Clamp stroke: 10, 20 mm | Port: M5x0.8 | Theoretical clamp force at 5 kgf/cm2: 10 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.26 kg (10 mm), 0.29 kg (20 mm)
NSK25 Bore: 25 mm | Rod dia: 12 mm | Swing stroke: 9.5 mm | Clamp stroke: 10, 20 mm | Port: M5x0.8 | Theoretical clamp force at 5 kgf/cm2: 18.5 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.32 kg (10 mm), 0.35 kg (20 mm)
NSK32 Bore: 32 mm | Rod dia: 16 mm | Swing stroke: 15 mm | Clamp stroke: 10, 20 mm | Port: Rc(PT) 1/8 | Theoretical clamp force at 5 kgf/cm2: 30 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.5 kg (10 mm), 0.54 kg (20 mm)
Clamp CylindersTPC Mechatronics
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NSK Series Pneumatic Swing Clamp Cylinder

Brand TPC Mechatronics·Clamp Cylinders

Available part numbers (5)

NSK12, NSK16, NSK20, NSK25, NSK32

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NSK12Bore: 12 mm | Rod dia: 6 mm | Swing stroke: 7.5 mm | Clamp stroke: 10, 20 mm | Port: M5x0.8 | Theoretical clamp force at 5 kgf/cm2: 4 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.07 kg (10 mm), 0.09 kg (20 mm)
NSK16Bore: 16 mm | Rod dia: 8 mm | Swing stroke: 7.5 mm | Clamp stroke: 10, 20 mm | Port: M5x0.8 | Theoretical clamp force at 5 kgf/cm2: 7.5 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.1 kg (10 mm), 0.12 kg (20 mm)
NSK20Bore: 20 mm | Rod dia: 12 mm | Swing stroke: 9.5 mm | Clamp stroke: 10, 20 mm | Port: M5x0.8 | Theoretical clamp force at 5 kgf/cm2: 10 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.26 kg (10 mm), 0.29 kg (20 mm)
NSK25Bore: 25 mm | Rod dia: 12 mm | Swing stroke: 9.5 mm | Clamp stroke: 10, 20 mm | Port: M5x0.8 | Theoretical clamp force at 5 kgf/cm2: 18.5 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.32 kg (10 mm), 0.35 kg (20 mm)
NSK32Bore: 32 mm | Rod dia: 16 mm | Swing stroke: 15 mm | Clamp stroke: 10, 20 mm | Port: Rc(PT) 1/8 | Theoretical clamp force at 5 kgf/cm2: 30 kgf | Fluid: Air | Acting: Double acting | Rotation angle: 90 deg +/-10 deg | Stroke tolerance: 0 to +1.4 mm | Proof pressure: 15 kgf/cm2 (approx. 1.5 MPa) | Max. operating pressure: 9.9 kgf/cm2 (approx. 0.97 MPa) | Min. operating pressure: 1.0 kgf/cm2 (approx. 0.1 MPa) | Piston speed: 50 to 200 mm/s | Ambient and fluid temperature: -5 to 60 C | Lubrication: Not required | Cylinder mass: 0.5 kg (10 mm), 0.54 kg (20 mm)
