TPC Mechatronics NSK Swing Clamp Cylinder, Bore 40-63 mm

TPC Mechatronics NSK Swing Clamp Cylinder, Bore 40-63 mm

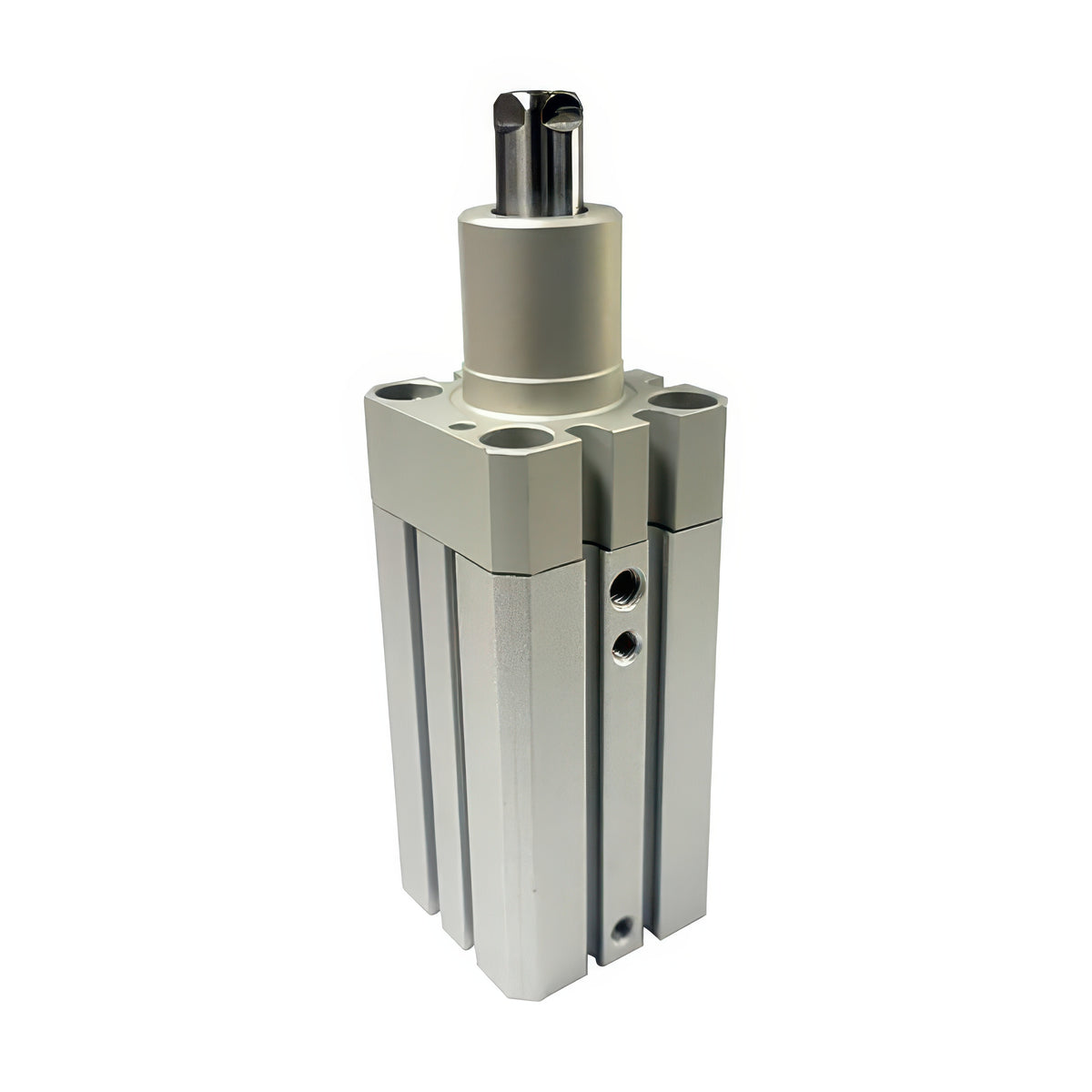

The NSK swing clamp cylinder rotates its piston rod 90 degrees and then clamps in a straight stroke, here in the larger bores 40, 50 and 63 mm.

Key features

  • Auto switches mount inside the square tube rail, keeping the outline compact
  • Maximum operating pressure is 1 MPa, and these sizes are fitted with a coil scraper
  • Left- or right-hand rotation, swing arm plates and head flange mounting are available
  • The cylinder must be installed vertically

Specifications

Swing angle 90 +/-10 deg
Rotation direction R (counterclockwise on extend) or L (clockwise on extend)
Acting Double
Max pressure 9.9 kgf/cm2
Min pressure 1.0 kgf/cm2
Proof pressure 15 kgf/cm2
Speed 50-200 mm/s
Mounting B through holes and taps (standard), G head flange
NSK40 Bore: 40 mm | Rod diameter: 16 mm | Port: Rc 1/8 | Straight (clamp) strokes: 10, 20 mm | Swing angle: 90 +/-10 deg | Rotation direction: R (counterclockwise on extend) or L (clockwise on extend) | Acting: Double | Max pressure: 9.9 kgf/cm2 | Min pressure: 1.0 kgf/cm2 | Proof pressure: 15 kgf/cm2 | Speed: 50-200 mm/s | Clamp force at 5 kgf/cm2: 52.5 kgf | Mounting: B through holes and taps (standard), G head flange | Coil scraper fitted
NSK50 Bore: 50 mm | Rod diameter: 20 mm | Port: Rc 1/4 | Straight (clamp) strokes: 20, 50 mm | Swing angle: 90 +/-10 deg | Rotation direction: R (counterclockwise on extend) or L (clockwise on extend) | Acting: Double | Max pressure: 9.9 kgf/cm2 | Min pressure: 1.0 kgf/cm2 | Proof pressure: 15 kgf/cm2 | Speed: 50-200 mm/s | Clamp force at 5 kgf/cm2: 82 kgf | Mounting: B through holes and taps (standard), G head flange | Coil scraper fitted
NSK63 Bore: 63 mm | Rod diameter: 20 mm | Port: Rc 1/4 | Straight (clamp) strokes: 20, 50 mm | Swing angle: 90 +/-10 deg | Rotation direction: R (counterclockwise on extend) or L (clockwise on extend) | Acting: Double | Max pressure: 9.9 kgf/cm2 | Min pressure: 1.0 kgf/cm2 | Proof pressure: 15 kgf/cm2 | Speed: 50-200 mm/s | Clamp force at 5 kgf/cm2: 140 kgf | Mounting: B through holes and taps (standard), G head flange | Coil scraper fitted
