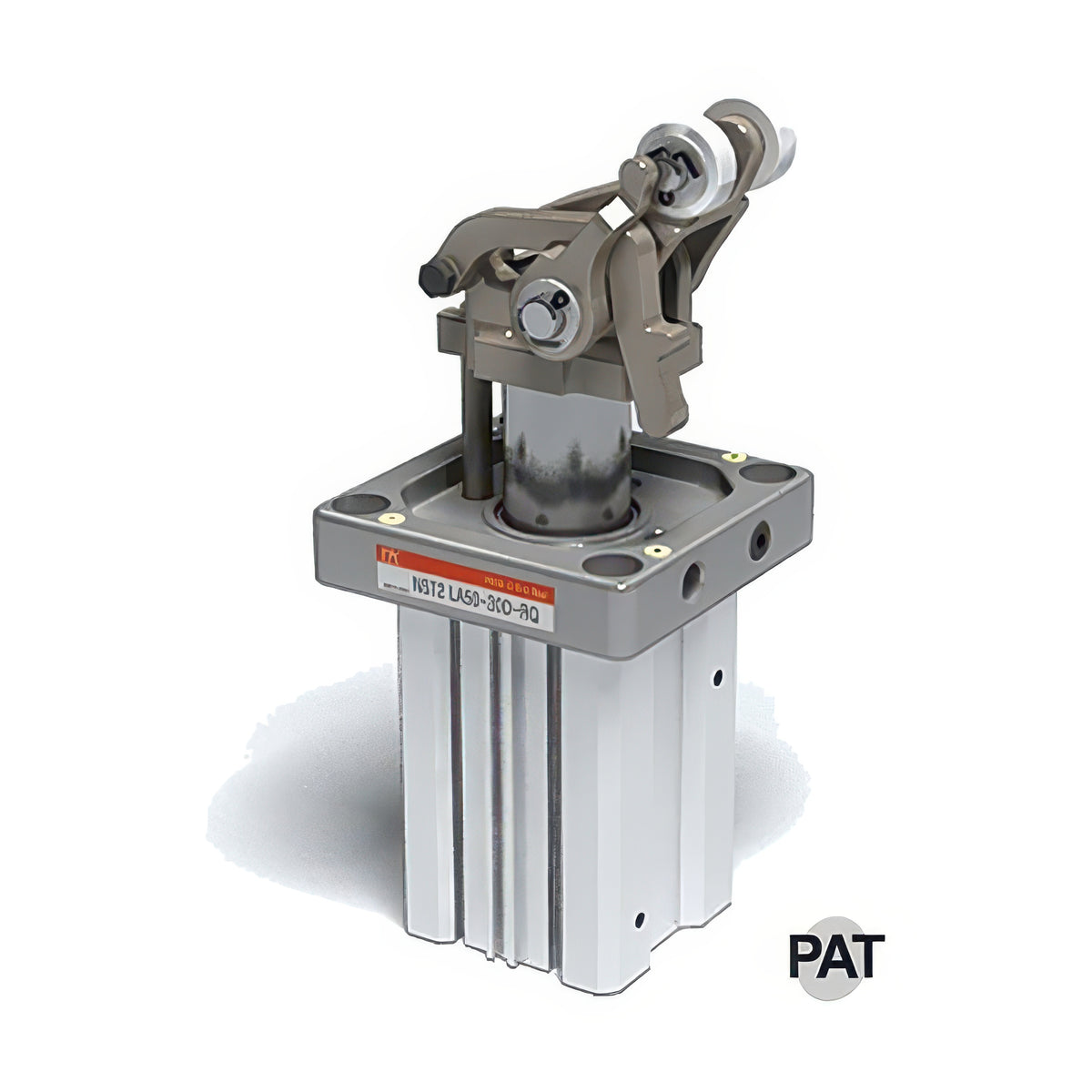

TPC Mechatronics NST2 Series Stopper Cylinder (Reverse-Direction Lever Lock Release, Bore 50 mm)

TPC Mechatronics NST2 Series Stopper Cylinder (Reverse-Direction Lever Lock Release, Bore 50 mm)

The NST2 series is the second-generation lever-type stopper cylinder in 50 mm bore that can release the lever lock for pallets travelling in the reverse direction.

Key features

  • The lever position can be changed in 90 degree steps to four directions, and a built-in shock absorber is easy to maintain and replace
  • It is available as single acting, double acting or double acting with spring return, with resin or rolled steel rollers
  • Compact auto switches can be mounted
  • Operating pressure range is 0.1 to 1.0 MPa with rubber cushion, -5 to 60 C, non-lubricated, flange mounting

Specifications

Bore 50 mm
Rod dia 32 mm
Acting Single acting retract, double acting, double acting with spring return
Proof pressure 1.5 MPa
Pressure range 0.1-1.0 MPa
Temperature -5 to 60 C
Cushion Rubber
Mounting Flange
NST2LA50 Type: Rectangular flange cover (standard) | Strokes: 25, 30, 40 mm | Bore: 50 mm | Rod dia: 32 mm | Acting: Single acting retract, double acting, double acting with spring return | Proof pressure: 1.5 MPa | Pressure range: 0.1-1.0 MPa | Temperature: -5 to 60 C | Cushion: Rubber | Mounting: Flange | Mass: 2.17 kg (30 mm stroke)
NST2LC50 Type: Square rod cover | Stroke: 30 mm | Bore: 50 mm | Rod dia: 32 mm | Acting: Single acting retract, double acting, double acting with spring return | Proof pressure: 1.5 MPa | Pressure range: 0.1-1.0 MPa | Temperature: -5 to 60 C | Cushion: Rubber | Mounting: Flange | Mass: 2.18 kg (30 mm stroke)
Pneumatic CylindersTPC Mechatronics
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NST2 Series Stopper Cylinder (Reverse-Direction Lever Lock Release, Bore 50 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (2)

NST2LA50, NST2LC50

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NST2LA50Type: Rectangular flange cover (standard) | Strokes: 25, 30, 40 mm | Bore: 50 mm | Rod dia: 32 mm | Acting: Single acting retract, double acting, double acting with spring return | Proof pressure: 1.5 MPa | Pressure range: 0.1-1.0 MPa | Temperature: -5 to 60 C | Cushion: Rubber | Mounting: Flange | Mass: 2.17 kg (30 mm stroke)
NST2LC50Type: Square rod cover | Stroke: 30 mm | Bore: 50 mm | Rod dia: 32 mm | Acting: Single acting retract, double acting, double acting with spring return | Proof pressure: 1.5 MPa | Pressure range: 0.1-1.0 MPa | Temperature: -5 to 60 C | Cushion: Rubber | Mounting: Flange | Mass: 2.18 kg (30 mm stroke)
