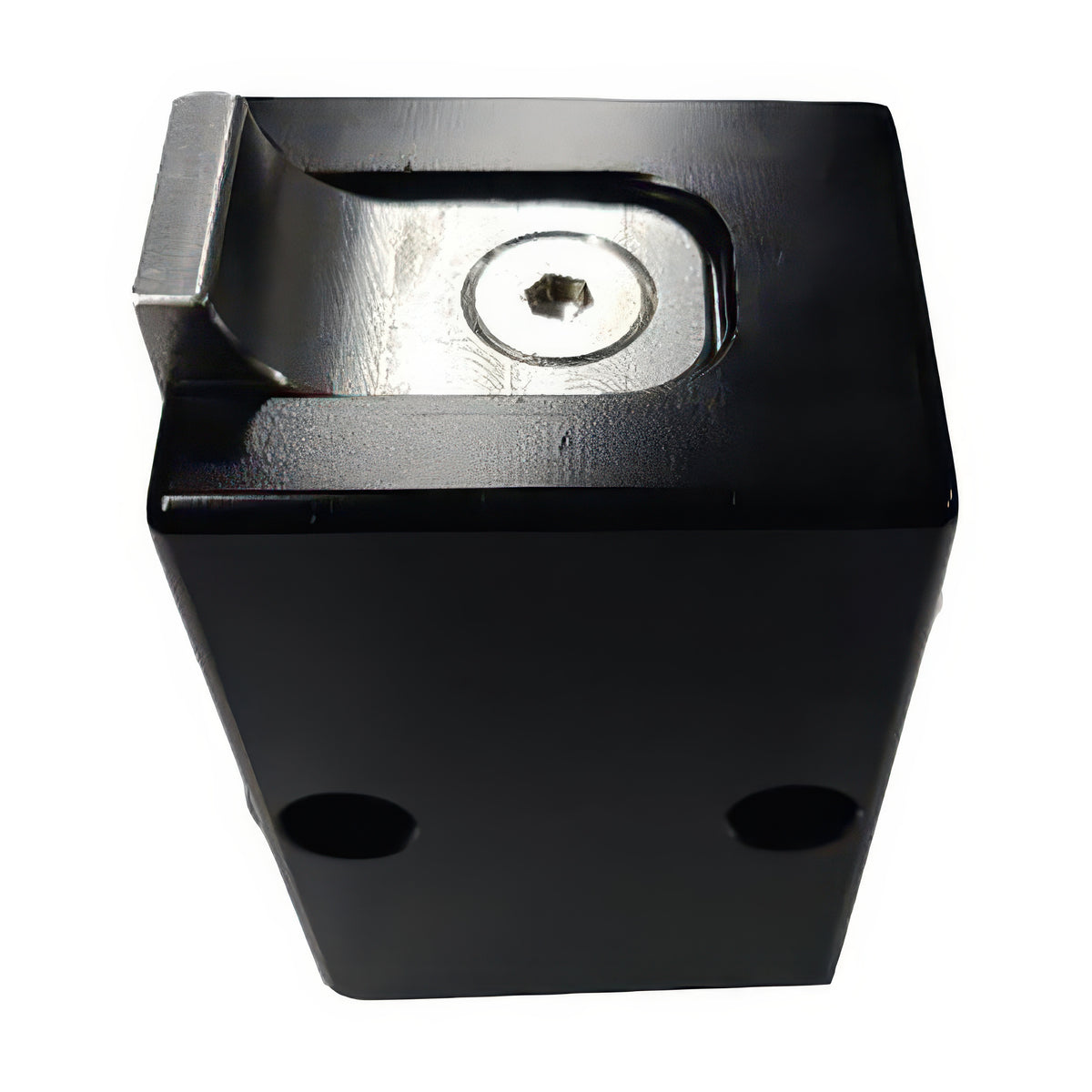

TPC Mechatronics NSUN Series Non-Damper Stopper Cylinder (Lift-Down Type)

TPC Mechatronics NSUN Series Non-Damper Stopper Cylinder (Lift-Down Type)

The NSUN series is a compact pneumatic stopper cylinder without damper that stops pallets on conveyor lines and lowers to release them.

Key features

  • It is single-acting with spring return, has an 8 mm lowering stroke and handles transported loads up to 200 kg depending on conveyor speed
  • A version with a built-in magnet accepts auto switches for position sensing
  • Operating pressure is 0.4 to 0.6 MPa on non-lubricated air at an ambient temperature of 5 to 60 C

Specifications

Type Non-damper stopper (lift-down)
Acting Single (spring return)
Max. transported load 200 kg
Lowering stroke 8 mm
Allowable load vs conveyor speed 50 kg at 18 m/min, 70 kg at 15 m/min, 100 kg at 12 m/min, 140 kg at 9 m/min, 200 kg at 6 m/min
Medium Air
Proof pressure 0.9 MPa
Operating pressure 0.4-0.6 MPa
Ambient temperature 5-60 C
Lubrication Not required
NSUN20-08TB Type: Non-damper stopper (lift-down) | Acting: Single (spring return) | Max. transported load: 200 kg | Lowering stroke: 8 mm | Allowable load vs conveyor speed: 50 kg at 18 m/min, 70 kg at 15 m/min, 100 kg at 12 m/min, 140 kg at 9 m/min, 200 kg at 6 m/min | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required | Auto switch magnet: No
NDSUN20-08TB Type: Non-damper stopper (lift-down) | Acting: Single (spring return) | Max. transported load: 200 kg | Lowering stroke: 8 mm | Allowable load vs conveyor speed: 50 kg at 18 m/min, 70 kg at 15 m/min, 100 kg at 12 m/min, 140 kg at 9 m/min, 200 kg at 6 m/min | Medium: Air | Proof pressure: 0.9 MPa | Operating pressure: 0.4-0.6 MPa | Ambient temperature: 5-60 C | Lubrication: Not required | Auto switch magnet: Built-in
Pneumatic CylindersTPC Mechatronics
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NSUN Series Non-Damper Stopper Cylinder (Lift-Down Type)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (2)

NSUN20-08TB, NDSUN20-08TB
