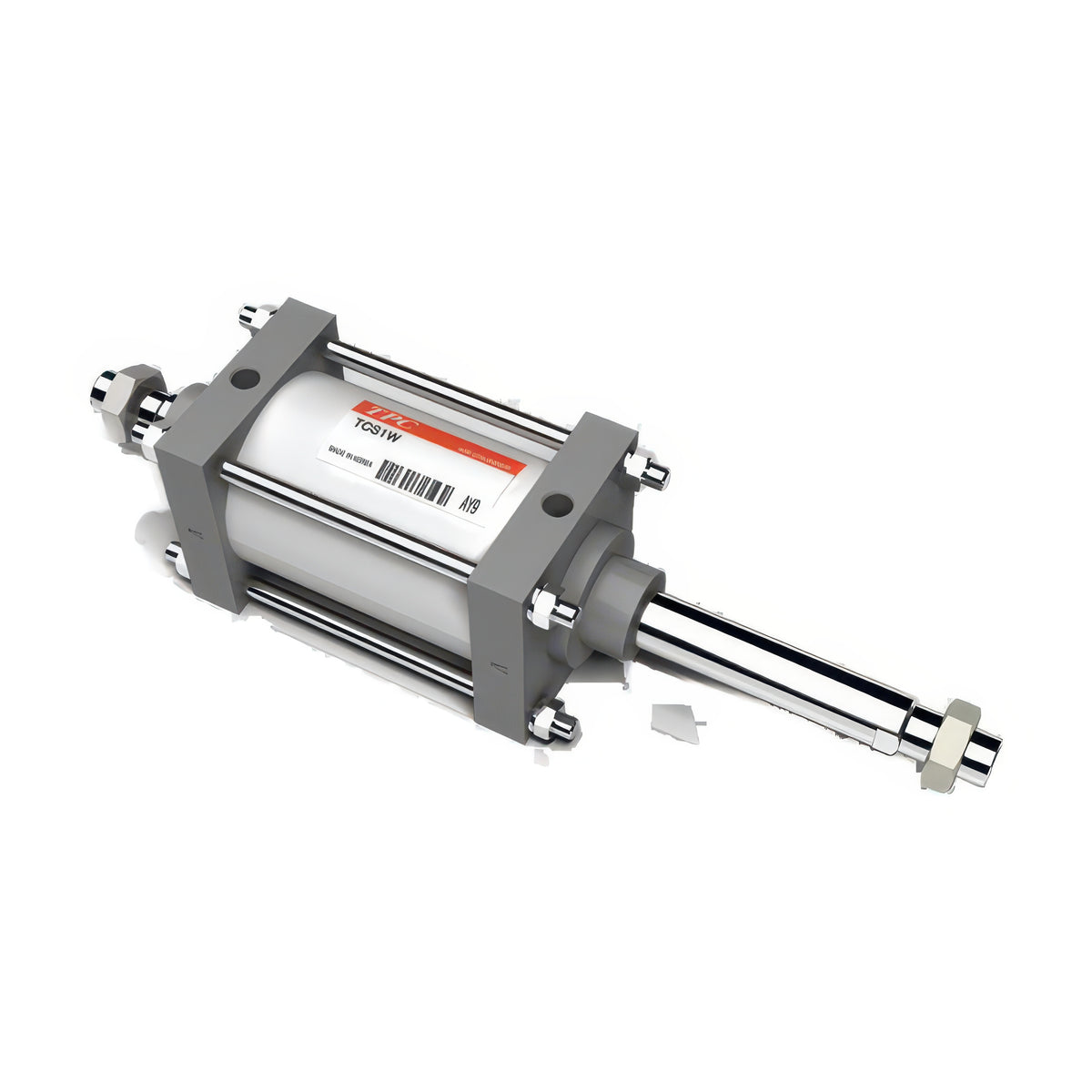

TPC Mechatronics TCS1W Series Double-Rod Large-Bore Pneumatic Cylinder (Basic Mount)

TPC Mechatronics TCS1W Series Double-Rod Large-Bore Pneumatic Cylinder (Basic Mount)

The TCS1W series is a double-rod large-bore tie-rod pneumatic cylinder with steel covers, bores 125 to 300 mm.

Key features

  • The piston rod extends from both ends, giving equal force in both directions and a through rod for stoppers or detection
  • Codes TCS1WBN are composed for the basic mount, non-lube type with aluminium tube; bores 250 and 300 mm use the steel tube (F)
  • One-side or both-side bellows are available as options
  • The large construction gives high durability and performance

Specifications

Acting Double
Rod double rod (both ends)
Type N non-lube
Cover steel
Mounting options B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion
Operating pressure 0.05-0.9 MPa (proof 1.6 MPa)
Piston speed 50-500 mm/s
Cushion Yes
Ambient/fluid temperature 5-60 C
TCS1WBN125 Bore: 125 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBN140 Bore: 140 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBN160 Bore: 160 mm | Rod diameter: 40 mm | Rod end thread: M36x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBN180 Bore: 180 mm | Rod diameter: 45 mm | Rod end thread: M40x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBN200 Bore: 200 mm | Rod diameter: 50 mm | Rod end thread: M45x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBFN250 Bore: 250 mm | Rod diameter: 60 mm | Rod end thread: M56x2 | Port: Rc1 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: steel tube (F; aluminium tube not available) | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBFN300 Bore: 300 mm | Rod diameter: 70 mm | Rod end thread: M64x2 | Port: Rc1 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: steel tube (F; aluminium tube not available) | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
Pneumatic CylindersTPC Mechatronics
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics TCS1W Series Double-Rod Large-Bore Pneumatic Cylinder (Basic Mount)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (7)

TCS1WBN125, TCS1WBN140, TCS1WBN160, TCS1WBN180, TCS1WBN200, TCS1WBFN250, TCS1WBFN300

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCS1WBN125Bore: 125 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBN140Bore: 140 mm | Rod diameter: 36 mm | Rod end thread: M30x1.5 | Port: Rc1/2 | Stroke range: 30-1000 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBN160Bore: 160 mm | Rod diameter: 40 mm | Rod end thread: M36x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBN180Bore: 180 mm | Rod diameter: 45 mm | Rod end thread: M40x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBN200Bore: 200 mm | Rod diameter: 50 mm | Rod end thread: M45x1.5 | Port: Rc3/4 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: aluminium tube | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBFN250Bore: 250 mm | Rod diameter: 60 mm | Rod end thread: M56x2 | Port: Rc1 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: steel tube (F; aluminium tube not available) | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
TCS1WBFN300Bore: 300 mm | Rod diameter: 70 mm | Rod end thread: M64x2 | Port: Rc1 | Stroke range: 30-1200 mm | Acting: Double | Rod: double rod (both ends) | Type: N non-lube | Tube: steel tube (F; aluminium tube not available) | Cover: steel | Mounting options: B basic, L foot, F rod flange, G head flange, C single clevis, D double clevis, T center trunnion | Operating pressure: 0.05-0.9 MPa (proof 1.6 MPa) | Piston speed: 50-500 mm/s | Cushion: Yes | Ambient/fluid temperature: 5-60 C
