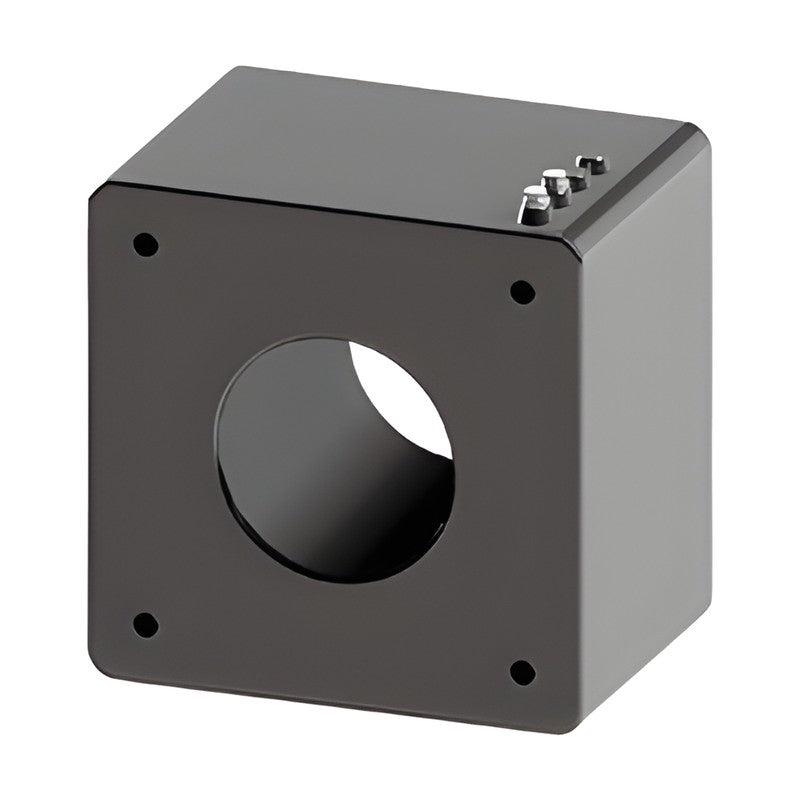

Woonyoung W01CBF Bushing-Type Current Transformer, 0.72kV Epoxy Mold, Square Body

Woonyoung W01CBF Bushing-Type Current Transformer, 0.72kV Epoxy Mold, Square Body

Square epoxy-molded window current transformer with 0.72 kV insulation class, offered in ratios from 50/5 A to 5000/5 A for metering and protection.

Key features

  • Epoxy mold insulation, 0.72 kV insulation class
  • Designed for metering and protection
  • For indoor service
  • Designed to IEC / IEEE standards
  • Wide ratio range from 50/5 A to 5000/5 A

Specifications

Insulation class 0.72 kV
Rated frequency 50/60 Hz
Insulation Epoxy mold
Service condition Indoor
Standard IEC / IEEE
Current ratios 50, 75, 100, 150, 200, 300, 400, 500, 600, 800, 1000, 1200, 1500, 2000, 2500, 3000, 4000, 5000 / 5 A
Metering burdens B-0.1 / B-0.2 / B-0.5 / B-0.9 / B-1.8 (accuracy 0.3 to 4.8 depending on ratio)
W01CBF Rated current: 50/5 A to 5000/5 A | Relay class: C-20 to C-400 | Short-time current: 25 kA
Current TransformersWoonyoung
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung W01CBF Bushing-Type Current Transformer, 0.72kV Epoxy Mold, Square Body

Brand Woonyoung·Current Transformers

Available part numbers (1)

W01CBF

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
W01CBFRated current: 50/5 A to 5000/5 A | Relay class: C-20 to C-400 | Short-time current: 25 kA
