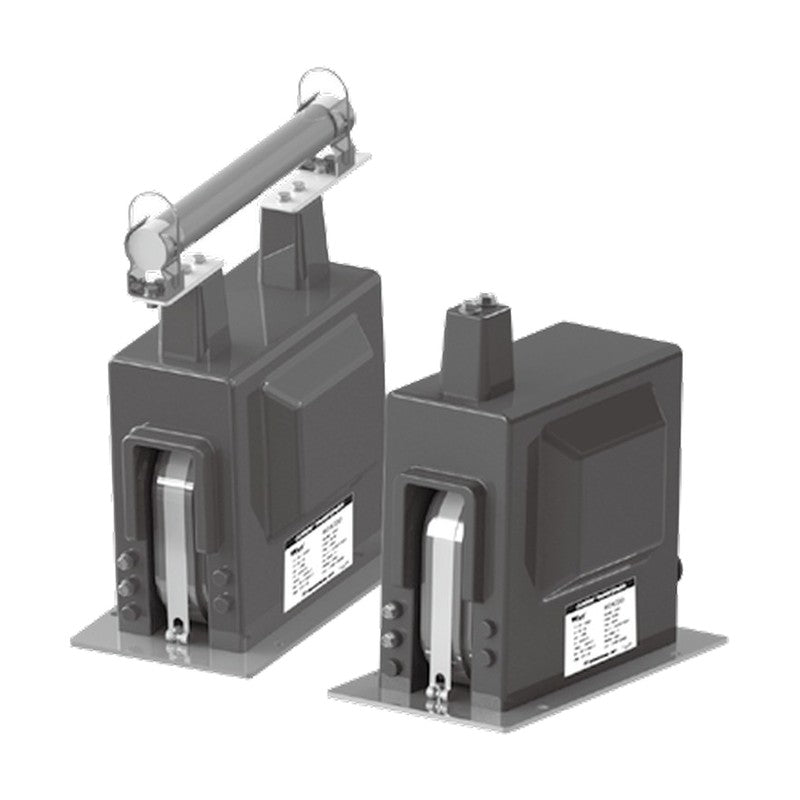

Indoor epoxy-resin cast single-pole earthed voltage transformer (EVT) connected line-to-earth for systems up to 24 (25.8) kV, stepping down primary voltage for metering instruments and protective relays.

Key features

  • Epoxy resin cast insulation for systems up to 24 (25.8) kV
  • Stable insulation and electrical characteristics with good mechanical strength
  • Easy to maintain; available with single or multiple secondary taps
  • Designed for metering and/or protection, indoor service
  • Manufactured by automatic vacuum casting or APG

Specifications

Highest voltage for equipment (Um) 17.5 kV / 24 (25.8) kV
Power-frequency withstand voltage (60 s) 38 kV / 50 kV
Lightning impulse withstand voltage (1.2/50 us) 95 kV / 125 kV
Rated frequency 50 Hz, 60 Hz, others on request
Rated primary voltage 13800/sqrt3 V, 22000/sqrt3 V, 22900/sqrt3 V
Rated secondary voltage 110/sqrt3 V, 190/sqrt3 V, 380/sqrt3 V
Rated voltage factor 1.2 cont., 1.5/30 s, 1.9/30 s, 1.9/8 h
Thermal limit burden 800 VA
Insulation class (IEC 60085) E
Standard IEC / IEEE / KS / JEC, etc.
W24V1D(F) Variant: Fuse type (F) | Highest voltage: 17.5 kV / 24 (25.8) kV | Rated primary voltage: 13800/sqrt3 V, 22000/sqrt3 V, 22900/sqrt3 V | Weight: 30 kg
W24V1D Variant: Without fuse | Highest voltage: 17.5 kV / 24 (25.8) kV | Rated primary voltage: 13800/sqrt3 V, 22000/sqrt3 V, 22900/sqrt3 V | Weight: 30 kg
