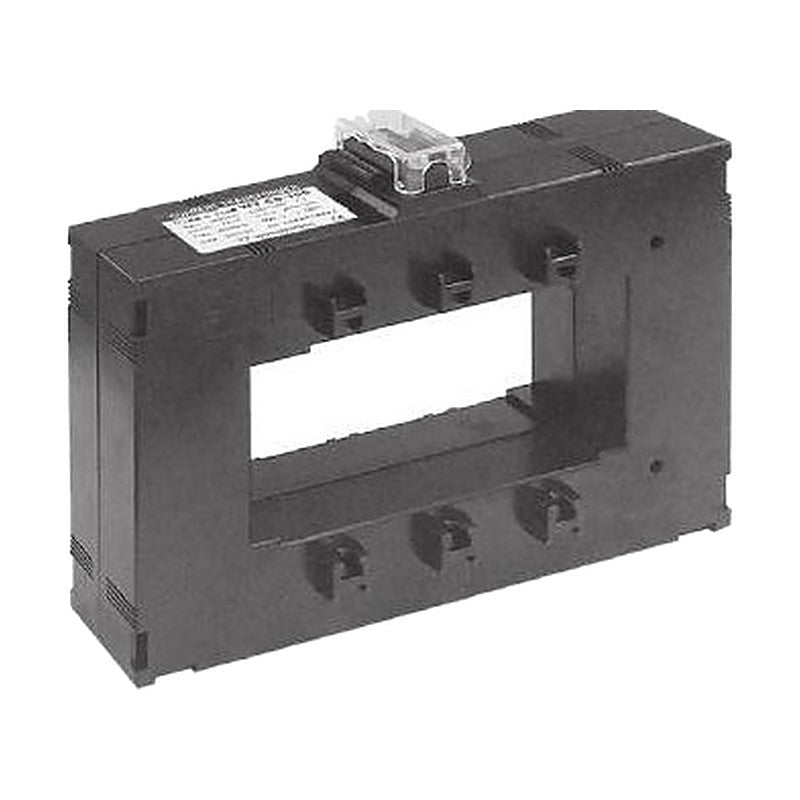

Woonyoung WYCS-125/135/165 Metering Busbar Current Transformer, 1200-6000 A

Woonyoung WYCS-125/135/165 Metering Busbar Current Transformer, 1200-6000 A

Large-window busbar-through metering current transformer for 1200-6000 A primaries, class 0.5 or 1.

Key features

  • Three-busbar window for high-current panels
  • Class 0.5 or 1, burden 15 or 40 VA
  • Polycarbonate case with protective cover; M5 secondary terminals
  • Easy panel mounting kit
  • KC (KS) and CE marked

Specifications

Standards KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Maximum voltage 0.72-1.2 kV
Short-time overcurrent 40 In / 1 s
Frequency 50 or 60 Hz
Installation Indoor
Operating temperature -10 to 55 C
Humidity 80% RH
Color Black
Type Square, busbar-through, metering
Secondary 5 A or 1 A
Burden 15 or 40 VA
Class 0.5 or 1
WYCS-125 Primary: 1200, 1500, 2000 A | Weight: approx. 3.0 kg | Dimensions: W 184, H 149.5, D 75 mm
WYCS-135 Primary: 2500, 3000, 3200, 3500, 4000 A | Weight: approx. 3.2 kg | Dimensions: W 185.4, H 177.2, D 75 mm
WYCS-165 Primary: 2500, 3000, 3200, 3500, 4000, 5000, 6000 A | Weight: approx. 3.8 kg (2500-3500 A), 4.1 kg (4000-6000 A) | Dimensions: W 256.4, H 199.2, D 75 mm
Current TransformersWoonyoung
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYCS-125/135/165 Metering Busbar Current Transformer, 1200-6000 A

Brand Woonyoung·Current Transformers

Available part numbers (3)

WYCS-125, WYCS-135, WYCS-165
