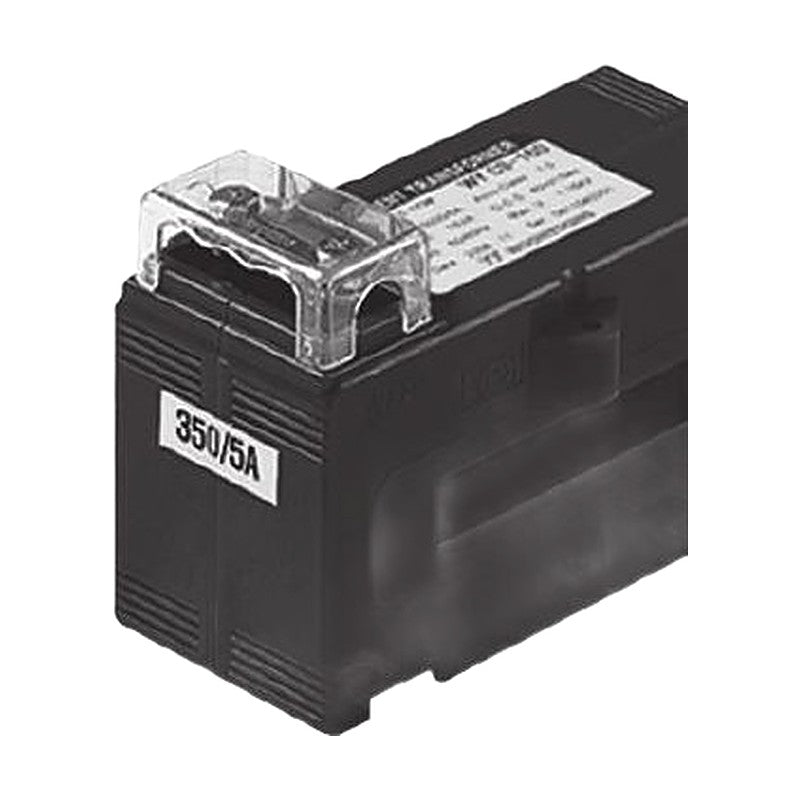

Woonyoung WYCS Series Metering-Type Busbar Current Transformer, 100-5000 A

Woonyoung WYCS Series Metering-Type Busbar Current Transformer, 100-5000 A

Square busbar-through metering current transformer, class 1.0, for primaries from 100 A to 5000 A.

Key features

  • Square CT for busbar installation
  • Standard CS 'A' type; CS 'B' type and mounting options available
  • Polycarbonate case with protective cover; M5 secondary terminals
  • Easy panel mounting kit
  • KC (KS) and CE marked

Specifications

Standards KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Maximum voltage 0.72-1.2 kV
Short-time overcurrent 40 In / 1 s
Frequency 50 or 60 Hz
Installation Indoor
Operating temperature -10 to 55 C
Humidity 80% RH
Color Black
Type Square, busbar-through, metering
Secondary 5 A or 1 A
Class 1.0
WYCS-32 Primary: 100-300 A | Secondary: 5 or 1 A | Burden: 5 VA (100-300 A), 15 VA (200-300 A) | Class: 1.0 | Weight: approx. 0.5 kg | Window H1 x W1: 7 x 32 mm | Outline H x W: 77 x 67 mm | E: 11 mm | Case type: A
WYCS-42 Primary: 200-400 A | Secondary: 5 or 1 A | Burden: 5 VA (200-400 A), 15 VA (400 A) | Class: 1.0 | Weight: approx. 0.5 kg | Window H1 x W1: 7 x 42 mm | Outline H x W: 77 x 67 mm | E: 11 mm | Case type: A
WYCS-45 Primary: 200-750 A | Secondary: 5 or 1 A | Burden: 5 VA (200-750 A), 15 VA (400-750 A) | Class: 1.0 | Weight: approx. 0.5 kg | Window H1 x W1: 10 x 45 mm | Outline H x W: 77 x 67 mm | E: 11 mm | Case type: A
WYCS-44 Primary: 100-300 A | Secondary: 5 or 1 A | Burden: 5 VA (100-300 A), 15 VA (200-300 A) | Class: 1.0 | Weight: approx. 0.9 kg | Window H1 x W1: 11 x 44 mm | Outline H x W: 60 x 97 mm | E: 18 mm | Case type: B
WYCS-65 Primary: 250-600 A | Secondary: 5 or 1 A | Burden: 5 VA (250-600 A), 15 VA (400-600 A), 40 VA (500-600 A) | Class: 1.0 | Weight: approx. 0.7 kg | Window H1 x W1: 11 x 65 mm | Outline H x W: 65 x 124 mm | E: 18 mm | Case type: B
WYCS-64 Primary: 100-600 A | Secondary: 5 or 1 A | Burden: 5 VA (100-600 A), 15 VA (150-600 A), 40 VA (200-600 A) | Class: 1.0 | Weight: approx. 2.2 kg | Window H1 x W1: 12 x 64 mm | Outline H x W: 91 x 140 mm | E: 21 mm | Case type: B
WYCS-85 Primary: 500-1200 A | Secondary: 5 or 1 A | Burden: 15 VA (500-1200 A), 40 VA (600-1200 A) | Class: 1.0 | Weight: approx. 0.8 kg | Window H1 x W1: 13 x 85 mm | Outline H x W: 65 x 124 mm | E: 18 mm | Case type: B
WYCS-104 Primary: 800-2500 A | Secondary: 5 or 1 A | Burden: 15 or 40 VA | Class: 1.0 | Weight: approx. 1.8 kg | Window H1 x W1: 30 x 104 mm | Outline H x W: 102 x 170 mm | E: 21 mm | Case type: B
WYCS-130 Primary: 1200-3000 A | Secondary: 5 or 1 A | Burden: 15 or 40 VA | Class: 1.0 | Weight: approx. 2.0 kg | Window H1 x W1: 40 x 130 mm | Outline H x W: 112 x 208 mm | E: 21 mm | Case type: B
WYCS-160 Primary: 1200-5000 A | Secondary: 5 or 1 A | Burden: 15 or 40 VA | Class: 1.0 | Weight: approx. 3.6 kg | Window H1 x W1: 65 x 160 mm | Outline H x W: 153 x 246 mm | E: 21 mm | Case type: B
Current TransformersWoonyoung
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYCS Series Metering-Type Busbar Current Transformer, 100-5000 A

Brand Woonyoung·Current Transformers

Available part numbers (10)

WYCS-32, WYCS-42, WYCS-45, WYCS-44, WYCS-65, WYCS-64, WYCS-85, WYCS-104, WYCS-130, WYCS-160

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYCS-32Primary: 100-300 A | Secondary: 5 or 1 A | Burden: 5 VA (100-300 A), 15 VA (200-300 A) | Class: 1.0 | Weight: approx. 0.5 kg | Window H1 x W1: 7 x 32 mm | Outline H x W: 77 x 67 mm | E: 11 mm | Case type: A
WYCS-42Primary: 200-400 A | Secondary: 5 or 1 A | Burden: 5 VA (200-400 A), 15 VA (400 A) | Class: 1.0 | Weight: approx. 0.5 kg | Window H1 x W1: 7 x 42 mm | Outline H x W: 77 x 67 mm | E: 11 mm | Case type: A
WYCS-45Primary: 200-750 A | Secondary: 5 or 1 A | Burden: 5 VA (200-750 A), 15 VA (400-750 A) | Class: 1.0 | Weight: approx. 0.5 kg | Window H1 x W1: 10 x 45 mm | Outline H x W: 77 x 67 mm | E: 11 mm | Case type: A
WYCS-44Primary: 100-300 A | Secondary: 5 or 1 A | Burden: 5 VA (100-300 A), 15 VA (200-300 A) | Class: 1.0 | Weight: approx. 0.9 kg | Window H1 x W1: 11 x 44 mm | Outline H x W: 60 x 97 mm | E: 18 mm | Case type: B
WYCS-65Primary: 250-600 A | Secondary: 5 or 1 A | Burden: 5 VA (250-600 A), 15 VA (400-600 A), 40 VA (500-600 A) | Class: 1.0 | Weight: approx. 0.7 kg | Window H1 x W1: 11 x 65 mm | Outline H x W: 65 x 124 mm | E: 18 mm | Case type: B
WYCS-64Primary: 100-600 A | Secondary: 5 or 1 A | Burden: 5 VA (100-600 A), 15 VA (150-600 A), 40 VA (200-600 A) | Class: 1.0 | Weight: approx. 2.2 kg | Window H1 x W1: 12 x 64 mm | Outline H x W: 91 x 140 mm | E: 21 mm | Case type: B
WYCS-85Primary: 500-1200 A | Secondary: 5 or 1 A | Burden: 15 VA (500-1200 A), 40 VA (600-1200 A) | Class: 1.0 | Weight: approx. 0.8 kg | Window H1 x W1: 13 x 85 mm | Outline H x W: 65 x 124 mm | E: 18 mm | Case type: B
WYCS-104Primary: 800-2500 A | Secondary: 5 or 1 A | Burden: 15 or 40 VA | Class: 1.0 | Weight: approx. 1.8 kg | Window H1 x W1: 30 x 104 mm | Outline H x W: 102 x 170 mm | E: 21 mm | Case type: B
WYCS-130Primary: 1200-3000 A | Secondary: 5 or 1 A | Burden: 15 or 40 VA | Class: 1.0 | Weight: approx. 2.0 kg | Window H1 x W1: 40 x 130 mm | Outline H x W: 112 x 208 mm | E: 21 mm | Case type: B
WYCS-160Primary: 1200-5000 A | Secondary: 5 or 1 A | Burden: 15 or 40 VA | Class: 1.0 | Weight: approx. 3.6 kg | Window H1 x W1: 65 x 160 mm | Outline H x W: 153 x 246 mm | E: 21 mm | Case type: B
