Woonyoung WYCS-WV/WH Series 2-Core Busbar Current Transformer, 150-6000 A

Woonyoung WYCS-WV/WH Series 2-Core Busbar Current Transformer, 150-6000 A

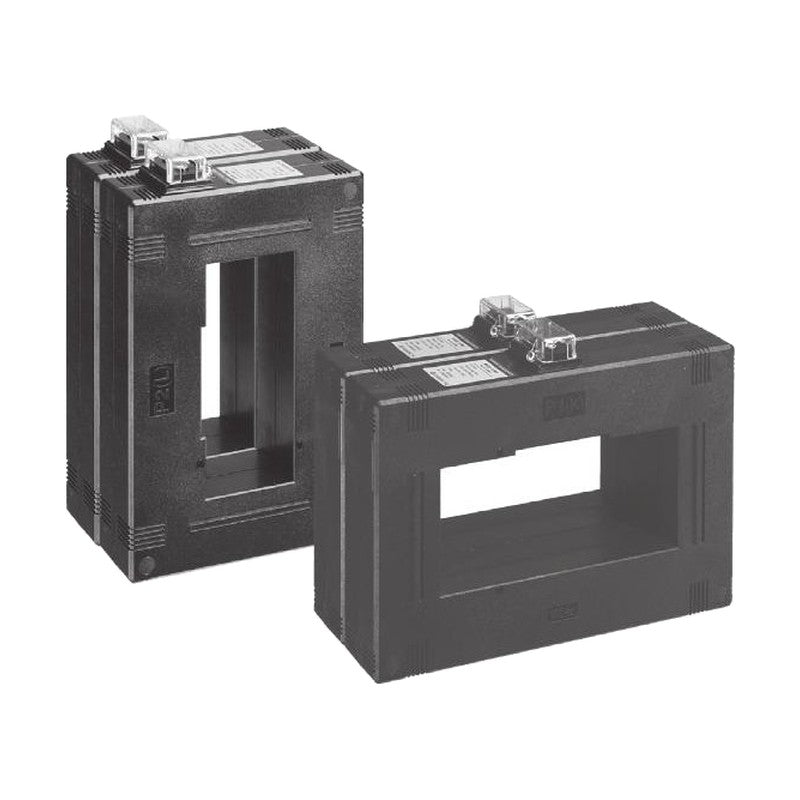

2-core single-ratio busbar-through CT combining a class 1.0 metering core and a 5P protection core, in vertical (WV) and horizontal (WH) versions.

Key features

  • Vertical (V) and horizontal (H) terminal orientations
  • Square busbar-through CT for 150-7000 A
  • Polycarbonate case with protective cover; 4-M5 mounting
  • 60 Hz standard (50 Hz option)
  • KC (KS) and CE marked

Specifications

Standards KS C 1706, IEC 61869-2, JEC 1201, IEEE C57.13
Maximum voltage 0.72-1.2 kV
Short-time overcurrent 40 In / 1 s
Frequency 60 Hz (50 Hz option)
Installation Indoor
Operating temperature -10 to 55 C
Humidity 80% RH
Color Black
Type Square, busbar-through, 2-core (metering + protection)
Secondary 5 A or 1 A
Class 1.0 / 5P10 or 1.0 / 5P20
WYCS-066WV Orientation: Vertical | Primary: 150-630 A | Burden: 5/5 VA or 15/15 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 10 kg | Dimensions: W 117, H 179.5, D 145 mm (W-1 15, H-1 156, H-2 61, D-1 122, L 20, L-1 45)
WYCS-066WH Orientation: Horizontal | Primary: 150-630 A | Burden: 5/5 VA or 15/15 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 10 kg | Dimensions: W 156, H 140.5, D 145 mm (W-1 61, H-1 117, H-2 15, D-1 122, L 20, L-1 45)
WYCS-105WV Orientation: Vertical | Primary: 200-2000 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 10 kg | Dimensions: W 148, H 227.3, D 133 mm (W-1 34.7, H-1 204, H-2 101.7, D-1 110, L 50, L-1 70)
WYCS-105WH Orientation: Horizontal | Primary: 200-2000 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 10 kg | Dimensions: W 204, H 171.3, D 133 mm (W-1 101.7, H-1 148, H-2 34.7, D-1 110, L 50, L-1 70)
WYCS-107WV Orientation: Vertical | Primary: 150-1200 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 14 kg | Dimensions: W 148, H 227.5, D 171 mm (W-1 35, H-1 204, H-2 102, D-1 148, L 50, L-1 70)
WYCS-107WH Orientation: Horizontal | Primary: 150-1200 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 14 kg | Dimensions: W 204, H 171.5, D 171 mm (W-1 102, H-1 148, H-2 35, D-1 148, L 50, L-1 70)
WYCS-116WV Orientation: Vertical | Primary: 200-3000 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 14 kg | Dimensions: W 153, H 235.5, D 145 mm (W-1 40, H-1 212, H-2 110, D-1 122, L 50, L-1 70)
WYCS-116WH Orientation: Horizontal | Primary: 200-3000 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 14 kg | Dimensions: W 212, H 176.5, D 145 mm (W-1 110, H-1 153, H-2 40, D-1 122, L 50, L-1 70)
WYCS-166WV Orientation: Vertical | Primary: 3000-5000 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 16 kg | Dimensions: W 176, H 283.5, D 145 mm (W-1 65, H-1 260, H-2 160, D-1 122, L 50, L-1 70)
WYCS-166WH Orientation: Horizontal | Primary: 3000-5000 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 16 kg | Dimensions: W 260, H 199.5, D 145 mm (W-1 160, H-1 176, H-2 65, D-1 122, L 50, L-1 70)
WYCS-196WV Orientation: Vertical | Primary: 4000-6000 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 18 kg | Dimensions: W 199, H 311.5, D 145 mm (W-1 90, H-1 288, H-2 190, D-1 122, L 50, L-1 70)
WYCS-196WH Orientation: Horizontal | Primary: 4000-6000 A | Burden: 5/5 VA, 15/15 VA or 40/40 VA depending on ratio | Class: 1.0/5P10 or 1.0/5P20 | Weight: 18 kg | Dimensions: W 288, H 222.5, D 145 mm (W-1 190, H-1 199, H-2 90, D-1 122, L 50, L-1 70)
