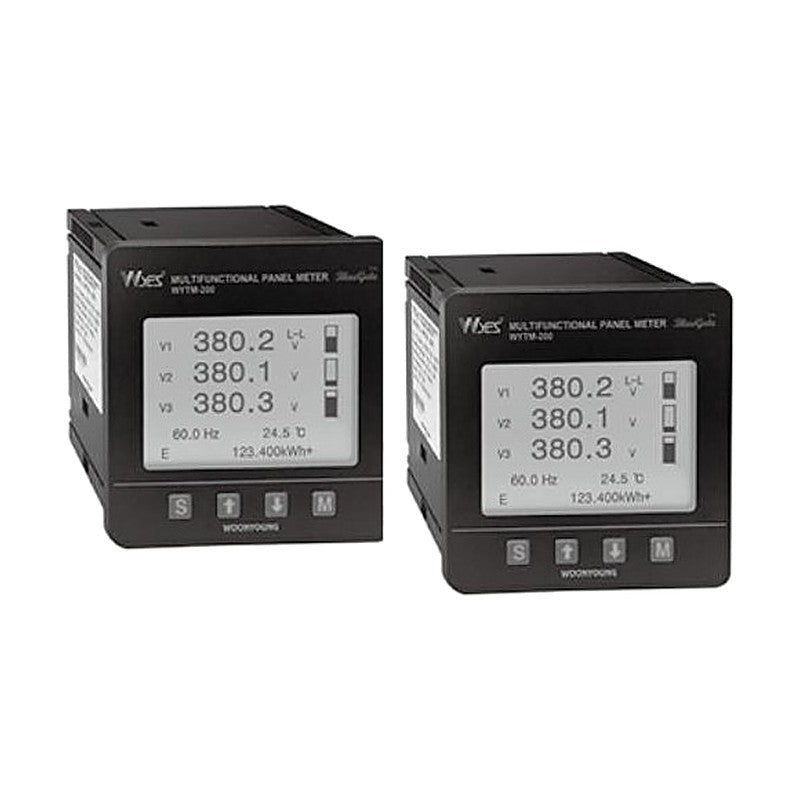

Woonyoung WYTM-200/210 Series Multifunction Power Meter, 96 x 96 mm

Woonyoung WYTM-200/210 Series Multifunction Power Meter, 96 x 96 mm

Multifunction power meter in a 96 x 96 mm case measuring V, A, PF, Hz, THD, W, var, VA and energy, with optional RS-485 or Ethernet and alarm relays.

Key features

  • Measures V, A, W, var, VA, Wh, varh, VAh, PF, Hz and THD
  • RS-485, Ethernet or no-communication versions
  • Two alarm relays (5 A 250 VAC) on 200C/200CP/200E
  • 1P2W, 3P3W and 3P4W wiring
  • IP41 front (IP54 with cover film)

Specifications

Aux. power AC/DC 100-240 V, 3 VA
Wiring 1P2W, 3P3W, 3P4W
Voltage input Direct phase-phase 34-520 VAC; phase-N 20-300 VAC
Current input 0.02-6 A (In = 5 A)
Frequency 45-65 Hz
Operating temperature -10 to +50 C
Storage temperature -20 to +80 C
Protection IP41 (IP54 with cover film), rear IP20
Dimensions 96 x 96 mm
Weight 0.3 kg
Certifications CE
WYTM-200 Communication: None | Alarm relays: None
WYTM-210 Communication: None | Alarm relays: None
WYTM-200C Communication: RS-485 | Alarm relays: AL1/AL2, 5 A 250 VAC
WYTM-210C Communication: RS-485 | Alarm relays: None
WYTM-200CP Communication: RS-485 | Alarm relays: AL1/AL2, 5 A 250 VAC (incl. over-temperature)
WYTM-200E Communication: Ethernet | Alarm relays: AL1/AL2, 5 A 250 VAC
WYTM-210E Communication: Ethernet | Alarm relays: None
Digital Panel MetersWoonyoung
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYTM-200/210 Series Multifunction Power Meter, 96 x 96 mm

Brand Woonyoung·Digital Panel Meters

Available part numbers (7)

WYTM-200, WYTM-210, WYTM-200C, WYTM-210C, WYTM-200CP, WYTM-200E, WYTM-210E
