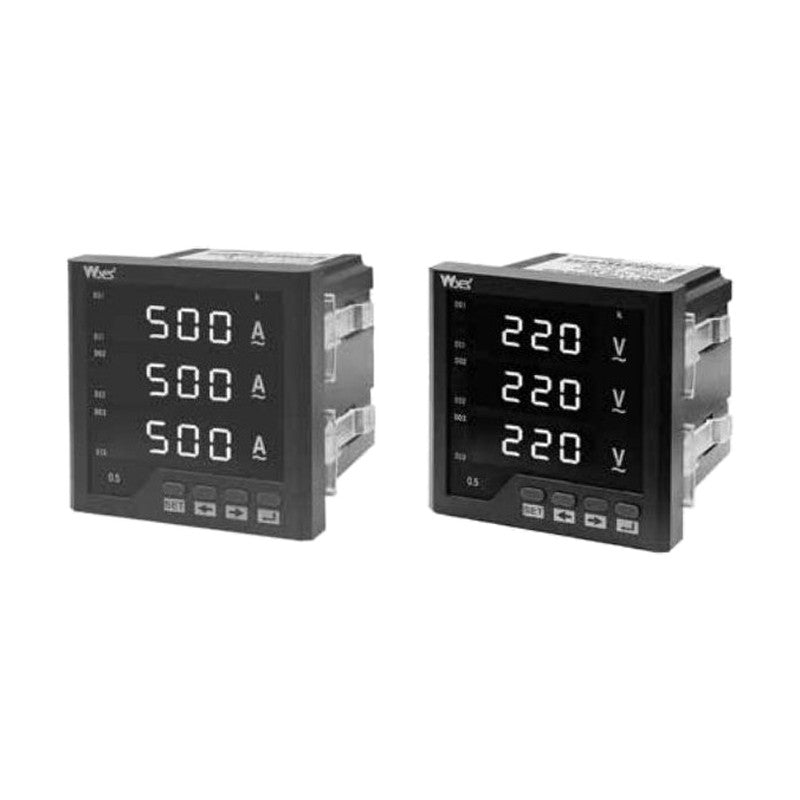

Woonyoung WYTM-3AA/3AV Three-Phase Digital Ammeter and Voltmeter, 96 x 96 mm

Three-line digital ammeter and voltmeter in a 96 x 96 mm case showing all three phases at once, with programmable CT/VT ratios.

Key features

Displays all three phases on one unit
Programmable CT and VT ratios
Direct connection up to 600 V without PT
Class 0.5 accuracy; 4-digit red LED
3-phase 3-wire and 3-phase 4-wire wiring

Specifications

Accuracy	Class 0.5
Wiring	3-phase 3-wire, 3-phase 4-wire
Rated input	Current 1 A or 5 A; voltage AC 57.7, 100, 110, 220, 380 V
Overload	Current 1.2x continuous, 10x for 1 s; voltage 1.2x continuous, 2x for 1 s
Power consumption	< 1 VA per phase; < 4 VA aux.
Frequency	45-65 Hz
Aux. power	AC/DC 80-270 V
Operating temperature	-10 to +55 C
Storage temperature	-25 to +70 C
Humidity	< 93% (non-corrosive)
Insulation resistance	> 100 MOhm
AC withstand	AC 2 kV

WYTM-3AA		Function: 3-phase ammeter
WYTM-3AV		Function: 3-phase voltmeter
