• Worldweld Digital Multi-Process Welder (TIG/CO2/Stick)
1 1

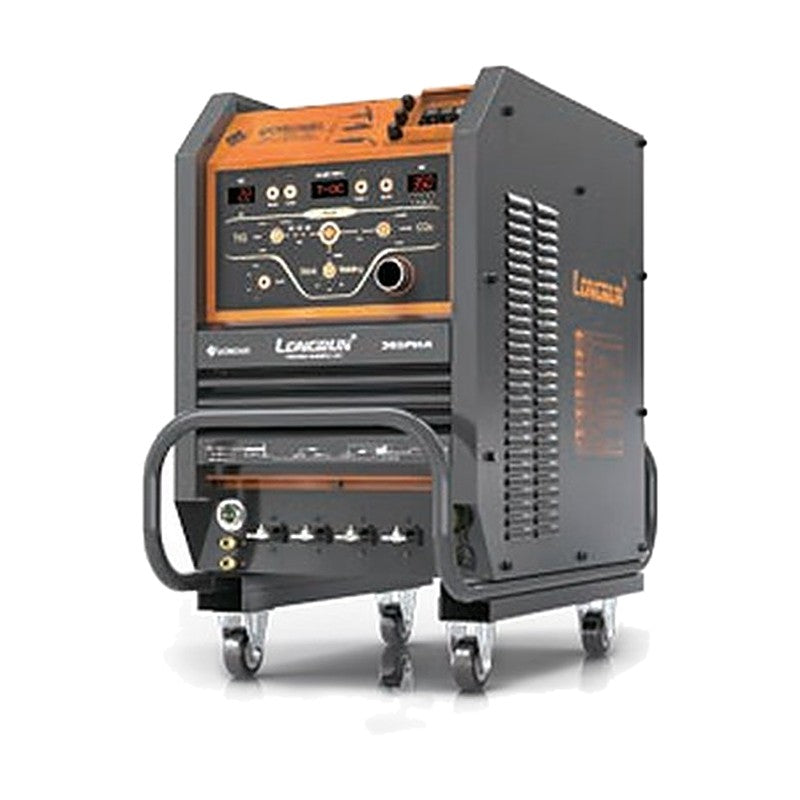

Worldweld Digital Multi-Process Welder (TIG/CO2/Stick)

Worldweld Digital Multi-Process Welder (TIG/CO2/Stick)

These Longrun digital multi-process welders combine TIG, CO2/MAG and stick welding in a single power source.

Key features

  • The 350PMA offers AC/DC TIG up to 350 A, and the 500LCT offers DC TIG and CO2/MAG up to 500 A
  • Both accept 220V or 380V single-phase/three-phase input with a 60% rated duty cycle

Specifications

Input voltage 220V / 380V 1-phase/3-phase
No-load voltage (220V) TIG 72V / CO2 70V / Stick 81V
Rated duty cycle 60%
Worldweld Digital Multi-Process Welder (TIG/CO2/Stick) reference 2
350PMA Input voltage: 220V / 380V 1-phase/3-phase | Processes: AC/DC TIG, CO2, Stick | Input capacity (220V): TIG 10.7kW / CO2 14.5kW / Stick 14kW | Input capacity (380V): TIG 10.5kW / CO2 14.4kW / Stick 13.8kW | No-load voltage (220V): TIG 72V / CO2 70V / Stick 81V | No-load voltage (380V): TIG 68V / CO2 67V / Stick 71V | Output current: TIG 10~350A / CO2 50~350A / Stick 10~350A | Rated duty cycle: 60% | Dimensions (WxDxH): 410 x 790 x 750mm | Weight: 85kg
500LCT Input voltage: 220V / 380V 1-phase/3-phase | Processes: DC TIG, CO2/MAG, Stick | Input capacity (220V): TIG 19kW / CO2 25.9kW / Stick 13.9kW | Input capacity (380V): TIG 18.9kW / CO2 25.7kW / Stick 13.6kW | No-load voltage (220V): TIG 72V / CO2 70V / Stick 81V | No-load voltage (380V): TIG 70V / CO2 68V / Stick 78V | Output current: TIG 10~500A / CO2 50~500A / Stick 10~350A | Rated duty cycle: 60% | Dimensions (WxDxH): 416 x 788 x 694mm | Weight: 84kg
Multi-Process WeldersWorldweld
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Worldweld Digital Multi-Process Welder (TIG/CO2/Stick)

Brand Worldweld·Multi-Process Welders

Available part numbers (2)

350PMA, 500LCT

How to order

Send the Worldweld part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Worldweld Digital Multi-Process Welder (TIG/CO2/Stick) reference 2
0 selected
RFQ List (0)
Product codeSpec
350PMAInput voltage: 220V / 380V 1-phase/3-phase | Processes: AC/DC TIG, CO2, Stick | Input capacity (220V): TIG 10.7kW / CO2 14.5kW / Stick 14kW | Input capacity (380V): TIG 10.5kW / CO2 14.4kW / Stick 13.8kW | No-load voltage (220V): TIG 72V / CO2 70V / Stick 81V | No-load voltage (380V): TIG 68V / CO2 67V / Stick 71V | Output current: TIG 10~350A / CO2 50~350A / Stick 10~350A | Rated duty cycle: 60% | Dimensions (WxDxH): 410 x 790 x 750mm | Weight: 85kg
500LCTInput voltage: 220V / 380V 1-phase/3-phase | Processes: DC TIG, CO2/MAG, Stick | Input capacity (220V): TIG 19kW / CO2 25.9kW / Stick 13.9kW | Input capacity (380V): TIG 18.9kW / CO2 25.7kW / Stick 13.6kW | No-load voltage (220V): TIG 72V / CO2 70V / Stick 81V | No-load voltage (380V): TIG 70V / CO2 68V / Stick 78V | Output current: TIG 10~500A / CO2 50~500A / Stick 10~350A | Rated duty cycle: 60% | Dimensions (WxDxH): 416 x 788 x 694mm | Weight: 84kg
