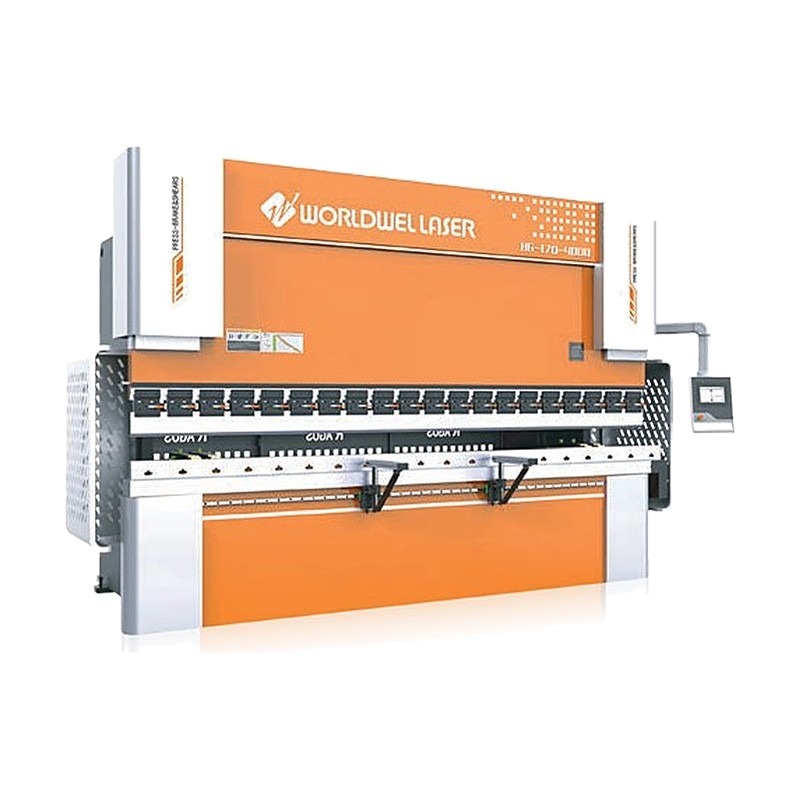

Worldweld HG Series CNC Press Brake (50-400 ton)

The HG series are CNC press brakes for sheet metal bending.

Key features

Models range from 50 ton with 1500 mm bending length to 400 ton with 3200 mm bending length
Throat depth is 400 mm on most models

HG-50-1500		Capacity: 50ton \| Bending length: 1500mm \| Throat depth: 300mm \| Power consumption: 5.5kW \| Height lowered: 2100mm \| Bending dimension: 1355mm \| Height raised: 2600mm \| Weight: 4000kg
HG-110-2500		Capacity: 110ton \| Bending length: 2500mm \| Throat depth: 400mm \| Power consumption: 8.7kW \| Height lowered: 3060mm \| Bending dimension: 2050mm \| Height raised: 2540/2620mm \| Weight: 7200kg
HG-130-2500		Capacity: 130ton \| Bending length: 2500mm \| Throat depth: 400mm \| Power consumption: 10.8kW \| Height lowered: 3860mm \| Bending dimension: 2050mm \| Height raised: 2750/2830mm \| Weight: 8000kg
HG-170-3200		Capacity: 170ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 13.2kW \| Height lowered: 3860mm \| Bending dimension: 2050mm \| Height raised: 2750/2830mm \| Weight: 9800kg
HG-220-3200		Capacity: 220ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 16.7kW \| Height lowered: 3860mm \| Bending dimension: 2120mm \| Height raised: 2800/2880mm \| Weight: 12000kg
HG-250-3200		Capacity: 250ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 21.4kW \| Height lowered: 3860mm \| Bending dimension: 2100mm \| Height raised: 3150mm \| Weight: 15000kg
HG-320-3200		Capacity: 320ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 26.9kW \| Height lowered: 3860mm \| Bending dimension: 2200mm \| Height raised: 3200mm \| Weight: 22500kg
HG-400-3200		Capacity: 400ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 33kW \| Height lowered: 3860mm \| Bending dimension: 2300mm \| Height raised: 3500mm \| Weight: 26500kg

Press BrakesWorldweld

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Worldweld HG Series CNC Press Brake (50-400 ton)

Brand Worldweld·Press Brakes

Available part numbers (8)

HG-50-1500, HG-110-2500, HG-130-2500, HG-170-3200, HG-220-3200, HG-250-3200, HG-320-3200, HG-400-3200

How to order

Send the Worldweld part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	HG-50-1500	Capacity: 50ton \| Bending length: 1500mm \| Throat depth: 300mm \| Power consumption: 5.5kW \| Height lowered: 2100mm \| Bending dimension: 1355mm \| Height raised: 2600mm \| Weight: 4000kg
	HG-110-2500	Capacity: 110ton \| Bending length: 2500mm \| Throat depth: 400mm \| Power consumption: 8.7kW \| Height lowered: 3060mm \| Bending dimension: 2050mm \| Height raised: 2540/2620mm \| Weight: 7200kg
	HG-130-2500	Capacity: 130ton \| Bending length: 2500mm \| Throat depth: 400mm \| Power consumption: 10.8kW \| Height lowered: 3860mm \| Bending dimension: 2050mm \| Height raised: 2750/2830mm \| Weight: 8000kg
	HG-170-3200	Capacity: 170ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 13.2kW \| Height lowered: 3860mm \| Bending dimension: 2050mm \| Height raised: 2750/2830mm \| Weight: 9800kg
	HG-220-3200	Capacity: 220ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 16.7kW \| Height lowered: 3860mm \| Bending dimension: 2120mm \| Height raised: 2800/2880mm \| Weight: 12000kg
	HG-250-3200	Capacity: 250ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 21.4kW \| Height lowered: 3860mm \| Bending dimension: 2100mm \| Height raised: 3150mm \| Weight: 15000kg
	HG-320-3200	Capacity: 320ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 26.9kW \| Height lowered: 3860mm \| Bending dimension: 2200mm \| Height raised: 3200mm \| Weight: 22500kg
	HG-400-3200	Capacity: 400ton \| Bending length: 3200mm \| Throat depth: 400mm \| Power consumption: 33kW \| Height lowered: 3860mm \| Bending dimension: 2300mm \| Height raised: 3500mm \| Weight: 26500kg
