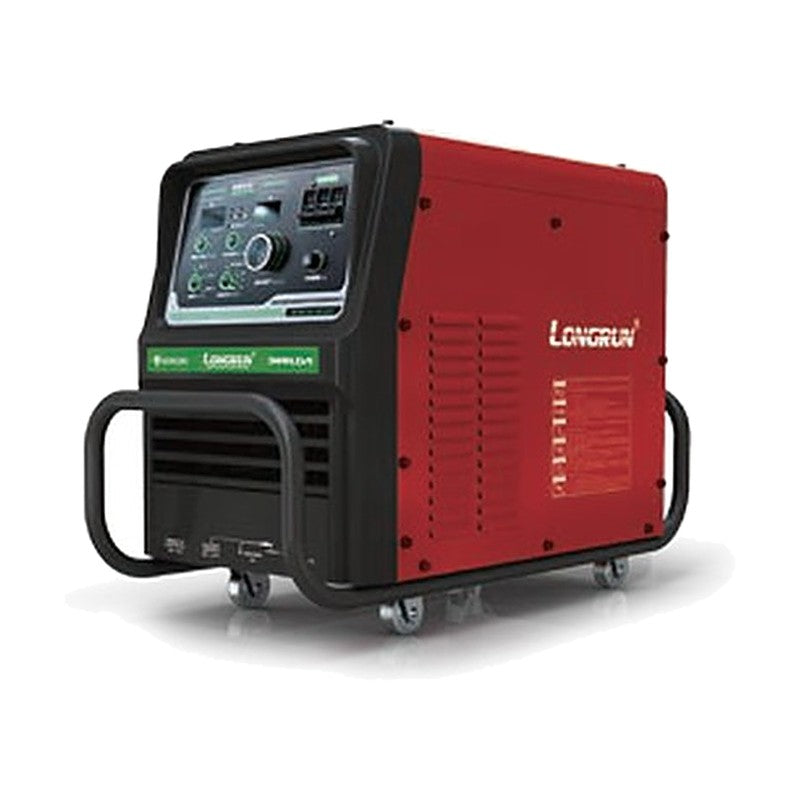

Worldweld LDA Series Inverter AC/DC Stick Welder (300-350A)

Worldweld LDA Series Inverter AC/DC Stick Welder (300-350A)

The LDA series are inverter arc welders that provide both AC and DC stick welding output.

Key features

  • The 300LDA runs on 220V and the 350LDA on 380V single-phase or three-phase power
  • Both are trolley-mounted with a 60% rated duty cycle

Specifications

Rated duty cycle 60%
300LDA Input voltage: 220V 1-phase/3-phase | Input capacity: DC 12kW / AC 12kW | No-load voltage: 69V (220V input) | Output current: DC 10~300A / AC 10~300A | Rated duty cycle: 60% | Dimensions (WxDxH): 350 x 730 x 545mm | Weight: 48kg
350LDA Input voltage: 380V 1-phase/3-phase | Input capacity: DC 14.2kW / AC 14.6kW | No-load voltage: 83V (380V input) | Output current: DC 15~350A / AC 15~350A | Rated duty cycle: 60% | Dimensions (WxDxH): 398 x 770 x 640mm | Weight: 61kg
Stick WeldersWorldweld
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Worldweld LDA Series Inverter AC/DC Stick Welder (300-350A)

Brand Worldweld·Stick Welders

Available part numbers (2)

300LDA, 350LDA

How to order

Send the Worldweld part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
300LDAInput voltage: 220V 1-phase/3-phase | Input capacity: DC 12kW / AC 12kW | No-load voltage: 69V (220V input) | Output current: DC 10~300A / AC 10~300A | Rated duty cycle: 60% | Dimensions (WxDxH): 350 x 730 x 545mm | Weight: 48kg
350LDAInput voltage: 380V 1-phase/3-phase | Input capacity: DC 14.2kW / AC 14.6kW | No-load voltage: 83V (380V input) | Output current: DC 15~350A / AC 15~350A | Rated duty cycle: 60% | Dimensions (WxDxH): 398 x 770 x 640mm | Weight: 61kg
