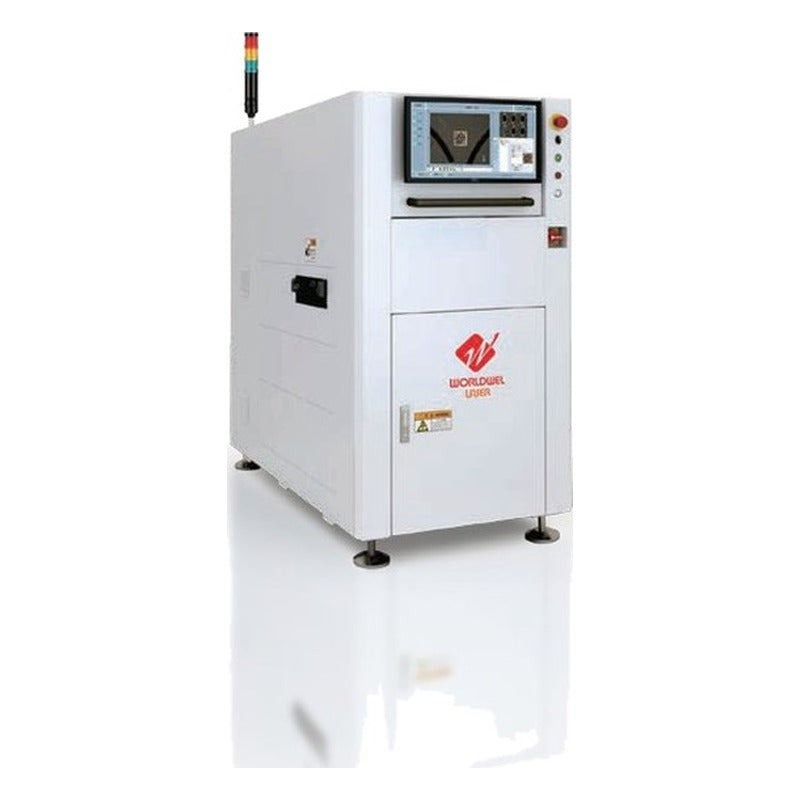

Worldweld WLIM Series Inline PCB Laser Marking Machine

Worldweld WLIM Series Inline PCB Laser Marking Machine

The WLIM series are inline laser marking machines for PCB production lines.

Key features

  • They accept CO2, green, UV or fiber laser sources with a moving laser head
  • Models cover PCB sizes from 300 x 260 mm up to 600 x 550 mm with 1±20 um repeatability

Specifications

Laser source CO2 / Green / UV / Fiber
Repeatability 1±20um
Rail height 900±50um
PCB thickness 0.5~5mm
Processing Moving laser head
Voltage 220V 50/60Hz
WLIM-S300 Laser source: CO2 / Green / UV / Fiber | Repeatability: 1±20um | Rail height: 900±50um | Max. PCB size: 300 x 260mm | PCB thickness: 0.5~5mm | Processing: Moving laser head | Voltage: 220V 50/60Hz | Footprint: 1000 x 1550 x 1600mm | Weight: 850kg
WLIM-S510 Laser source: CO2 / Green / UV / Fiber | Repeatability: 1±20um | Rail height: 900±50um | Max. PCB size: 510 x 460mm | PCB thickness: 0.5~5mm | Processing: Moving laser head | Voltage: 220V 50/60Hz | Footprint: 1060 x 1680 x 1600mm | Weight: 900kg
WLIM-S600 Laser source: CO2 / Green / UV / Fiber | Repeatability: 1±20um | Rail height: 900±50um | Max. PCB size: 600 x 550mm | PCB thickness: 0.5~5mm | Processing: Moving laser head | Voltage: 220V 50/60Hz | Footprint: 1150 x 1680 x 1600mm | Weight: 1100kg
Laser Marking MachinesWorldweld
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Worldweld WLIM Series Inline PCB Laser Marking Machine

Brand Worldweld·Laser Marking Machines

Available part numbers (3)

WLIM-S300, WLIM-S510, WLIM-S600

How to order

Send the Worldweld part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WLIM-S300Laser source: CO2 / Green / UV / Fiber | Repeatability: 1±20um | Rail height: 900±50um | Max. PCB size: 300 x 260mm | PCB thickness: 0.5~5mm | Processing: Moving laser head | Voltage: 220V 50/60Hz | Footprint: 1000 x 1550 x 1600mm | Weight: 850kg
WLIM-S510Laser source: CO2 / Green / UV / Fiber | Repeatability: 1±20um | Rail height: 900±50um | Max. PCB size: 510 x 460mm | PCB thickness: 0.5~5mm | Processing: Moving laser head | Voltage: 220V 50/60Hz | Footprint: 1060 x 1680 x 1600mm | Weight: 900kg
WLIM-S600Laser source: CO2 / Green / UV / Fiber | Repeatability: 1±20um | Rail height: 900±50um | Max. PCB size: 600 x 550mm | PCB thickness: 0.5~5mm | Processing: Moving laser head | Voltage: 220V 50/60Hz | Footprint: 1150 x 1680 x 1600mm | Weight: 1100kg
