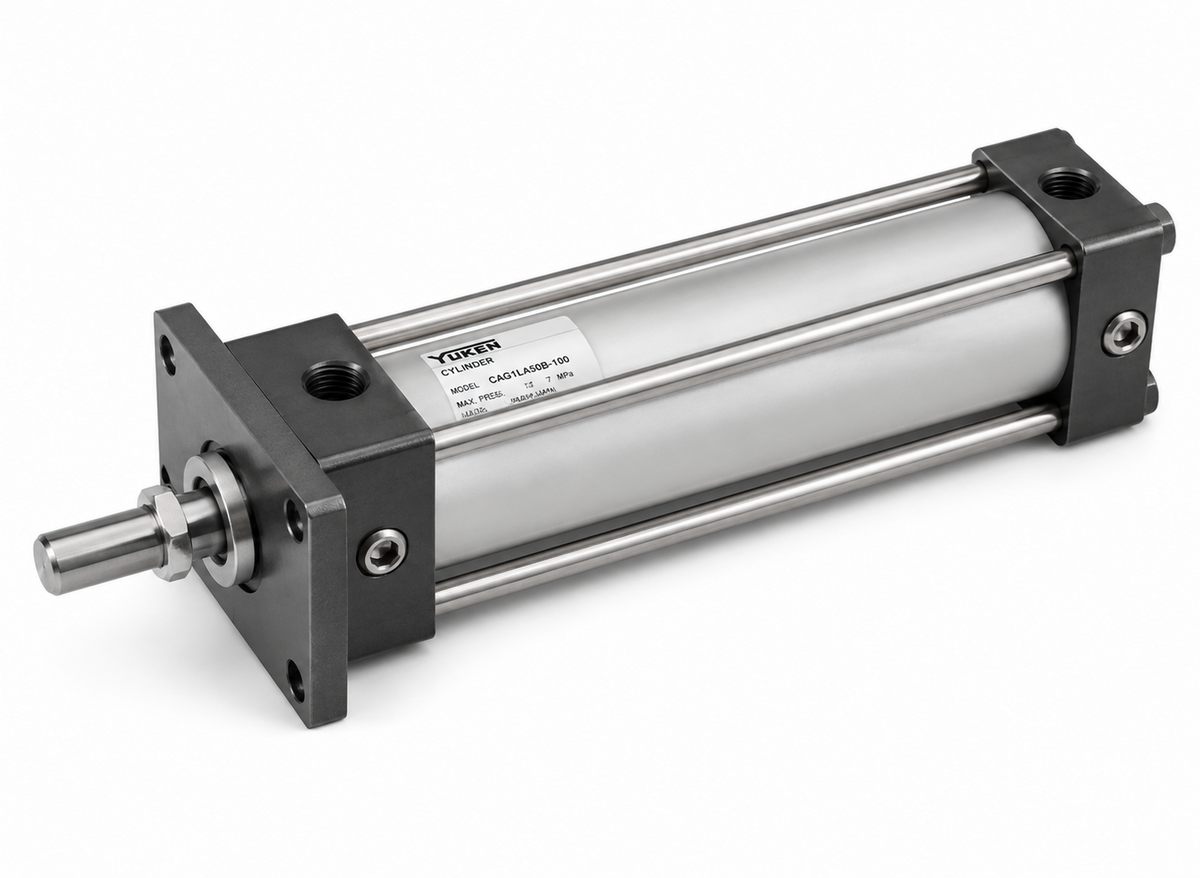

Yuken CJT35 3.5MPa Standard Hydraulic Cylinder (Trunnion Mount TA/TC, Bore 32-160mm)

Yuken CJT35 3.5MPa Standard Hydraulic Cylinder (Trunnion Mount TA/TC, Bore 32-160mm)

YUKEN's CJT 3.5 MPa Series standard hydraulic cylinders are provided with a wide variety of mounting styles so they can be used for a broad range of applications, from machine tools to general industrial machinery.

Key features

  • A proximity-switch-equipped standard hydraulic cylinder, which mounts a slide-type proximity switch on the cylinder body for simple position detection, is also available as a series (see catalog page J-69)
  • Rich variety of mounting styles
  • Good low-speed characteristics, enabling high-precision operation
  • Nominal pressure 3.5 MPa; bore 32-160 mm; mounting styles SD/LA/LB/FA/FB/CA/CB/TA/TC
  • This listing covers the Trunnion Mount TA/TC types: TA (Rod-cover-integrated trunnion), TC (Intermediate fixed trunnion)

Specifications

Series CJT35 (3.5MPa Standard Hydraulic Cylinder)
Rod S (special type)
Nominal Pressure 3.5 MPa
Max Allowable Pressure 4.5 MPa
Proof Pressure 5.0 MPa
Min Operating Pressure 0.2 MPa
Operating Speed 8-300 mm/s
Stroke specify at order (made-to-order, within max)
Cushion B both ends / R rod side / H cap side / N none (specify)
Port direction A up(std) / B right / C down / D left
Cushion-valve direction B right(std) / A up / C down / D left
Air-bleed direction D left(std) / A up / B right / C down / N none
CJT35-TA-32S CJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 32mm, rod S, max stroke 1000mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 32 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-40S CJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 40mm, rod S, max stroke 1000mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 40 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-50S CJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 50mm, rod S, max stroke 1200mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 50 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-63S CJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 63mm, rod S, max stroke 1200mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 63 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-80S CJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 80mm, rod S, max stroke 1600mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 80 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-100S CJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 100mm, rod S, max stroke 1600mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 100 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-125S CJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 125mm, rod S, max stroke 1800mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 125 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-160S CJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 160mm, rod S, max stroke 1800mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 160 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-32S CJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 32mm, rod S, max stroke 1000mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 32 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-40S CJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 40mm, rod S, max stroke 1000mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 40 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-50S CJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 50mm, rod S, max stroke 1200mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 50 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-63S CJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 63mm, rod S, max stroke 1200mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 63 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-80S CJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 80mm, rod S, max stroke 1600mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 80 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-100S CJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 100mm, rod S, max stroke 1600mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 100 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-125S CJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 125mm, rod S, max stroke 1800mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 125 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-160S CJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 160mm, rod S, max stroke 1800mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 160 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CylindersYuken
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken CJT35 3.5MPa Standard Hydraulic Cylinder (Trunnion Mount TA/TC, Bore 32-160mm)

Brand Yuken·Cylinders

Available part numbers (16)

CJT35-TA-32S, CJT35-TA-40S, CJT35-TA-50S, CJT35-TA-63S, CJT35-TA-80S, CJT35-TA-100S, CJT35-TA-125S, CJT35-TA-160S, CJT35-TC-32S, CJT35-TC-40S + 6 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CJT35-TA-32SCJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 32mm, rod S, max stroke 1000mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 32 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-40SCJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 40mm, rod S, max stroke 1000mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 40 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-50SCJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 50mm, rod S, max stroke 1200mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 50 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-63SCJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 63mm, rod S, max stroke 1200mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 63 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-80SCJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 80mm, rod S, max stroke 1600mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 80 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-100SCJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 100mm, rod S, max stroke 1600mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 100 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-125SCJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 125mm, rod S, max stroke 1800mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 125 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TA-160SCJT35 3.5MPa standard hydraulic cylinder, Rod-cover-integrated trunnion (TA), bore 160mm, rod S, max stroke 1800mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TA — Rod-cover-integrated trunnion / Rod-cover integral trunnion | Bore: 160 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-32SCJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 32mm, rod S, max stroke 1000mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 32 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-40SCJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 40mm, rod S, max stroke 1000mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 40 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1000 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-50SCJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 50mm, rod S, max stroke 1200mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 50 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-63SCJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 63mm, rod S, max stroke 1200mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 63 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1200 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-80SCJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 80mm, rod S, max stroke 1600mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 80 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-100SCJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 100mm, rod S, max stroke 1600mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 100 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1600 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-125SCJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 125mm, rod S, max stroke 1800mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 125 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
CJT35-TC-160SCJT35 3.5MPa standard hydraulic cylinder, Intermediate fixed trunnion (TC), bore 160mm, rod S, max stroke 1800mm | Series: CJT35 (3.5MPa Standard Hydraulic Cylinder) | Mounting: TC — Intermediate fixed trunnion / Intermediate trunnion | Bore: 160 mm | Rod: S (special type) | Nominal Pressure: 3.5 MPa | Max Allowable Pressure: 4.5 MPa | Proof Pressure: 5.0 MPa | Min Operating Pressure: 0.2 MPa | Operating Speed: 8-300 mm/s | Max Stroke: 1800 mm | Stroke: specify at order (made-to-order, within max) | Cushion: B both ends / R rod side / H cap side / N none (specify) | Port direction: A up(std) / B right / C down / D left | Cushion-valve direction: B right(std) / A up / C down / D left | Air-bleed direction: D left(std) / A up / B right / C down / N none | Options: F/G/H dust cover, K fixing nut, L/M rod-end fitting (alpha order) | Packing: Nitrile(std) / F fluoro / 6 H-NBR | Rod Thread: JIS B0211-6g (class 2) | Ambient Temp: -10 to +80 C | Standard: former JIS B8354 | Design No.: 30 | Full Code: F-CJT35-[mount]-[bore]-S-[stroke]-[cushion]-[dir3]-[option]-30
