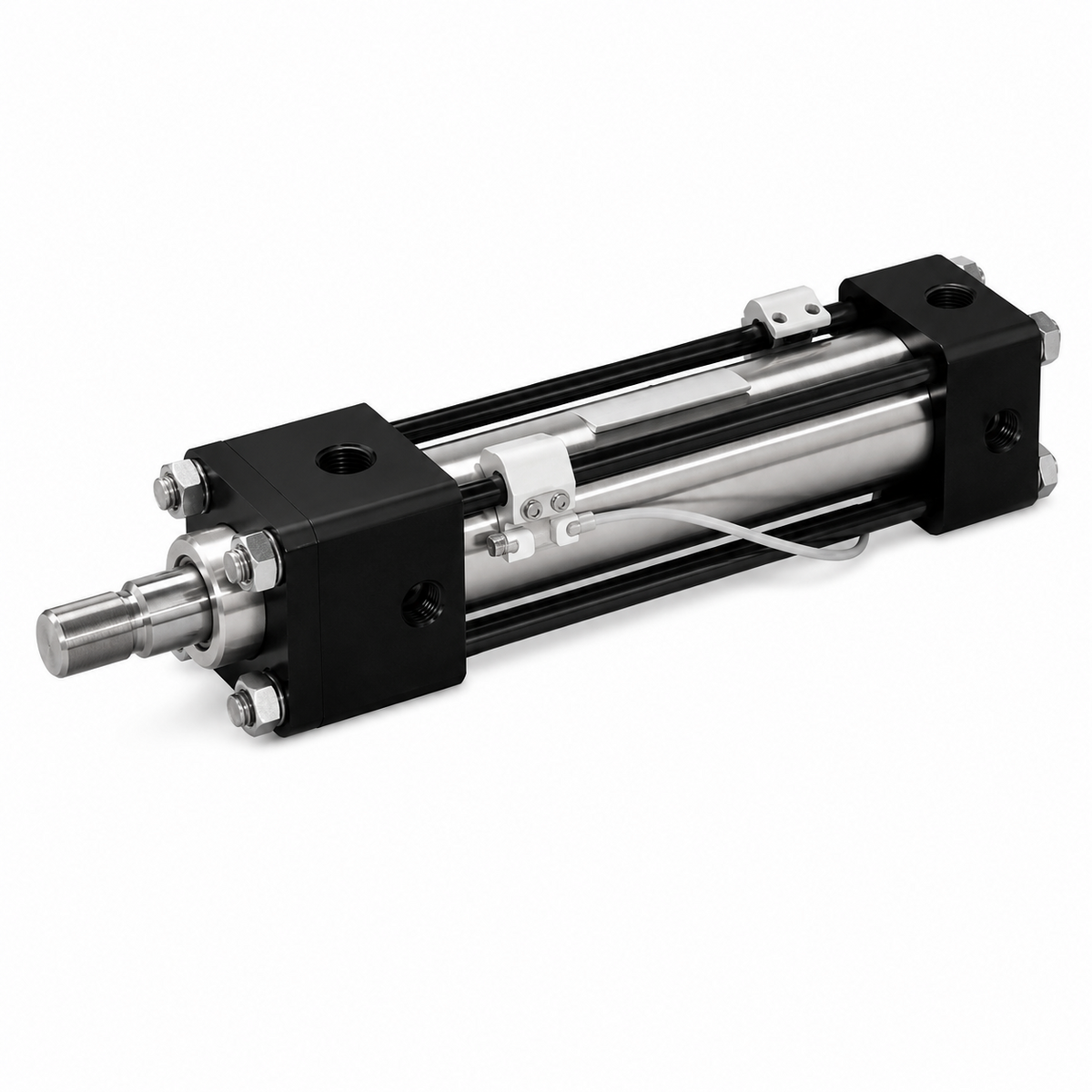

Yuken - CJT70L 7MPa Hydraulic Cylinder with Proximity Switch

Yuken - CJT70L 7MPa Hydraulic Cylinder with Proximity Switch

YUKEN CJT-series hydraulic cylinder with CE-compliant slide-type proximity switch.

Key features

  • The detection position is set freely and easily by adjusting the position of the slide-type proximity switch mounted on the cylinder body, eliminating the separate position-detection device on the machine and making the unit more compact
  • The proximity switch is available in lead-wire type (1.5 m standard / 5 m) and connector type
  • Basic specifications are the same as the CJT70 (7 MPa standard) hydraulic cylinder
  • Conforms to former JIS B8354
  • Stroke is made-to-order - observe the minimum switch-mounting stroke

Specifications

Series CJT70L (CE-compliant proximity-switch type)
Base Series CJT70 (7 MPa standard)
Nominal Pressure 7 MPa
Design No. 20
Stroke Made-to-order (specify required stroke; min switch-mount stroke applies)
Switch Min Stroke (Non-TC) 1 switch 20 mm / 2 switches 30 mm
Support (selectable) SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC
Cushion B: both ends / R: rod side / H: cap side / N: none
Port Direction A: top (std) / B: right / C: bottom / D: left (viewed from rod side)
Cushion Valve Direction B: right (std) / A: top / C: bottom / D: left / N: none
Air Bleed Direction D: left (std) / A: top / B: right / C: bottom
Option F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end
CJT70L-32-B-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 32mm bore, B-rod d18mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 32 mm | Rod: B-series d18 mm | Design No.: 20 | Max Stroke: 1000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 110 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-32B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-32-C-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 32mm bore, C-rod d14mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 32 mm | Rod: C-series d14 mm | Design No.: 20 | Max Stroke: 1000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 110 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-32C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-40-A-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 40mm bore, A-rod d28mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 40 mm | Rod: A-series d28 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-40A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-40-B-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 40mm bore, B-rod d22mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 40 mm | Rod: B-series d22 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-40B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-40-C-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 40mm bore, C-rod d18mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 40 mm | Rod: C-series d18 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-40C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-50-A-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 50mm bore, A-rod d36mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 50 mm | Rod: A-series d36 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-50A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-50-B-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 50mm bore, B-rod d28mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 50 mm | Rod: B-series d28 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-50B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-50-C-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 50mm bore, C-rod d22mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 50 mm | Rod: C-series d22 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-50C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-63-A-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 63mm bore, A-rod d45mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 63 mm | Rod: A-series d45 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 125 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-63A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-63-B-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 63mm bore, B-rod d36mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 63 mm | Rod: B-series d36 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 125 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-63B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-63-C-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 63mm bore, C-rod d28mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 63 mm | Rod: C-series d28 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 125 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-63C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-80-A-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 80mm bore, A-rod d56mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 80 mm | Rod: A-series d56 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 130 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-80A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-80-B-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 80mm bore, B-rod d45mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 80 mm | Rod: B-series d45 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 130 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-80B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-80-C-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 80mm bore, C-rod d36mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 80 mm | Rod: C-series d36 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 130 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-80C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-100-A-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 100mm bore, A-rod d70mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 100 mm | Rod: A-series d70 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 65 mm / 2 switches 135 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-100A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-100-B-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 100mm bore, B-rod d56mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 100 mm | Rod: B-series d56 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 65 mm / 2 switches 135 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-100B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-100-C-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 100mm bore, C-rod d45mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 100 mm | Rod: C-series d45 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 65 mm / 2 switches 135 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-100C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-125-A-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 125mm bore, A-rod d90mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 125 mm | Rod: A-series d90 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 70 mm / 2 switches 150 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-125A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-125-B-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 125mm bore, B-rod d70mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 125 mm | Rod: B-series d70 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 70 mm / 2 switches 150 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-125B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-125-C-20 CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 125mm bore, C-rod d56mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 125 mm | Rod: C-series d56 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 70 mm / 2 switches 150 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-125C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CylindersYuken
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Yuken - CJT70L 7MPa Hydraulic Cylinder with Proximity Switch

Brand Yuken·Cylinders

Available part numbers (20)

CJT70L-32-B-20, CJT70L-32-C-20, CJT70L-40-A-20, CJT70L-40-B-20, CJT70L-40-C-20, CJT70L-50-A-20, CJT70L-50-B-20, CJT70L-50-C-20, CJT70L-63-A-20, CJT70L-63-B-20 + 10 more — see full table ↓

How to order

Send the Yuken part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CJT70L-32-B-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 32mm bore, B-rod d18mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 32 mm | Rod: B-series d18 mm | Design No.: 20 | Max Stroke: 1000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 110 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-32B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-32-C-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 32mm bore, C-rod d14mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 32 mm | Rod: C-series d14 mm | Design No.: 20 | Max Stroke: 1000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 110 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-32C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-40-A-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 40mm bore, A-rod d28mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 40 mm | Rod: A-series d28 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-40A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-40-B-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 40mm bore, B-rod d22mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 40 mm | Rod: B-series d22 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-40B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-40-C-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 40mm bore, C-rod d18mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 40 mm | Rod: C-series d18 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-40C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-50-A-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 50mm bore, A-rod d36mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 50 mm | Rod: A-series d36 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-50A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-50-B-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 50mm bore, B-rod d28mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 50 mm | Rod: B-series d28 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-50B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-50-C-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 50mm bore, C-rod d22mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 50 mm | Rod: C-series d22 mm | Design No.: 20 | Max Stroke: 1200 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 50 mm / 2 switches 115 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-50C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-63-A-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 63mm bore, A-rod d45mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 63 mm | Rod: A-series d45 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 125 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-63A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-63-B-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 63mm bore, B-rod d36mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 63 mm | Rod: B-series d36 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 125 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-63B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-63-C-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 63mm bore, C-rod d28mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 63 mm | Rod: C-series d28 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 125 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-63C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-80-A-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 80mm bore, A-rod d56mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 80 mm | Rod: A-series d56 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 130 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-80A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-80-B-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 80mm bore, B-rod d45mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 80 mm | Rod: B-series d45 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 130 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-80B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-80-C-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 80mm bore, C-rod d36mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 80 mm | Rod: C-series d36 mm | Design No.: 20 | Max Stroke: 1600 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 60 mm / 2 switches 130 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-80C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-100-A-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 100mm bore, A-rod d70mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 100 mm | Rod: A-series d70 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 65 mm / 2 switches 135 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-100A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-100-B-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 100mm bore, B-rod d56mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 100 mm | Rod: B-series d56 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 65 mm / 2 switches 135 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-100B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-100-C-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 100mm bore, C-rod d45mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 100 mm | Rod: C-series d45 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 65 mm / 2 switches 135 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-100C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-125-A-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 125mm bore, A-rod d90mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (A-rod) 15 MPa | Bore: 125 mm | Rod: A-series d90 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 70 mm / 2 switches 150 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-125A-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-125-B-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 125mm bore, B-rod d70mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (B-rod) 13.5 MPa | Bore: 125 mm | Rod: B-series d70 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 70 mm / 2 switches 150 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-125B-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
CJT70L-125-C-20CJT70L 7MPa Hydraulic Cylinder w/ proximity switch, 125mm bore, C-rod d56mm, design 20 | Series: CJT70L (CE-compliant proximity-switch type) | Base Series: CJT70 (7 MPa standard) | Nominal Pressure: 7 MPa | Max Allowable Pressure: Cap side 9 MPa / Rod side (C-rod) 11 MPa | Bore: 125 mm | Rod: C-series d56 mm | Design No.: 20 | Max Stroke: 2000 mm | Stroke: Made-to-order (specify required stroke; min switch-mount stroke applies) | Switch Min Stroke (Non-TC): 1 switch 20 mm / 2 switches 30 mm | Switch Min Stroke (TC, std trunnion pos): 1 switch 70 mm / 2 switches 150 mm | Proximity Switch: CE-compliant slide-type proximity switch; lead-wire type (1.5 m std / 5 m) or connector type; 1 or 2 switches (2+ switches: consult) | Support (selectable): SD, LA, LB, FA, FB, FC, FD, FE, FF, FY, CA, CB, TA, TC | Cushion: B: both ends / R: rod side / H: cap side / N: none | Port Direction: A: top (std) / B: right / C: bottom / D: left (viewed from rod side) | Cushion Valve Direction: B: right (std) / A: top / C: bottom / D: left / N: none | Air Bleed Direction: D: left (std) / A: top / B: right / C: bottom | Option: F,G,H: dust cover (nylon80/CR130/connex200) / K: lock nut / L: 1-piece rod-end / M: 2-piece rod-end | Packing: no symbol: NBR (std) / F: FKM / 6: HNBR | Max Speed: 300 mm/s | Ambient Temp: -10 to +70 C | Standard: former JIS B8354 | Full Code: [F/6]CJT70L-[support]-125C-[stroke]-[B/R/H/N]-[port][valve][bleed]-[option]-[switch: lead/connector, 1/2pc, 1.5m/5m]-20
