Photoelectric
Autonics

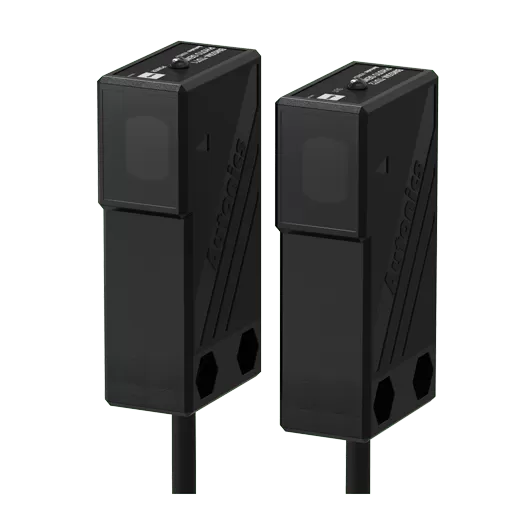

[AUTONICS] BMS Series Side Sensing Photoelectric Sensors
Family ID: AUTONICS-BMS-SERIES
Side-sensing photoelectric sensors with through-beam, retroreflective, and diffuse reflective types. Light/Dark ON selectable by control wire. Sensitivity adjuster. Response time max. 1 ms. Cable type connection.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| AUTONICS-BMS5M-TDT-1 | — | AUTONICS | Photoelectric sensor | BMS Series | Through-beam | 5 m | NPN open collector | 12-24 VDC | Cable type | - | side sensing | ||
| AUTONICS-BMS5M-TDT-2 | — | AUTONICS | Photoelectric sensor | BMS Series | Through-beam | 5 m | PNP open collector | 12-24 VDC | Cable type | - | side sensing | ||
| AUTONICS-BMS2M-MDT-1 | — | AUTONICS | Photoelectric sensor | BMS Series | Retroreflective | 0.1-2 m | NPN open collector | 12-24 VDC | Cable type | - | side sensing | ||
| AUTONICS-BMS2M-MDT-2 | — | AUTONICS | Photoelectric sensor | BMS Series | Retroreflective | 0.1-2 m | PNP open collector | 12-24 VDC | Cable type | - | side sensing | ||
| AUTONICS-BMS300-DDT-1 | — | AUTONICS | Photoelectric sensor | BMS Series | Diffuse reflective | 300 mm | NPN open collector | 12-24 VDC | Cable type | - | side sensing | ||
| AUTONICS-BMS300-DDT-2 | — | AUTONICS | Photoelectric sensor | BMS Series | Diffuse reflective | 300 mm | PNP open collector | 12-24 VDC | Cable type | - | side sensing |
