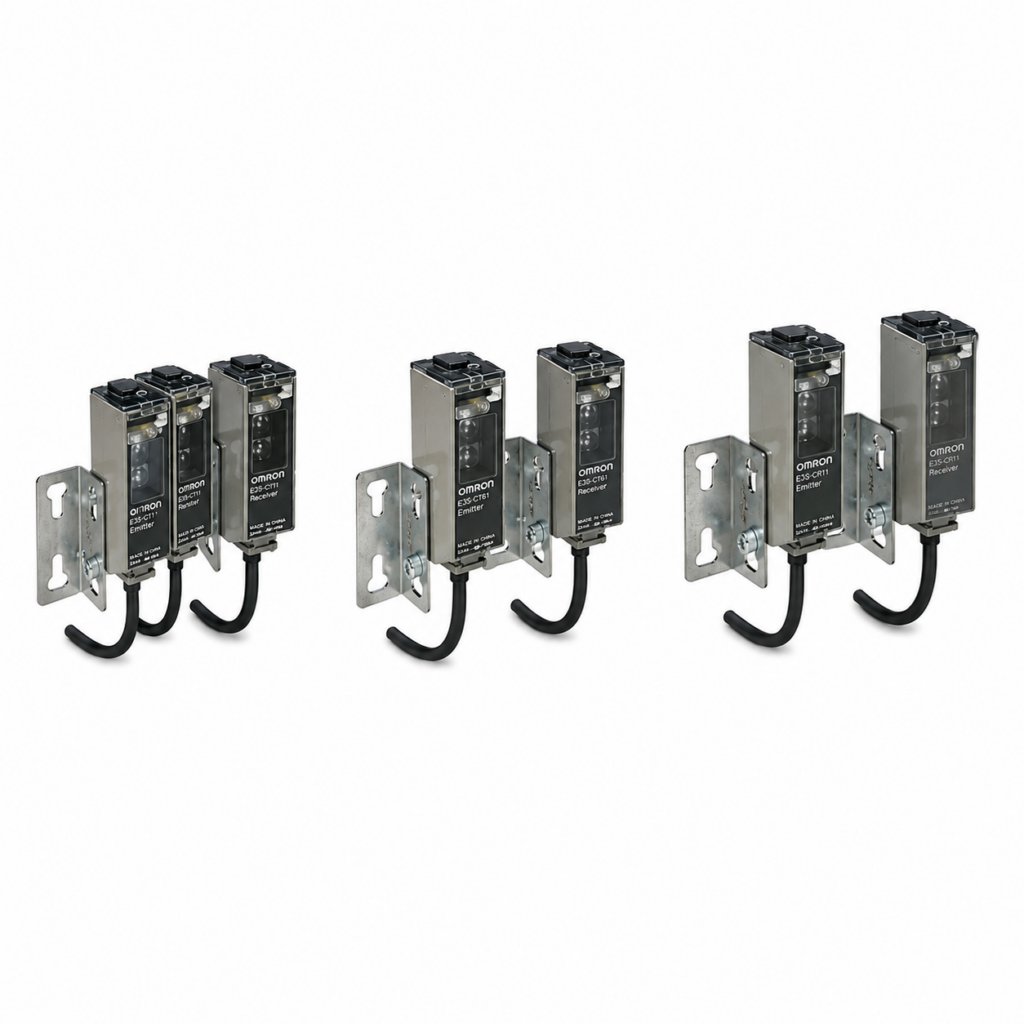

[OMRON] — E3S-C Oil-resistant Long-range Through-beam Photoelectric Sensor (30m, Horizontal/Vertical)
Family ID: OMRON-E3S-C-THROUGH
OMRON E3S-C Series oil-resistant metal housing through-beam photoelectric sensors. 30 m infrared. Horizontal (E3S-CT11) and Vertical (E3S-CT61) mounting. Set, emitter-only, receiver-only. Pre-wired 2 m and M12 pre-wired connector 0.3 m. Slits E39-S61 (0.5/1/2/4 mm) sold separately.
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E3S-CT11 2M | Oil-resistant through-beam Horizontal set 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Horizontal, Metal housing, oil-resistant) | Orientation: Horizontal | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Set | Connection: Pre-wired 2 m | ||
| E3S-CT11-L 2M | Oil-resistant through-beam Horizontal emitter 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Horizontal, Metal housing, oil-resistant) | Orientation: Horizontal | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3S-CT11-D 2M (Receiver) | ||
| E3S-CT11-D 2M | Oil-resistant through-beam Horizontal receiver 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Horizontal, Metal housing, oil-resistant) | Orientation: Horizontal | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3S-CT11-L 2M (Emitter) | ||
| E3S-CT11-M1J 0.3M | Oil-resistant through-beam Horizontal set M12 0.3m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Horizontal, Metal housing, oil-resistant) | Orientation: Horizontal | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Set | Connection: M12 Pre-wired Connector 0.3 m | Required Cable: Requires XS2F-D421-DC0-F (2m) / XS2F-D421-GC0-F (5m) straight or XS2F-D422 L-shape fire-retardant robot cable (sold separately) | ||
| E3S-CT11-L-M1J 0.3M | Oil-resistant through-beam Horizontal emitter M12 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Horizontal, Metal housing, oil-resistant) | Orientation: Horizontal | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Emitter | Connection: M12 Pre-wired Connector 0.3 m | Required Cable: Requires XS2F-D421-DC0-F (2m) / XS2F-D421-GC0-F (5m) straight or XS2F-D422 L-shape fire-retardant robot cable (sold separately) | Pair With: E3S-CT11-D-M1J 0.3M (Receiver) | ||
| E3S-CT11-D-M1J 0.3M | Oil-resistant through-beam Horizontal receiver M12 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Horizontal, Metal housing, oil-resistant) | Orientation: Horizontal | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Receiver | Connection: M12 Pre-wired Connector 0.3 m | Required Cable: Requires XS2F-D421-DC0-F (2m) / XS2F-D421-GC0-F (5m) straight or XS2F-D422 L-shape fire-retardant robot cable (sold separately) | Pair With: E3S-CT11-L-M1J 0.3M (Emitter) | ||
| E3S-CT61 2M | Oil-resistant through-beam Vertical set 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Vertical, Metal housing, oil-resistant) | Orientation: Vertical | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Set | Connection: Pre-wired 2 m | ||
| E3S-CT61-L 2M | Oil-resistant through-beam Vertical emitter 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Vertical, Metal housing, oil-resistant) | Orientation: Vertical | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Emitter | Connection: Pre-wired 2 m | Pair With: E3S-CT61-D 2M (Receiver) | ||
| E3S-CT61-D 2M | Oil-resistant through-beam Vertical receiver 2m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Vertical, Metal housing, oil-resistant) | Orientation: Vertical | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Receiver | Connection: Pre-wired 2 m | Pair With: E3S-CT61-L 2M (Emitter) | ||
| E3S-CT61-M1J 0.3M | Oil-resistant through-beam Vertical set M12 0.3m | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Vertical, Metal housing, oil-resistant) | Orientation: Vertical | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Set | Connection: M12 Pre-wired Connector 0.3 m | Required Cable: Requires XS2F-D421-DC0-F (2m) / XS2F-D421-GC0-F (5m) straight or XS2F-D422 L-shape fire-retardant robot cable (sold separately) | ||
| E3S-CT61-L-M1J 0.3M | Oil-resistant through-beam Vertical emitter M12 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Vertical, Metal housing, oil-resistant) | Orientation: Vertical | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Emitter | Connection: M12 Pre-wired Connector 0.3 m | Required Cable: Requires XS2F-D421-DC0-F (2m) / XS2F-D421-GC0-F (5m) straight or XS2F-D422 L-shape fire-retardant robot cable (sold separately) | Pair With: E3S-CT61-D-M1J 0.3M (Receiver) | ||
| E3S-CT61-D-M1J 0.3M | Oil-resistant through-beam Vertical receiver M12 | OMRON | Sensing Distance: 30 m | Light Source: Infrared | Sensing Method: Through-beam (Vertical, Metal housing, oil-resistant) | Orientation: Vertical | Oil Resistance: Yes | Emitter/Receiver: Emitter: add '-L' suffix; Receiver: add '-D' suffix (e.g. E3S-CT11-L 2M) | Type: Through-beam Receiver | Connection: M12 Pre-wired Connector 0.3 m | Required Cable: Requires XS2F-D421-DC0-F (2m) / XS2F-D421-GC0-F (5m) straight or XS2F-D422 L-shape fire-retardant robot cable (sold separately) | Pair With: E3S-CT61-L-M1J 0.3M (Emitter) |
