Cable Carriers
CP SYSTEM

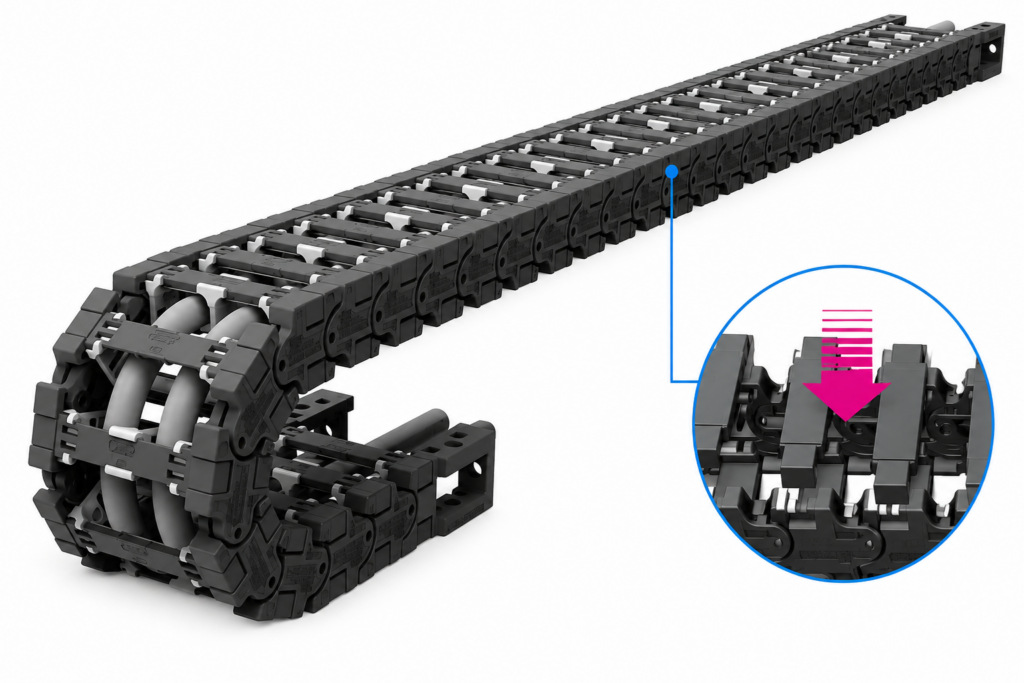

[CP SYSTEM] — nsb020CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 20/40mm)
Family ID: CPS-NSB-020CRG
nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. Special designed structure of the side band offers no friction and minimized dust. Comparing CPS nsb-CR cable chain, expect the dramatic developement of the abrasion rate. Great effect against the operation noise. IPA ISO Class 1 Certificates approved for the strictly regulated environment such as Semiconductors, LCD and PDP production line. Material: CPS-Amide (PA6+G.F)+PTFE, GUR. Noise level 30dB. Speed 10 m/s. Acceleration 20 m/s^2. Temperature -30C ~ +130C. Certificate: CE, IPA, ATEX(Ex), TUV. Hinge Hook assembly, separable. Bending radius R28/R38/R48. Inner width 20-40mm. Brackets, dividers, separators, tie-wraps and chain length are made-to-order options.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| nsb020CRG.20.R28 | nsb020CRG G-Clean Chain, inner width 20mm, bending radius R28mm | CP SYSTEM | Inner Width (C): 20mm | Outer Width (A): 34mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 28mm | Loop Length (Lp): 168mm | Moving Height (H): 79mm | Weight: 0.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb020CRG.20.R38 | nsb020CRG G-Clean Chain, inner width 20mm, bending radius R38mm | CP SYSTEM | Inner Width (C): 20mm | Outer Width (A): 34mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 38mm | Loop Length (Lp): 200mm | Moving Height (H): 99mm | Weight: 0.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb020CRG.20.R48 | nsb020CRG G-Clean Chain, inner width 20mm, bending radius R48mm | CP SYSTEM | Inner Width (C): 20mm | Outer Width (A): 34mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 48mm | Loop Length (Lp): 231mm | Moving Height (H): 119mm | Weight: 0.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb020CRG.40.R28 | nsb020CRG G-Clean Chain, inner width 40mm, bending radius R28mm | CP SYSTEM | Inner Width (C): 40mm | Outer Width (A): 54mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 28mm | Loop Length (Lp): 168mm | Moving Height (H): 79mm | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb020CRG.40.R38 | nsb020CRG G-Clean Chain, inner width 40mm, bending radius R38mm | CP SYSTEM | Inner Width (C): 40mm | Outer Width (A): 54mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 38mm | Loop Length (Lp): 200mm | Moving Height (H): 99mm | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order | ||
| nsb020CRG.40.R48 | nsb020CRG G-Clean Chain, inner width 40mm, bending radius R48mm | CP SYSTEM | Inner Width (C): 40mm | Outer Width (A): 54mm | Outer Height (B): 22mm | Inner Height (D): 13.5mm | Bending Radius (R): 48mm | Loop Length (Lp): 231mm | Moving Height (H): 119mm | Weight: 0.4 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order |
