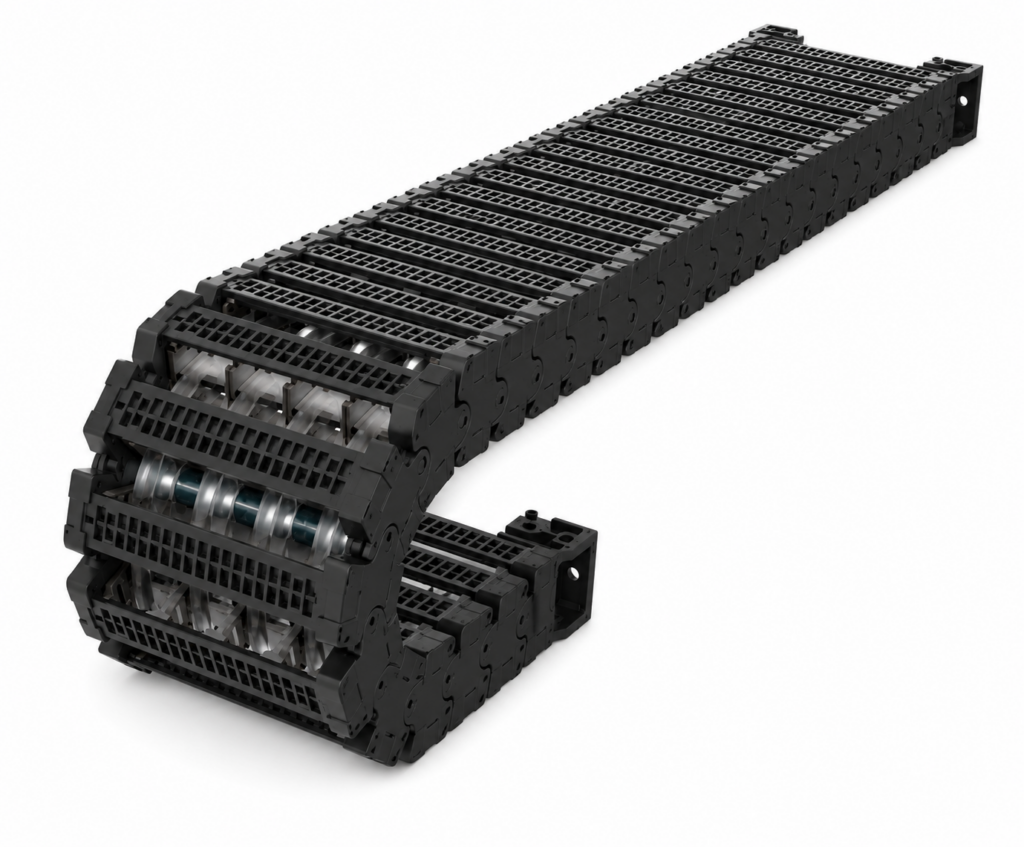

[CP SYSTEM] — nsb035CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 35-200mm)
Cable Carriers CP SYSTEM

[CP SYSTEM] — nsb035CRG G-Clean Chain (Clean Room Type, UHMW-PE, Inner Width 35-200mm)

Family ID: CPS-NSB-035CRG

nsb G-Clean Chain - Clean Room Type with UHMW-PE material. Low Dust, Low Noise Cable Chain. IPA ISO Class 1 certified for Semiconductors, LCD and PDP production lines.

32 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
nsb035CRG.35.R60 nsb035CRG G-Clean Chain, inner width 35mm, bending radius R60mm CP SYSTEM Inner Width (C): 35mm | Outer Width (A): 55mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 60mm | Loop Length (Lp): 329mm | Moving Height (H): 188mm | Weight: 1.185 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.35.R75 nsb035CRG G-Clean Chain, inner width 35mm, bending radius R75mm CP SYSTEM Inner Width (C): 35mm | Outer Width (A): 55mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 75mm | Loop Length (Lp): 376mm | Moving Height (H): 218mm | Weight: 1.185 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.35.R100 nsb035CRG G-Clean Chain, inner width 35mm, bending radius R100mm CP SYSTEM Inner Width (C): 35mm | Outer Width (A): 55mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 100mm | Loop Length (Lp): 454mm | Moving Height (H): 268mm | Weight: 1.185 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.35.R125 nsb035CRG G-Clean Chain, inner width 35mm, bending radius R125mm CP SYSTEM Inner Width (C): 35mm | Outer Width (A): 55mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 125mm | Loop Length (Lp): 533mm | Moving Height (H): 318mm | Weight: 1.185 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.50.R60 nsb035CRG G-Clean Chain, inner width 50mm, bending radius R60mm CP SYSTEM Inner Width (C): 50mm | Outer Width (A): 70mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 60mm | Loop Length (Lp): 329mm | Moving Height (H): 188mm | Weight: 1.247 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.50.R75 nsb035CRG G-Clean Chain, inner width 50mm, bending radius R75mm CP SYSTEM Inner Width (C): 50mm | Outer Width (A): 70mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 75mm | Loop Length (Lp): 376mm | Moving Height (H): 218mm | Weight: 1.247 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.50.R100 nsb035CRG G-Clean Chain, inner width 50mm, bending radius R100mm CP SYSTEM Inner Width (C): 50mm | Outer Width (A): 70mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 100mm | Loop Length (Lp): 454mm | Moving Height (H): 268mm | Weight: 1.247 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.50.R125 nsb035CRG G-Clean Chain, inner width 50mm, bending radius R125mm CP SYSTEM Inner Width (C): 50mm | Outer Width (A): 70mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 125mm | Loop Length (Lp): 533mm | Moving Height (H): 318mm | Weight: 1.247 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.55.R60 nsb035CRG G-Clean Chain, inner width 55mm, bending radius R60mm CP SYSTEM Inner Width (C): 55mm | Outer Width (A): 75mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 60mm | Loop Length (Lp): 329mm | Moving Height (H): 188mm | Weight: 1.27 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.55.R75 nsb035CRG G-Clean Chain, inner width 55mm, bending radius R75mm CP SYSTEM Inner Width (C): 55mm | Outer Width (A): 75mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 75mm | Loop Length (Lp): 376mm | Moving Height (H): 218mm | Weight: 1.27 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.55.R100 nsb035CRG G-Clean Chain, inner width 55mm, bending radius R100mm CP SYSTEM Inner Width (C): 55mm | Outer Width (A): 75mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 100mm | Loop Length (Lp): 454mm | Moving Height (H): 268mm | Weight: 1.27 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.55.R125 nsb035CRG G-Clean Chain, inner width 55mm, bending radius R125mm CP SYSTEM Inner Width (C): 55mm | Outer Width (A): 75mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 125mm | Loop Length (Lp): 533mm | Moving Height (H): 318mm | Weight: 1.27 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.75.R60 nsb035CRG G-Clean Chain, inner width 75mm, bending radius R60mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 95mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 60mm | Loop Length (Lp): 329mm | Moving Height (H): 188mm | Weight: 1.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.75.R75 nsb035CRG G-Clean Chain, inner width 75mm, bending radius R75mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 95mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 75mm | Loop Length (Lp): 376mm | Moving Height (H): 218mm | Weight: 1.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.75.R100 nsb035CRG G-Clean Chain, inner width 75mm, bending radius R100mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 95mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 100mm | Loop Length (Lp): 454mm | Moving Height (H): 268mm | Weight: 1.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.75.R125 nsb035CRG G-Clean Chain, inner width 75mm, bending radius R125mm CP SYSTEM Inner Width (C): 75mm | Outer Width (A): 95mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 125mm | Loop Length (Lp): 533mm | Moving Height (H): 318mm | Weight: 1.36 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.100.R60 nsb035CRG G-Clean Chain, inner width 100mm, bending radius R60mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 120mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 60mm | Loop Length (Lp): 329mm | Moving Height (H): 188mm | Weight: 1.474 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.100.R75 nsb035CRG G-Clean Chain, inner width 100mm, bending radius R75mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 120mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 75mm | Loop Length (Lp): 376mm | Moving Height (H): 218mm | Weight: 1.474 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.100.R100 nsb035CRG G-Clean Chain, inner width 100mm, bending radius R100mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 120mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 100mm | Loop Length (Lp): 454mm | Moving Height (H): 268mm | Weight: 1.474 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.100.R125 nsb035CRG G-Clean Chain, inner width 100mm, bending radius R125mm CP SYSTEM Inner Width (C): 100mm | Outer Width (A): 120mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 125mm | Loop Length (Lp): 533mm | Moving Height (H): 318mm | Weight: 1.474 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.125.R60 nsb035CRG G-Clean Chain, inner width 125mm, bending radius R60mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 145mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 60mm | Loop Length (Lp): 329mm | Moving Height (H): 188mm | Weight: 1.57 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.125.R75 nsb035CRG G-Clean Chain, inner width 125mm, bending radius R75mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 145mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 75mm | Loop Length (Lp): 376mm | Moving Height (H): 218mm | Weight: 1.57 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.125.R100 nsb035CRG G-Clean Chain, inner width 125mm, bending radius R100mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 145mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 100mm | Loop Length (Lp): 454mm | Moving Height (H): 268mm | Weight: 1.57 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.125.R125 nsb035CRG G-Clean Chain, inner width 125mm, bending radius R125mm CP SYSTEM Inner Width (C): 125mm | Outer Width (A): 145mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 125mm | Loop Length (Lp): 533mm | Moving Height (H): 318mm | Weight: 1.57 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.150.R60 nsb035CRG G-Clean Chain, inner width 150mm, bending radius R60mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 170mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 60mm | Loop Length (Lp): 329mm | Moving Height (H): 188mm | Weight: 1.68 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.150.R75 nsb035CRG G-Clean Chain, inner width 150mm, bending radius R75mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 170mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 75mm | Loop Length (Lp): 376mm | Moving Height (H): 218mm | Weight: 1.68 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.150.R100 nsb035CRG G-Clean Chain, inner width 150mm, bending radius R100mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 170mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 100mm | Loop Length (Lp): 454mm | Moving Height (H): 268mm | Weight: 1.68 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.150.R125 nsb035CRG G-Clean Chain, inner width 150mm, bending radius R125mm CP SYSTEM Inner Width (C): 150mm | Outer Width (A): 170mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 125mm | Loop Length (Lp): 533mm | Moving Height (H): 318mm | Weight: 1.68 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.200.R60 nsb035CRG G-Clean Chain, inner width 200mm, bending radius R60mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 220mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 60mm | Loop Length (Lp): 329mm | Moving Height (H): 188mm | Weight: 1.9 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.200.R75 nsb035CRG G-Clean Chain, inner width 200mm, bending radius R75mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 220mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 75mm | Loop Length (Lp): 376mm | Moving Height (H): 218mm | Weight: 1.9 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.200.R100 nsb035CRG G-Clean Chain, inner width 200mm, bending radius R100mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 220mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 100mm | Loop Length (Lp): 454mm | Moving Height (H): 268mm | Weight: 1.9 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
nsb035CRG.200.R125 nsb035CRG G-Clean Chain, inner width 200mm, bending radius R125mm CP SYSTEM Inner Width (C): 200mm | Outer Width (A): 220mm | Outer Height (B): 52.8mm | Inner Height (D): 38.5mm | Bending Radius (R): 125mm | Loop Length (Lp): 533mm | Moving Height (H): 318mm | Weight: 1.9 kg/m | Material: CPS-Amide (PA6+G.F)+PTFE, GUR | Noise: 30dB (DIN EN 61672-1) | Speed: 10 m/s | Acceleration: 20 m/s^2 | Temperature: -30C ~ +130C | Certificate: CE, IPA(ISO Class 1), ATEX(Ex), TUV | Assembly: Hinge Hook Type | Options: Brackets/Dividers/Separators/Tie-Wraps/Length: made-to-order
