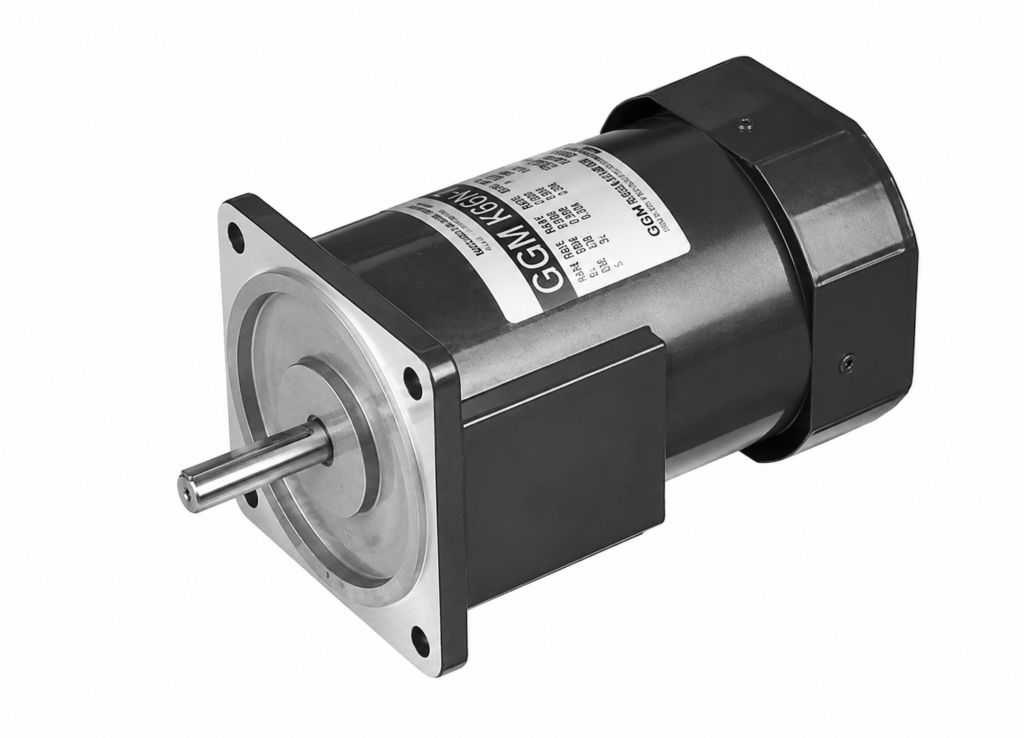

[GGM] — 90W □90mm 2-Pole Single-phase AC Induction Motor (High-Speed, Lead Wire)
AC Geared Motors GGM

[GGM] — 90W □90mm 2-Pole Single-phase AC Induction Motor (High-Speed, Lead Wire)

Family ID: GGM-K9I90F2P-1P

GGM 90W single-phase AC induction motor, □90mm frame, 2-pole high-speed (2700rpm@50Hz / 3200rpm@60Hz), continuous rating. Lead wire type, straight (S) shaft. 220/230V with built-in capacitor (5µF).

1 product code available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
K9IS90FC-2P GGM 90W 2-pole Single-phase induction motor, 220/230V, Straight shaft, Lead wire GGM Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Single-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 5µF | Operating Points: 220V/50Hz: 0.68A, Start 0.36/3.60 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 220V/60Hz: 0.83A, Start 0.35/3.50 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | 230V/50Hz: 0.71A, Start 0.37/3.70 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 230V/60Hz: 0.87A, Start 0.37/3.70 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
