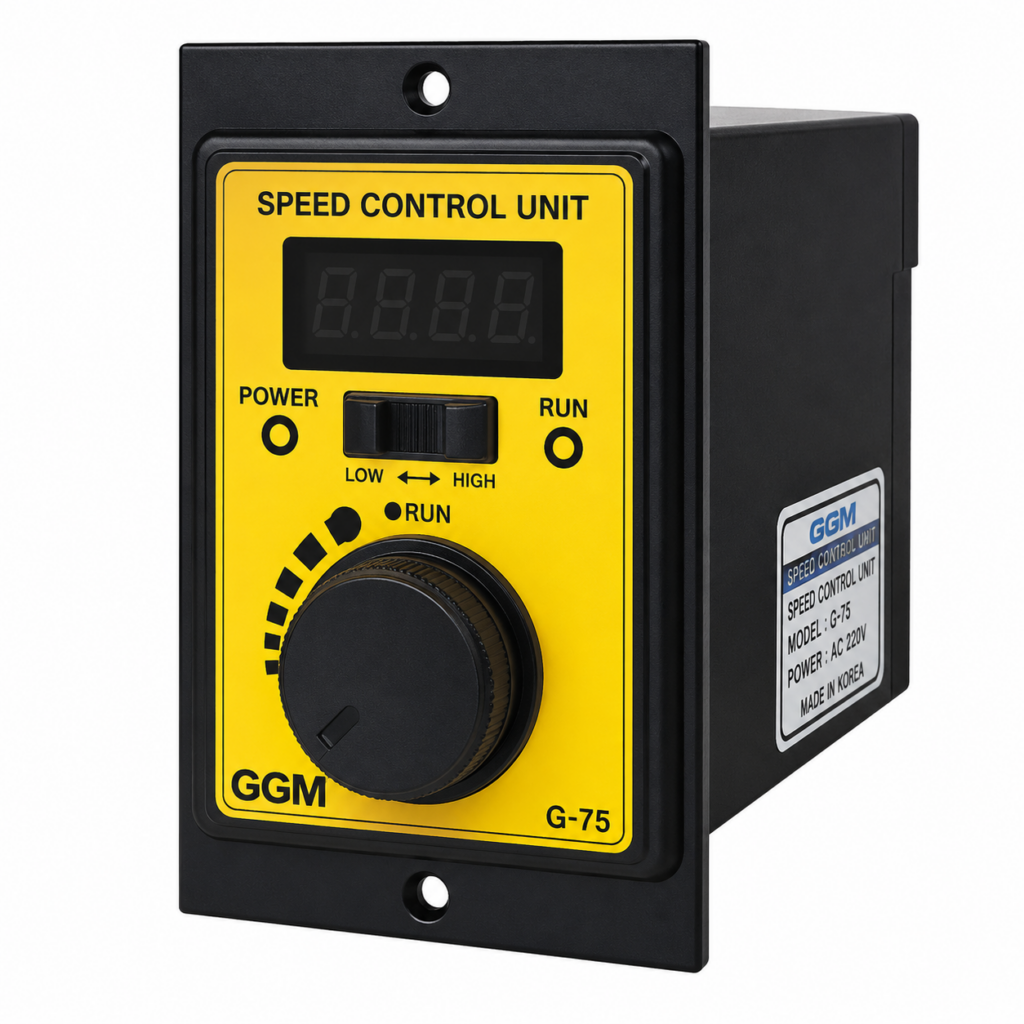

[GGM] — GUS Speed Control Unit for AC Geared Motors (6–180W, Single-phase)
Family ID: GGM-GUS
GGM GUS speed control unit for AC induction & reversible geared motors, 6–180W. Front-dial control with digital rpm display, 100–1730 r/min (60Hz), plus accel/decel and lock parameter modes.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| GUS-U | GGM GUS-U speed control unit, single-phase AC110/115V | GGM | Input: 1-ph AC 110/115V 50/60Hz (±10%) | Applied motor: 6–180W induction/reversible | Speed range: 100–1730 r/min @60Hz, 100–1430 @50Hz | Speed regulation: ±5% | Control: front dial + digital rpm display | Parameters: gear ratio / accel / decel / key-lock | Operating temp: -10–40°C | ||
| GUS-C | GGM GUS-C speed control unit, single-phase AC220–240V | GGM | Input: 1-ph AC 220–240V 50/60Hz (±10%) | Applied motor: 6–180W induction/reversible | Speed range: 100–1730 r/min @60Hz, 100–1430 @50Hz | Speed regulation: ±5% | Control: front dial + digital rpm display | Parameters: gear ratio / accel / decel / key-lock | Operating temp: -10–40°C | ||
| KE-05 | GUS connector extension cable, 0.5m | GGM | Type: Connector extension cable (motor–controller) | Length: 0.5m | For: GUS speed control unit | ||
| KE-10 | GUS connector extension cable, 1m | GGM | Type: Connector extension cable (motor–controller) | Length: 1m | For: GUS speed control unit | ||
| KE-15 | GUS connector extension cable, 1.5m | GGM | Type: Connector extension cable (motor–controller) | Length: 1.5m | For: GUS speed control unit | ||
| KE-20 | GUS connector extension cable, 2m | GGM | Type: Connector extension cable (motor–controller) | Length: 2m | For: GUS speed control unit |
