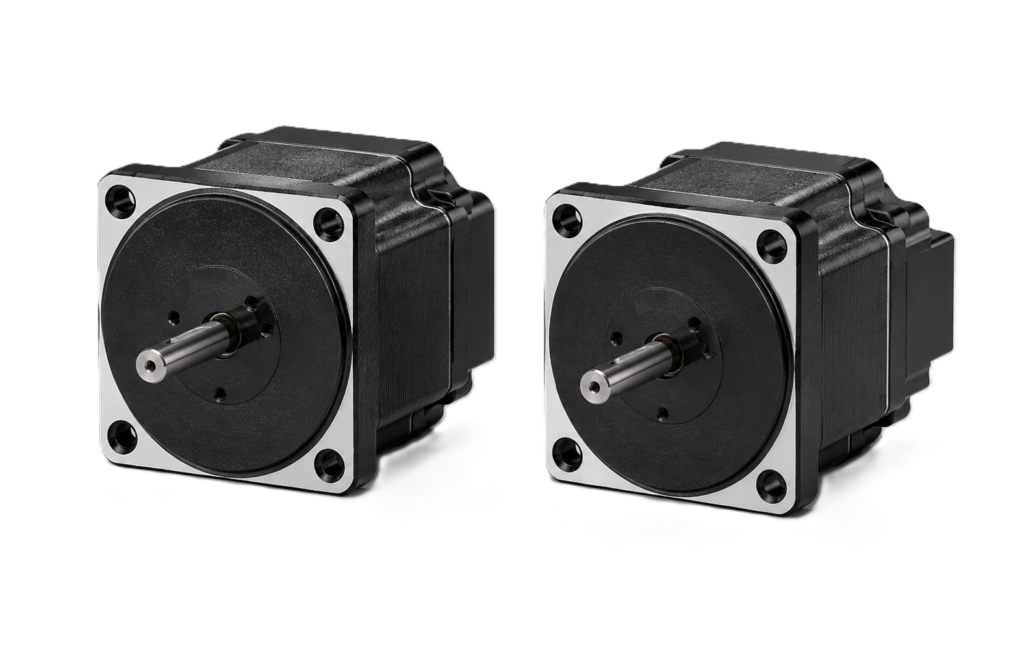

[GGM] — K10B200N Brushless DC Motor Unit 200W (□104mm, Single-phase 200~230V AC Input, B Series)
Family ID: GGM-K10B200N
GGM K10B200N Brushless DC Motor Unit, 200W, □104mm frame, single-phase 200~230V AC voltage input. Gear type (pinion shaft), D-cut, and key output shaft, UL certified (E504659). Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE). Rated torque 0.65 N·m, starting torque 1.15 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min. Insulation class E (120℃), IP65 (except output/mounting).
12 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| K10BH200NC | 200W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Standard | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | ||
| K10BH200NC-B | 200W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | ||
| K10BH200NC-E | 200W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | ||
| K10BH200NC-BE | 200W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake + Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately) | ||
| K10BS200NC | 200W BLDC, D-cut type, Single-phase 200~230V, Standard | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | ||
| K10BS200NC-B | 200W BLDC, D-cut type, Single-phase 200~230V, Brake | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | ||
| K10BS200NC-E | 200W BLDC, D-cut type, Single-phase 200~230V, Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | ||
| K10BS200NC-BE | 200W BLDC, D-cut type, Single-phase 200~230V, Brake + Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling | ||
| K10BK200NC | 200W BLDC, Key type, Single-phase 200~230V, Standard | GGM | Output: 200W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) | ||
| K10BK200NC-B | 200W BLDC, Key type, Single-phase 200~230V, Brake | GGM | Output: 200W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) | ||
| K10BK200NC-E | 200W BLDC, Key type, Single-phase 200~230V, Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) | ||
| K10BK200NC-BE | 200W BLDC, Key type, Single-phase 200~230V, Brake + Encoder | GGM | Output: 200W | Frame: □104mm | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 2.7A | Max Input Current: 5.5A | Rated Output Current: 1.7A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Key type — keyed output shaft (key & keyway accessory included) |
