Chains & Wires
KBC

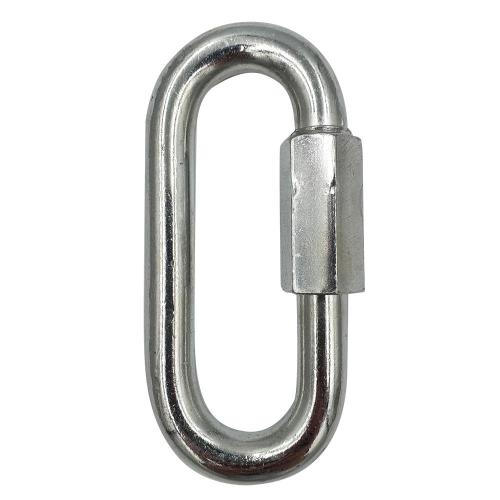

[KBC] — 560-2238 Quick Link
Family ID: 560-2238
KBC 560-2238 Quick Link is a chain-connecting component designed for fast, tool-free joining of chain sections, sourced direct from Korea. Quick links like this are commonly used in rigging, lifting, and securing applications where chains need to be linked or extended without specialized equipment. Request a quote today for export-ready supply at competitive pricing, fulfilled by a KITA-registered Korean exporter.
9 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 560-2238 | — | KBC | 4mm | Spec: 4 | L: 39.5 | A: 19.5 | C: 5.0 | Max Load: 72 | B: 12.5 | ||
| 560-2247 | — | KBC | 5mm | Spec: 5 | L: 48.0 | A: 23.0 | C: 7.0 | Max Load: 118 | B: 15.0 | ||
| 560-2256 | — | KBC | 6mm | Spec: 6 | L: 57.0 | A: 26.0 | C: 8.0 | Max Load: 152 | B: 19.0 | ||
| 560-2265 | — | KBC | 7mm | Spec: 7 | L: 66.0 | A: 30.0 | C: 9.0 | Max Load: 181 | B: 21.0 | ||
| 560-2274 | — | KBC | 8mm | Spec: 8 | L: 76.0 | A: 34.0 | C: 9.0 | Max Load: 227 | B: 23.0 | ||
| 560-2283 | — | KBC | 9mm | Spec: 9 | L: 83.0 | A: 37.0 | C: 10.0 | Max Load: 295 | B: 26.0 | ||
| 560-2292 | — | KBC | 10mm | Spec: 10 | L: 89.0 | A: 40.0 | C: 13.0 | Max Load: 318 | B: 29.0 | ||
| 560-2308 | — | KBC | 11mm | Spec: 11 | L: 99.0 | A: 43.0 | C: 13.0 | Max Load: 320 | B: 33.0 | ||
| 560-2317 | — | KBC | 12mm | Spec: 12 | L: 107.0 | A: 49.0 | C: 13.0 | Max Load: 363 | B: 32.0 |
