Chains & Wires
KBC

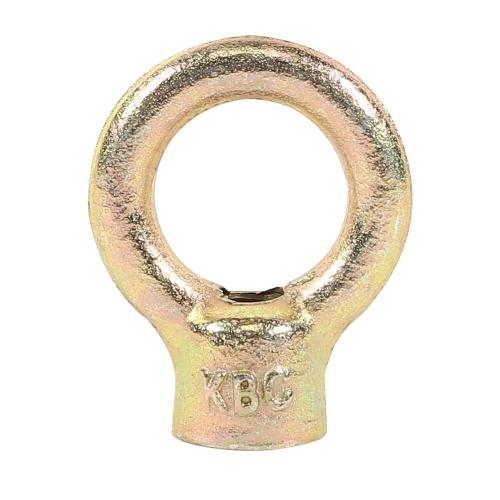

[KBC] — 560-1257 Eye Nut
Family ID: 560-1257
The KBC 560-1257 Eye Nut is a threaded lifting hardware component designed for secure load attachment and rigging applications, sourced direct from Korea. Commonly used in conjunction with lifting chains, hoists, and wire rope assemblies, eye nuts allow maintenance crews and rigging teams to create reliable anchor points on machinery, structural members, or heavy equipment during lifting operations. Request a quote today for export-ready supply of this KBC rigging hardware at competitive pricing through a KITA-registered Korean exporter.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 560-1257 | — | KBC | 8mm | Spec: 8 | Weight: 0.04 | Safe Working Load: 0.08 | A: 32.6 | C: 6.3 | E: 16.0 | H: 39.3 | B: 20.0 | ||
| 560-1266 | — | KBC | 10mm | Spec: 10 | Weight: 0.07 | Safe Working Load: 0.15 | A: 41.0 | C: 8.0 | E: 20.0 | H: 48.5 | B: 25.0 | ||
| 560-1275 | — | KBC | 12mm | Spec: 12 | Weight: 0.15 | Safe Working Load: 0.22 | A: 50.0 | C: 10.0 | E: 25.0 | H: 61.0 | B: 30.0 | ||
| 560-1284 | — | KBC | 14mm | Spec: 14 | Weight: 0.20 | Safe Working Load: 0.40 | A: 59.0 | C: 12.4 | E: 25.0 | H: 71.0 | B: 35.5 | ||
| 560-1293 | — | KBC | 16mm | Spec: 16 | Weight: 0.24 | Safe Working Load: 0.45 | A: 60.0 | C: 12.5 | E: 30.0 | H: 72.0 | B: 35.0 | ||
| 560-1309 | — | KBC | 20mm | Spec: 20 | Weight: 0.40 | Safe Working Load: 0.63 | A: 72.0 | C: 16.0 | E: 35.0 | H: 86.0 | B: 40.0 | ||
| 560-1318 | — | KBC | 22mm | Spec: 22 | Weight: 0.91 | Safe Working Load: 0.70 | A: 90.0 | C: 20.0 | E: 45.0 | H: 111.0 | B: 50.0 | ||
| 560-1327 | — | KBC | 24mm | Spec: 24 | Weight: 0.81 | Safe Working Load: 0.95 | A: 90.0 | C: 20.0 | E: 45.0 | H: 111.0 | B: 50.0 |
