Chains & Wires
UDT

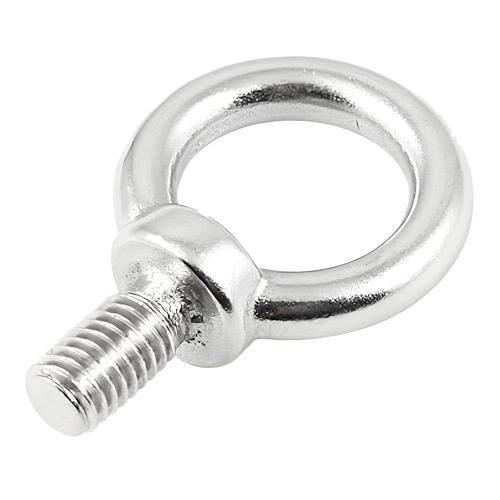

[UDT] — 521-6545 Shackle Eye Bolt
Family ID: 521-6545
The UDT 521-6545 Shackle Eye Bolt is a heavy-duty lifting and rigging attachment sourced direct from Korea. Shackle eye bolts are commonly used in industrial lifting, load securing, and rigging applications where a reliable anchor point is needed to connect chains, wire ropes, or slings. Request a quote today for export-ready supply of this rigging hardware at competitive pricing through a KITA-registered Korean exporter.
6 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| 521-6545 | — | UDT | 6mm (Stainless Steel) | Spec: 6 | Weight: 0.01 | A: 6 | C: 26.5 | Shape: mm | D: 17 | E: 5 | I: 14 | H: 25 | B: 12 | ||
| 521-6554 | — | UDT | 8mm (Stainless Steel) | Spec: 8 | Weight: 0.02 | A: 8 | C: 31.4 | Shape: mm | D: 20 | E: 6 | I: 15 | H: 32 | B: 15 | ||
| 521-6563 | — | UDT | 10mm Stainless Steel | Spec: 10 | Weight: 0.05 | A: 10 | C: 39.0 | Shape: mm | D: 25 | E: 7 | I: 18 | H: 40 | B: 19 | ||
| 521-6572 | — | UDT | 12mm Stainless Steel | Spec: 12 | Weight: 0.05 | A: 12 | C: 48.0 | Shape: mm | D: 30 | E: 9 | I: 21 | H: 48 | B: 23 | ||
| 521-6581 | — | UDT | 16mm Stainless Steel | Spec: 16 | Weight: 0.17 | A: 16 | C: 58.0 | Shape: mm | D: 36 | E: 11 | I: 28 | H: 60 | B: 28 | ||
| 521-6590 | — | UDT | 20mm (Stainless) | Spec: 20 | Weight: 0.29 | A: 20 | C: 70.0 | Shape: mm | D: 40 | E: 15 | I: 31 | H: 70 | B: 32 |
