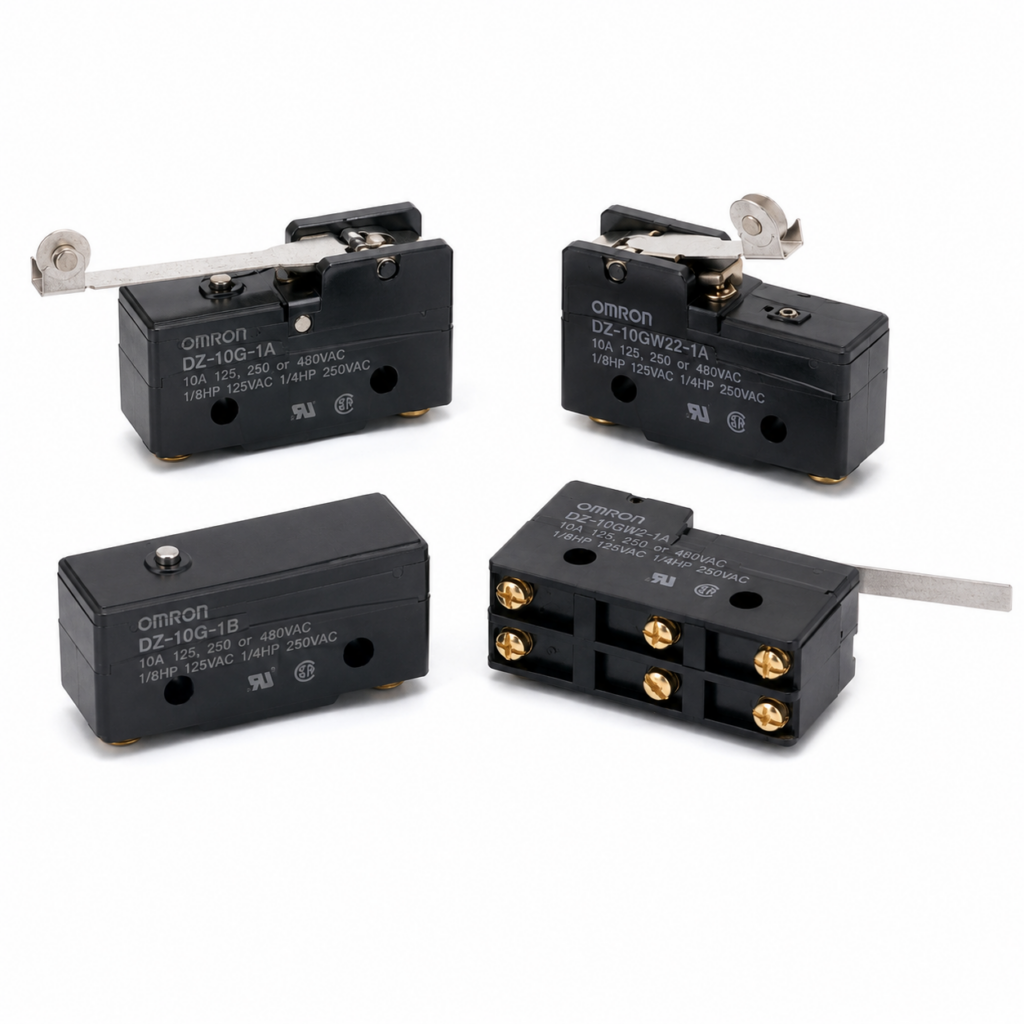

[OMRON] — DZ Special-purpose Basic Switch (DPDT, Two Independent Circuit Control)
Family ID: OMRON-DZ-BASIC
DPDT Basic Switch for Two Independent Circuit Control
14 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| DZ-10G-1A | DZ Pin plunger Solder (-1A) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Pin plunger | Operating Travel: Standard | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Solder (-1A) | ||
| DZ-10G-1B | DZ Pin plunger Screw (-B) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Pin plunger | Operating Travel: Standard | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Screw (-B) | ||
| DZ-10GW-1A | DZ Hinge lever, High OT Solder (-1A) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Hinge lever | Operating Travel: High OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Solder (-1A) | ||
| DZ-10GW-1B | DZ Hinge lever, High OT Screw (-B) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Hinge lever | Operating Travel: High OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Screw (-B) | ||
| DZ-10GV-1A | DZ Hinge lever, Low OT Solder (-1A) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Hinge lever | Operating Travel: Low OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Solder (-1A) | ||
| DZ-10GV-1B | DZ Hinge lever, Low OT Screw (-B) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Hinge lever | Operating Travel: Low OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Screw (-B) | ||
| DZ-10GW22-1A | DZ Short hinge roller lever, High OT Solder (-1A) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Short hinge roller lever | Operating Travel: High OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Solder (-1A) | ||
| DZ-10GW22-1B | DZ Short hinge roller lever, High OT Screw (-B) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Short hinge roller lever | Operating Travel: High OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Screw (-B) | ||
| DZ-10GV22-1A | DZ Short hinge roller lever, Low OT Solder (-1A) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Short hinge roller lever | Operating Travel: Low OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Solder (-1A) | ||
| DZ-10GV22-1B | DZ Short hinge roller lever, Low OT Screw (-B) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Short hinge roller lever | Operating Travel: Low OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Screw (-B) | ||
| DZ-10GW2-1A | DZ Hinge roller lever, High OT Solder (-1A) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Hinge roller lever | Operating Travel: High OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Solder (-1A) | ||
| DZ-10GW2-1B | DZ Hinge roller lever, High OT Screw (-B) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Hinge roller lever | Operating Travel: High OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Screw (-B) | ||
| DZ-10GV2-1A | DZ Hinge roller lever, Low OT Solder (-1A) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Hinge roller lever | Operating Travel: Low OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Solder (-1A) | ||
| DZ-10GV2-1B | DZ Hinge roller lever, Low OT Screw (-B) | OMRON | Type: Basic Switch (DPDT, Special-purpose) | Actuator: Hinge roller lever | Operating Travel: Low OT | Contact Configuration: DPDT | Contact Gap: G (0.5mm) | Terminal: Screw (-B) |
