Photoelectric
Omron

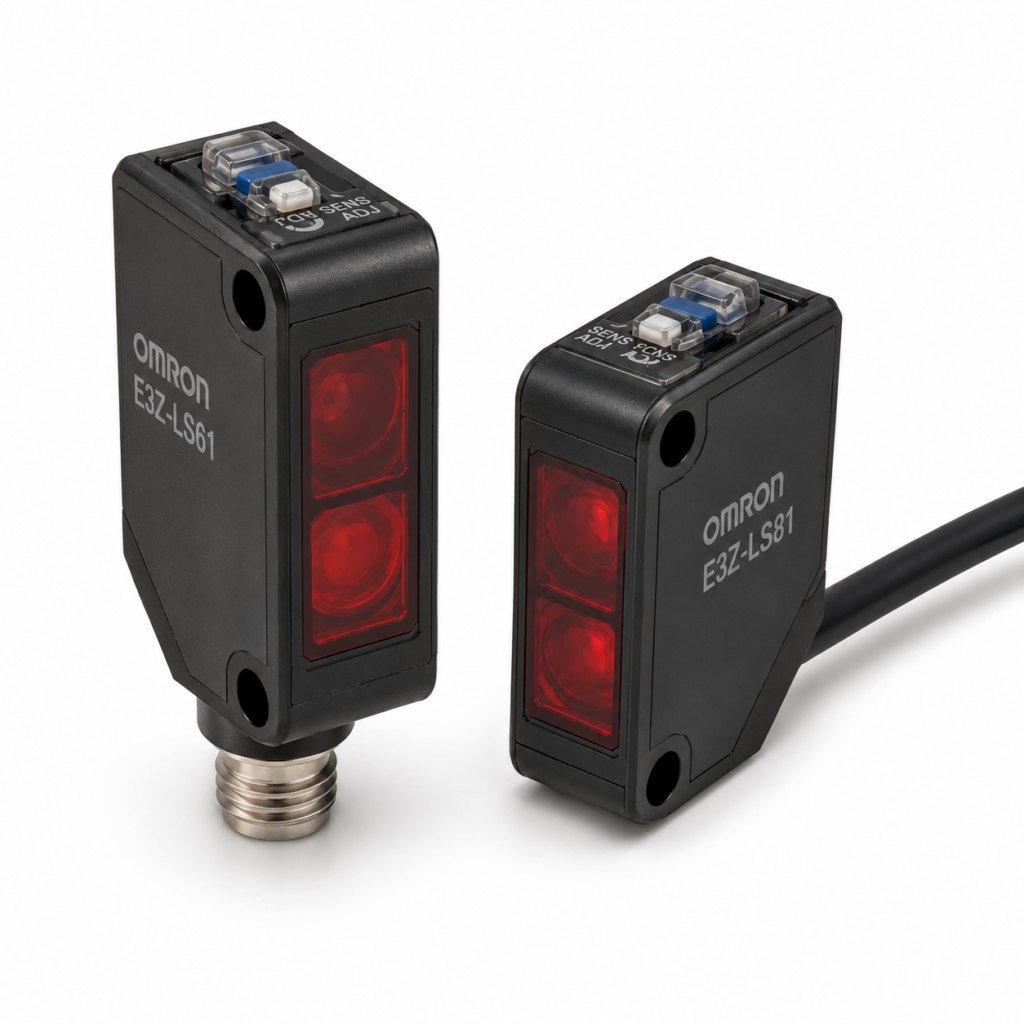

[OMRON] — E3Z-LS Distance-settable Photoelectric Sensor (BGS/FGS, NPN/PNP)
Family ID: OMRON-E3Z-LS
OMRON E3Z-LS Series distance-settable photoelectric sensor. Unaffected by workpiece color and background. Red light. Long range BGS/FGS (E3Z-LS61/81): 20~40 mm (BGS min) to 20~200 mm (BGS max); FGS 40 mm min to 200 mm min incident threshold. Short range BGS (E3Z-LS63/83): 2~20 mm (BGS min) to 2~80 mm (BGS max). Pre-wired 2 m and M8 connector (4-pin). NPN and PNP output. M12 pre-wired connector (-M1J 0.3M) and Smartclick (-M1TJ 0.3M) variants available. M8 cables (XS3F-M421/422) sold separately.
8 product codes available in this family
Product Codes & Specifications
| Product Code | Description | Brand | Spec | ||
|---|---|---|---|---|---|
| E3Z-LS61 2M | Distance-settable BGS/FGS long range NPN pre-wired 2m | OMRON | Sensing Distance: BGS: 20~200 mm / FGS: 40~200 mm min incident threshold | Light Source: Red light | Sensing Method: Distance-settable (BGS/FGS) | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | ||
| E3Z-LS66 | Distance-settable BGS/FGS long range NPN M8 connector | OMRON | Sensing Distance: BGS: 20~200 mm / FGS: 40~200 mm min incident threshold | Light Source: Red light | Sensing Method: Distance-settable (BGS/FGS) | Output: NPN | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector (4-pin) | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | ||
| E3Z-LS81 2M | Distance-settable BGS/FGS long range PNP pre-wired 2m | OMRON | Sensing Distance: BGS: 20~200 mm / FGS: 40~200 mm min incident threshold | Light Source: Red light | Sensing Method: Distance-settable (BGS/FGS) | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | ||
| E3Z-LS86 | Distance-settable BGS/FGS long range PNP M8 connector | OMRON | Sensing Distance: BGS: 20~200 mm / FGS: 40~200 mm min incident threshold | Light Source: Red light | Sensing Method: Distance-settable (BGS/FGS) | Output: PNP | Also Available: M12 pre-wired connector also available: add '-M1J 0.3M' suffix (XS2 series) / M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector (4-pin) | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | ||
| E3Z-LS63 2M | Distance-settable BGS short range NPN pre-wired 2m | OMRON | Sensing Distance: BGS: 2~80 mm (min 2 mm / max 80 mm) | Light Source: Red light | Sensing Method: Distance-settable (BGS, short range) | Output: NPN | Also Available: M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | ||
| E3Z-LS68 | Distance-settable BGS short range NPN M8 connector | OMRON | Sensing Distance: BGS: 2~80 mm (min 2 mm / max 80 mm) | Light Source: Red light | Sensing Method: Distance-settable (BGS, short range) | Output: NPN | Also Available: M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector (4-pin) | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) | ||
| E3Z-LS83 2M | Distance-settable BGS short range PNP pre-wired 2m | OMRON | Sensing Distance: BGS: 2~80 mm (min 2 mm / max 80 mm) | Light Source: Red light | Sensing Method: Distance-settable (BGS, short range) | Output: PNP | Also Available: M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: Pre-wired 2 m | ||
| E3Z-LS88 | Distance-settable BGS short range PNP M8 connector | OMRON | Sensing Distance: BGS: 2~80 mm (min 2 mm / max 80 mm) | Light Source: Red light | Sensing Method: Distance-settable (BGS, short range) | Output: PNP | Also Available: M12 Smartclick connector also available: add '-M1TJ 0.3M' suffix (XS5 series) | Connection: M8 Connector (4-pin) | Required Cable: Requires XS3F-M421-402-A (2m) / XS3F-M421-405-A (5m) straight or XS3F-M422 L-shaped (sold separately) |
