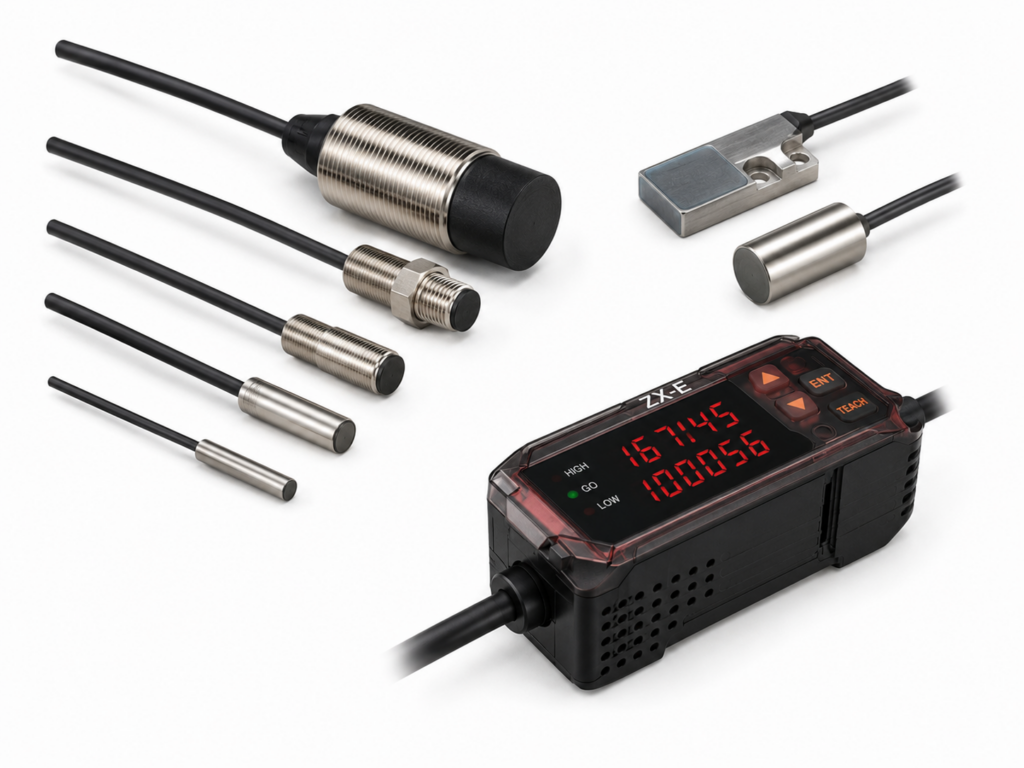

[OMRON] — ZX-E Inductive Displacement Sensor Amplifier Unit (NPN/PNP, DC, 2m)
Displacement Omron

[OMRON] — ZX-E Inductive Displacement Sensor Amplifier Unit (NPN/PNP, DC, 2m)

Family ID: OMRON-ZX-E-AMP

OMRON ZX-E Series inductive displacement sensor amplifier units. ZX-EDA11 (NPN) and ZX-EDA41 (PNP). DC power supply. Cable 2 m. ZX-XBE1 mounting bracket included. ZX-XBE2 DIN track bracket sold separately.

2 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
ZX-EDA11 2M Inductive displacement amplifier NPN DC 2m OMRON Type: Amplifier Unit | Power Supply: DC | Output: NPN | Cable Length: 2 m | Compatible Heads: All ZX-E series sensor heads | Note: Version 1.200+ required for ZX-EV04T; version 1.300+ for ZX-EM02HT | Accessories: ZX-CAL2/ZX-SF11/ZX-SW11EV3/ZX-XC1A~8A sold separately
ZX-EDA41 2M Inductive displacement amplifier PNP DC 2m OMRON Type: Amplifier Unit | Power Supply: DC | Output: PNP | Cable Length: 2 m | Compatible Heads: All ZX-E series sensor heads | Note: Version 1.200+ required for ZX-EV04T; version 1.300+ for ZX-EM02HT
