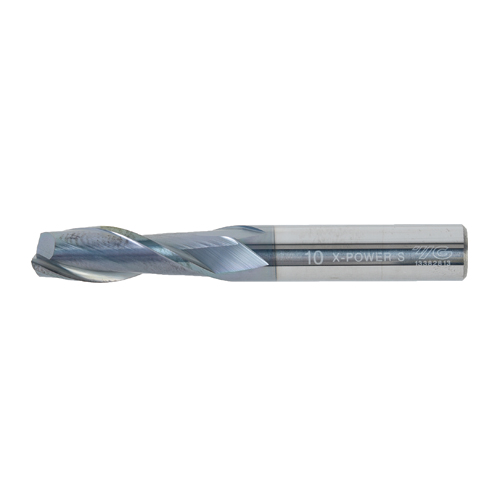

[YG-1] — SEM810120 Carbide End Mill Carbide End Mill (X-POWER S)
End Mills YG-1

[YG-1] — SEM810120 Carbide End Mill Carbide End Mill (X-POWER S)

Family ID: 304-4759

Carbide End Mill (X-POWER S) from YG-1, sourced from Korea.

47 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
304-4759 SEM810120 YG-1 2F-12.0*12*30*80MM(SEM810120) | Spec: 12.0 | Flute Length: 30 | Overall Length: 80 | Shank Diameter: 12
304-4777 SEM810200 YG-1 2F-20.0*20*45*100MM(SEM810200) | Spec: 20.0 | Flute Length: 45 | Overall Length: 100 | Shank d: 20
304-4810 SEM810050 YG-1 2F-5.0*6*13*55MM(SEM810050) | Spec: 5.0 | Flute Length: 13 | Overall Length: 55 | Shank Diameter: 6
304-4829 SEM81005020 YG-1 2F-5.0*6*20*55MM(SEM81005020) | Spec: 5.0 | Flute Length: 20 | Overall Length: 55 | Shank Diameter: 6
304-4838 SEM810060 YG-1 2F-6.0*6*15*60MM(SEM810060) | Spec: 6.0 | Flute Length: 15 | Overall Length: 60 | Shank Diameter: 6
304-4847 SEM810065 YG-1 2F-6.5*8*17*65MM(SEM810065) | Spec: 6.5 | Flute Length: 17 | Overall Length: 65 | Shank Diameter: 8
304-4856 SEM810070 YG-1 2F-7.0*8*18*65MM(SEM810070) | Spec: 7.0 | Flute Length: 18 | Overall Length: 65 | Shank Diameter: 8
304-5271 SEM810160 YG-1 2F-16.0*16*40*100MM(SEM810160) | Spec: 16.0 | Flute Length: 40 | Overall Length: 100 | Shank Diameter: 16
304-5563 SEM81006025 YG-1 2F-6.0*6*25*60MM(SEM81006025) | Spec: 6.0 | Flute Length: 25 | Overall Length: 60 | Shank Diameter: 6
304-5572 SEM81006020 YG-1 2F-6.0*6*20*60MM(SEM81006020) | Spec: 6.0 | Flute Length: 20 | Overall Length: 60 | Shank Diameter: 6
304-5615 SEM810110 YG-1 2F-11.0*12*28*75MM(SEM810110) | Spec: 11.0 | Flute Length: 28 | Overall Length: 75 | Shank Diameter: 12
304-5819 SEM810055 YG-1 2F-5.5*6*14*55MM(SEM810055) | Spec: 5.5 | Flute Length: 14 | Overall Length: 55 | Shank Diameter: 6
304-5828 SEM810085 YG-1 2F-8.5*10*21*70MM(SEM810085) | Spec: 8.5 | Flute Length: 21 | Overall Length: 70 | Shank d: 10
304-5837 SEM810095 YG-1 2F-9.5*10*24*70MM(SEM810095) | Spec: 9.5 | Flute Length: 24 | Overall Length: 70 | Shank D: 10
304-6021 SEM810105 YG-1 2F-10.5*12*26*75MM(SEM810105) | Spec: 10.5 | Flute Length: 26 | Overall Length: 75 | Shank d: 12
304-6456 SEM810150 YG-1 2F-15.0*16*38*90MM(SEM810150) | Spec: 15.0 | Flute Length: 38 | Overall Length: 90 | Shank Diameter: 16
304-7428 SEM810100 YG-1 2F-10.0*10*25*75MM(SEM810100) | Spec: 10.0 | Flute Length: 25 | Overall Length: 75 | Shank Diameter: 10
304-7491 SEM810140 YG-1 2F-14.0*16*35*90MM(SEM810140) | Spec: 14.0 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 16
304-7729 SEM810090 YG-1 2F-9.0*10*23*70MM(SEM810090) | Spec: 9.0 | Flute Length: 23 | Overall Length: 70 | Shank Diameter: 10
304-7914 SEM810220 YG-1 2F-22.0*20*45*100MM(SEM810220) | Spec: 22.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 20
304-8083 SEM810080 YG-1 2F-8.0*8*20*70MM(SEM810080) | Spec: 8.0 | Flute Length: 20 | Overall Length: 70 | Shank Diameter: 8
304-8375 SEM810130 YG-1 2F-13.0*12*35*90MM(SEM810130) | Spec: 13.0 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 12
304-8579 SEM810075 YG-1 2F-7.5*8*19*65MM(SEM810075) | Spec: 7.5 | Flute Length: 19 | Overall Length: 65 | Shank Diameter: 8
304-8588 SEM810115 YG-1 2F-11.5*12*29*80MM(SEM810115) | Spec: 11.5 | Flute Length: 29 | Overall Length: 80 | Shank Diameter: 12
304-9107 SEM810180 YG-1 2F-18.0*16*45*100MM(SEM810180) | Spec: 18.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 16
305-3526 SEM81005010 YG-1 2F-5.0*6*10*55MM(SEM81005010) | Spec: 5.0 | Flute Length: 10 | Overall Length: 55 | Shank Diameter: 6
305-3535 SEM81006012 YG-1 2F-6.0*6*12*60MM(SEM81006012) | Spec: 6.0 | Flute Length: 12 | Overall Length: 60 | Shank Diameter: 6
305-3544 SEM81008016 YG-1 2F-8.0*8*16*70MM(SEM81008016) | Spec: 8.0 | Flute Length: 16 | Overall Length: 70 | Shank Diameter: 8
305-3553 SEM81008025 YG-1 2F-8.0*8*25*70MM(SEM81008025) | Spec: 8.0 | Flute Length: 25 | Overall Length: 70 | Shank d: 8
305-3562 SEM81008032 YG-1 2F-8.0*8*32*70MM(SEM81008032) | Spec: 8.0 | Flute Length: 32 | Overall Length: 70 | Shank Diameter: 8
305-3580 SEM81010022 YG-1 2F-10.0*10*22*75MM(SEM81010022) | Spec: 10.0 | Flute Length: 22 | Overall Length: 75 | Shank Diameter: 10
305-3599 SEM81010030 YG-1 2F-10.0*10*30*75MM(SEM81010030) | Spec: 10.0 | Flute Length: 30 | Overall Length: 75 | Shank Diameter: 10
305-3605 SEM81010035 YG-1 2F-10.0*10*35*75MM(SEM81010035) | Spec: 10.0 | Flute Length: 35 | Overall Length: 75 | Shank Diameter: 10
305-3614 SEM81012026 YG-1 2F-12.0*12*26*80MM(SEM81012026) | Spec: 12.0 | Flute Length: 26 | Overall Length: 80 | Shank Diameter: 12
305-3623 SEM81012035 YG-1 2F-12.0*12*35*80MM(SEM81012035) | Spec: 12.0 | Flute Length: 35 | Overall Length: 80 | Shank Diameter: 12
305-3632 SEM81012040 YG-1 2F-12.0*12*40*80MM(SEM81012040) | Spec: 12.0 | Flute Length: 40 | Overall Length: 80 | Shank d: 12
305-3641 SEM81014012S YG-1 2F-14.0*12*35*90MM(SEM81014012S) | Spec: 14.0 | Flute Length: 35 | Overall Length: 90 | Shank Diameter: 12
305-3650 SEM81016032 YG-1 2F-16.0*16*32*100MM(SEM81016032) | Spec: 16.0 | Flute Length: 32 | Overall Length: 100 | Shank d: 16
305-3669 SEM810170 YG-1 2F-17.0*16*43*100MM(SEM810170) | Spec: 17.0 | Flute Length: 43 | Overall Length: 100 | Shank Diameter: 16
305-3678 SEM81018018S YG-1 2F-18.0*18*45*100MM(SEM81018018S) | Spec: 18.0 | Flute Length: 45 | Overall Length: 100 | Shank d: 18
305-3687 SEM810190 YG-1 2F-19.0*20*45*100MM(SEM810190) | Spec: 19.0 | Flute Length: 45 | Overall Length: 100 | Shank Diameter: 20
305-3696 SEM81020040 YG-1 2F-20.0*20*40*100MM(SEM81020040) | Spec: 20.0 | Flute Length: 40 | Overall Length: 100 | Shank Diameter: 20
305-3702 SEM810210 YG-1 2F-21.0*20*45*100MM(SEM810210) | Spec: 21.0 | Flute Length: 45 | Overall Length: 100 | Shank d: 20
305-3711 SEM810230 YG-1 2F-23.0*25*50*120MM(SEM810230) | Spec: 23.0 | Flute Length: 50 | Overall Length: 120 | Shank Diameter: 25
305-3720 SEM810240 YG-1 2F-24.0*25*50*120MM(SEM810240) | Spec: 24.0 | Flute Length: 50 | Overall Length: 120 | Shank d: 25
305-3739 SEM810250 YG-1 2F-25.0*25*50*120MM(SEM810250) | Spec: 25.0 | Flute Length: 50 | Overall Length: 120 | Shank Diameter: 25
305-3775 SEM81005015 YG-1 2F-5.0*6*15*55MM(SEM81005015) | Spec: 5.0 | Flute Length: 15 | Overall Length: 55 | Shank d: 6
