[OSG] — 80703K End Mill
End Mills OSG

[OSG] — 80703K End Mill

Family ID: 311-1237

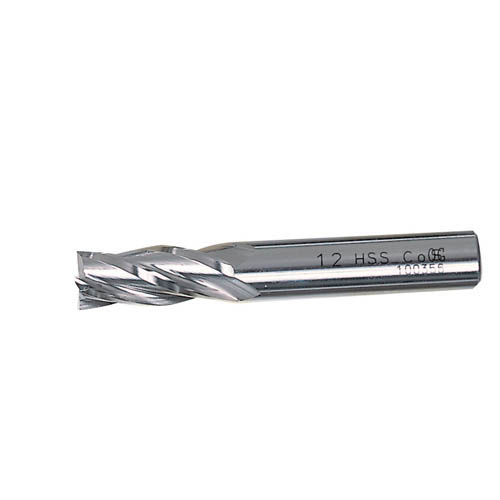

OSG 80703K End Mill is a precision cutting tool designed for milling operations, sourced direct from Korea. End mills like this are widely used in metalworking and machining centers to profile, slot, pocket, and contour workpieces across a range of materials including steel, aluminum, and alloys. Request a quote today for export-ready supply at competitive pricing through a KITA-registered Korean exporter.

46 product codes available in this family

RFQ Cart (0)

Product Codes & Specifications

Product Code Description Brand Spec
311-1237 80703K OSG 4F-2MM(EMS)(80703K) | Spec: 2 | Flute Length: 6 | Number of Flutes: 4F | Overall Length: 55 | Shank Diameter: 6
311-1246 80705K OSG 4F-2.5MM(EMS)(80705K) | Spec: 2.5 | Flute Length: 7(10) | Number of Flutes: 4F | Overall Length: 55(50) | Shank d: 6
311-1255 80706K OSG 4F-3MM(EMS)(80706K) | Spec: 3 | Flute Length: 10(10) | Flute Count: 4F | Overall Length: 55(50) | Shank Diameter: 6
311-1264 80707K OSG 4F-3.5MM(EMS)(80707K) | Spec: 3.5 | Flute Length: 12 | Number of Flutes: 4F | Overall Length: 60 | Shank Diameter: 8
311-1273 80708K OSG 4F-4MM(EMS)(80708K) | Spec: 4 | Flute Length: 12 | Flute Count: 4F | Overall Length: 60 | Shank Diameter: 8
311-1282 80709K OSG 4F-4.5MM(EMS)(80709K) | Spec: 4.5 | Flute Length: 15 | Flutes: 4F | Overall Length: 65(60) | Shank d: 8
311-1291 80710K OSG 4F-5MM(EMS)(80710K) | Spec: 5 | Flute Length: 15 | Flutes: 4F | Overall Length: 65(60) | Shank Diameter: 8
311-1307 80711K OSG 4F-5.5MM(EMS)(80711K) | Spec: 5.5 | Flute Length: 15 | Number of Flutes: 4F | Overall Length: 65(60) | Shank Diameter: 8
311-1316 80712K OSG 4F-6MM(EMS)(80712K) | Spec: 6 | Flute Length: 15 | Flutes: 4F | Overall Length: 65(60) | Shank Diameter: 8
311-1325 80713K OSG 4F-6.5MM(EMS)(80713K) | Spec: 6.5 | Flute Length: 20 | Number of Flutes: 4F | Overall Length: 75(60) | Shank Diameter: 10
311-1334 80714K OSG 4F-7MM(EMS)(80714K) | Spec: 7 | Flute Length: 20 | Number of Flutes: 4F | Overall Length: 75(60) | Shank Diameter: 10
311-1343 80715K OSG 4F-7.5MM(EMS)(80715K) | Spec: 7.5 | Flute Length: 20 | Number of Flutes: 4F | Overall Length: 75(60) | Shank Diameter: 10
311-1352 80716K OSG 4F-8MM(EMS)(80716K) | Spec: 8 | Flute Length: 20 | Flute Count: 4F | Overall Length: 75(60) | Shank Diameter: 10
311-1361 80717K OSG 4F-8.5MM(EMS)(80717K) | Spec: 8.5 | Flute Length: 25 | Number of Flutes: 4F | Overall Length: 80(70) | Shank Diameter: 10
311-1370 80718K OSG 4F-9MM(EMS)(80718K) | Spec: 9 | Flute Length: 25 | Flutes: 4F | Overall Length: 80(70) | Shank d: 10
311-1389 80719K OSG 4F-9.5MM(EMS)(80719K) | Spec: 9.5 | Flute Length: 25 | Number of Flutes: 4F | Overall Length: 80(70) | Shank Diameter: 10
311-1398 80720K OSG 4F-10MM(EMS)(80720K) | Spec: 10 | Flute Length: 25 | Number of Flutes: 4F | Overall Length: 80(70) | Shank Diameter: 10
311-1413 80721K OSG 4F-11MM(EMS)(80721K) | Spec: 11 | Flute Length: 30 | Number of Flutes: 4F | Overall Length: 90(80) | Shank Diameter: 12
311-1431 80722K OSG 4F-12MM(EMS)(80722K) | Spec: 12 | Flute Length: 30 | Flute Count: 4F | Overall Length: 90(80) | Shank Diameter: 12
311-1459 80723K OSG 4F-13MM(EMS)(80723K) | Spec: 13 | Flute Length: 35 | Flute Count: 4F | Overall Length: 95(85) | Shank d: 12
311-1477 80724K OSG 4F-14MM(EMS)(80724K) | Spec: 14 | Flute Length: 35 | Number of Flutes: 4F | Overall Length: 100(90) | Shank Diameter: 16
311-1486 80725K OSG 4F-15MM(EMS)(80725K) | Spec: 15 | Flute Length: 40 | Number of Flutes: 4F | Overall Length: 105(95) | Shank Diameter: 16
311-1495 80726K OSG 4F-16MM(EMS)(80726K) | Spec: 16 | Flute Length: 40 | Number of Flutes: 4F | Overall Length: 105(95) | Shank Diameter: 16
311-1501 80727K OSG 4F-17MM(EMS)(80727K) | Spec: 17 | Flute Length: 40 | Number of Flutes: 4F | Overall Length: 105(95) | Shank Diameter: 16
311-1510 80728K OSG 4F-18MM(EMS)(80728K) | Spec: 18 | Flute Length: 40 | Flute Count: 4F | Overall Length: 105(95) | Shank Diameter: 16
311-1529 80729K OSG 4F-19MM(EMS)(80729K) | Spec: 19 | Flute Length: 45 | Number of Flutes: 4F | Overall Length: 115(110) | Shank Diameter: 20
311-1538 80730K OSG 4F-20MM(EMS)(80730K) | Spec: 20 | Flute Length: 45 | Flutes: 4F | Overall Length: 115(110) | Shank Diameter: 20
311-1547 80731K OSG 4F-21MM(EMS)(80731K) | Spec: 21 | Flute Length: 45 | Flute Count: 4F | Overall Length: 115(110) | Shank Diameter: 20
311-1556 80732K OSG 4F-22MM(EMS)(80732K) | Spec: 22 | Flute Length: 45 | Flutes: 4F | Overall Length: 115(110) | Shank Diameter: 20
311-1565 80733K OSG 4F-23MM(EMS)(80733K) | Spec: 23 | Flute Length: 50 | Number of Flutes: 4F | Overall Length: 125(120) | Shank Diameter: 25
311-1574 80734K OSG 4F-24MM(EMS)(80734K) | Spec: 24 | Flute Length: 50 | Flute Count: 4F | Overall Length: 125(120) | Shank Diameter: 25
311-1583 80735K OSG 4F-25MM(EMS)(80735K) | Spec: 25 | Flute Length: 50 | Number of Flutes: 4F | Overall Length: 125(120) | Shank Diameter: 25
311-1592 80736K OSG 4F-26MM(EMS)(80736K) | Spec: 26 | Flute Length: 50 | Flute Count: 4F | Overall Length: 125(120) | Shank Diameter: 25
311-1608 80737K OSG 4F-27MM(EMS)(80737K) | Spec: 27 | Flute Length: 55 | Flute Count: 4F | Overall Length: 125 | Shank Diameter: 25
311-1617 80738K OSG 4F-28MM(EMS)(80738K) | Spec: 28 | Flute Length: 55 | Number of Flutes: 4F | Overall Length: 125 | Shank Diameter: 25
311-1635 80740K OSG 4F-30MM(EMS)(80740K) | Spec: 30 | Flute Length: 55 | Number of Flutes: 4F | Overall Length: 125 | Shank d: 25
311-1644 80741K OSG 4F-31MM(EMS)(80741K) | Spec: 31 | Flute Length: 60 | Number of Flutes: 4F | Overall Length: 145 | Shank Diameter: 32
311-1653 80742K OSG 4F-32MM(EMS)(80742K) | Spec: 32 | Flute Length: 60 | Number of Flutes: 4F | Overall Length: 145 | Shank Diameter: 32
311-1662 80743K OSG 4F-33MM(EMS)(80743K) | Spec: 33 | Flute Length: 60 | Number of Flutes: 4F | Overall Length: 145 | Shank Diameter: 32
311-1671 80744K OSG 4F-34MM(EMS)(80744K) | Spec: 34 | Flute Length: 60 | Number of Flutes: 4F | Overall Length: 145 | Shank Diameter: 32
311-1680 80745K OSG 4F-35MM(EMS)(80745K) | Spec: 35 | Flute Length: 60 | Number of Flutes: 4F | Overall Length: 145 | Shank Diameter: 32
311-1699 80746K OSG 4F-36MM(EMS)(80746K) | Spec: 36 | Flute Length: 65 | Flute Count: 4F | Overall Length: 150 | Shank Diameter: 32
311-1705 80747K OSG 4F-37MM(EMS)(80747K) | Spec: 37 | Flute Length: 65 | Number of Flutes: 4F | Overall Length: 150 | Shank Diameter: 32
311-1714 80748K OSG 4F-38MM(EMS)(80748K) | Spec: 38 | Flute Length: 65 | Number of Flutes: 4F | Overall Length: 150 | Shank Diameter: 32
311-1723 80749K OSG 4F-39MM(EMS)(80749K) | Spec: 39 | Flute Length: 65 | Number of Flutes: 4F | Overall Length: 150 | Shank Diameter: 32
311-1732 80750K OSG 4F-40MM(EMS)(80750K) | Spec: 40 | Flute Length: 65 | Flutes: 4F | Overall Length: 150 | Shank Diameter: 32
